Name: JDL36250U31X - Square D - Molded Case Circuit Breakers
Brand: Schneider Electric
SKU: JDL36250U31X
Price: 3295.99 CAD
Availability: InStock

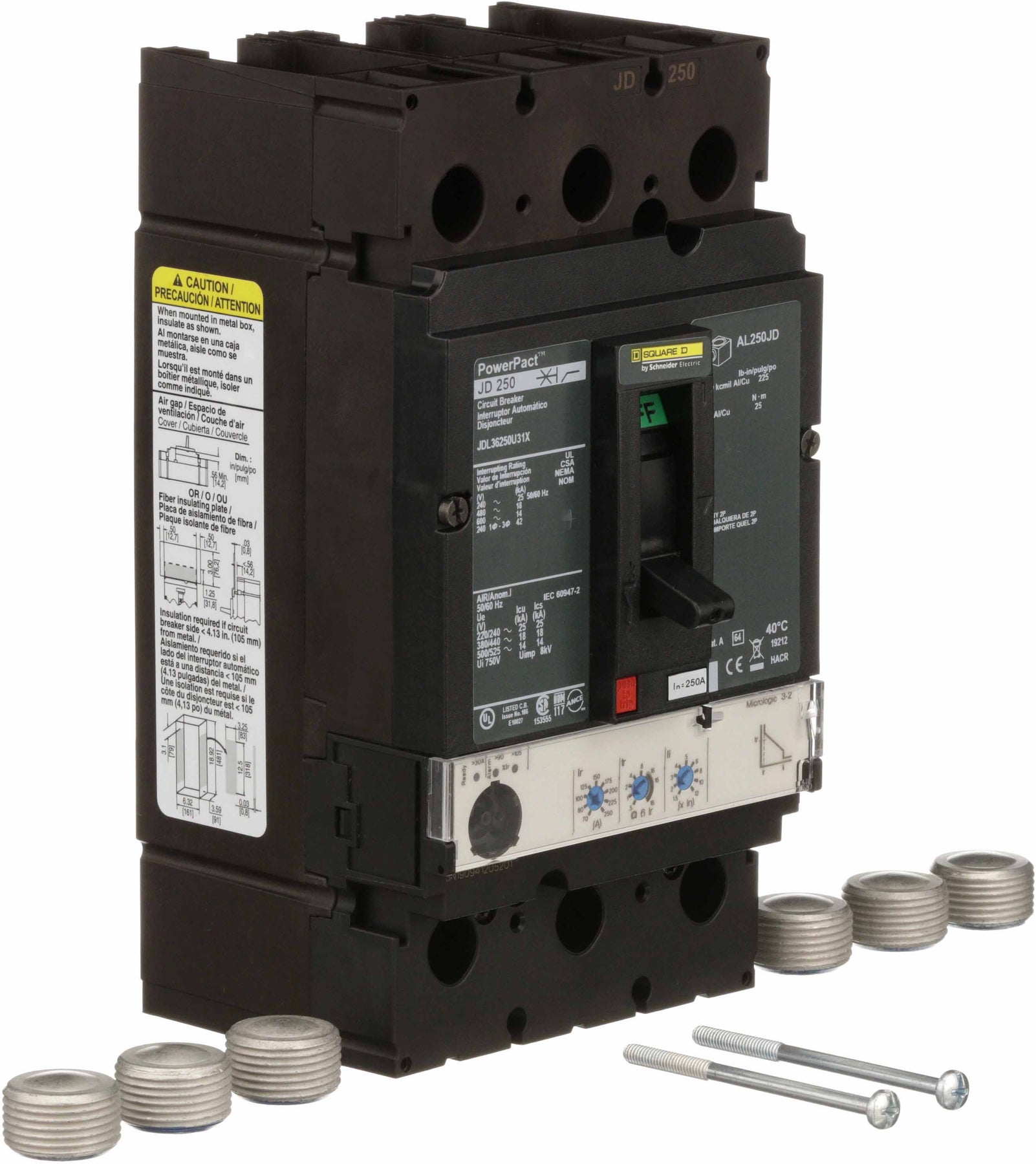

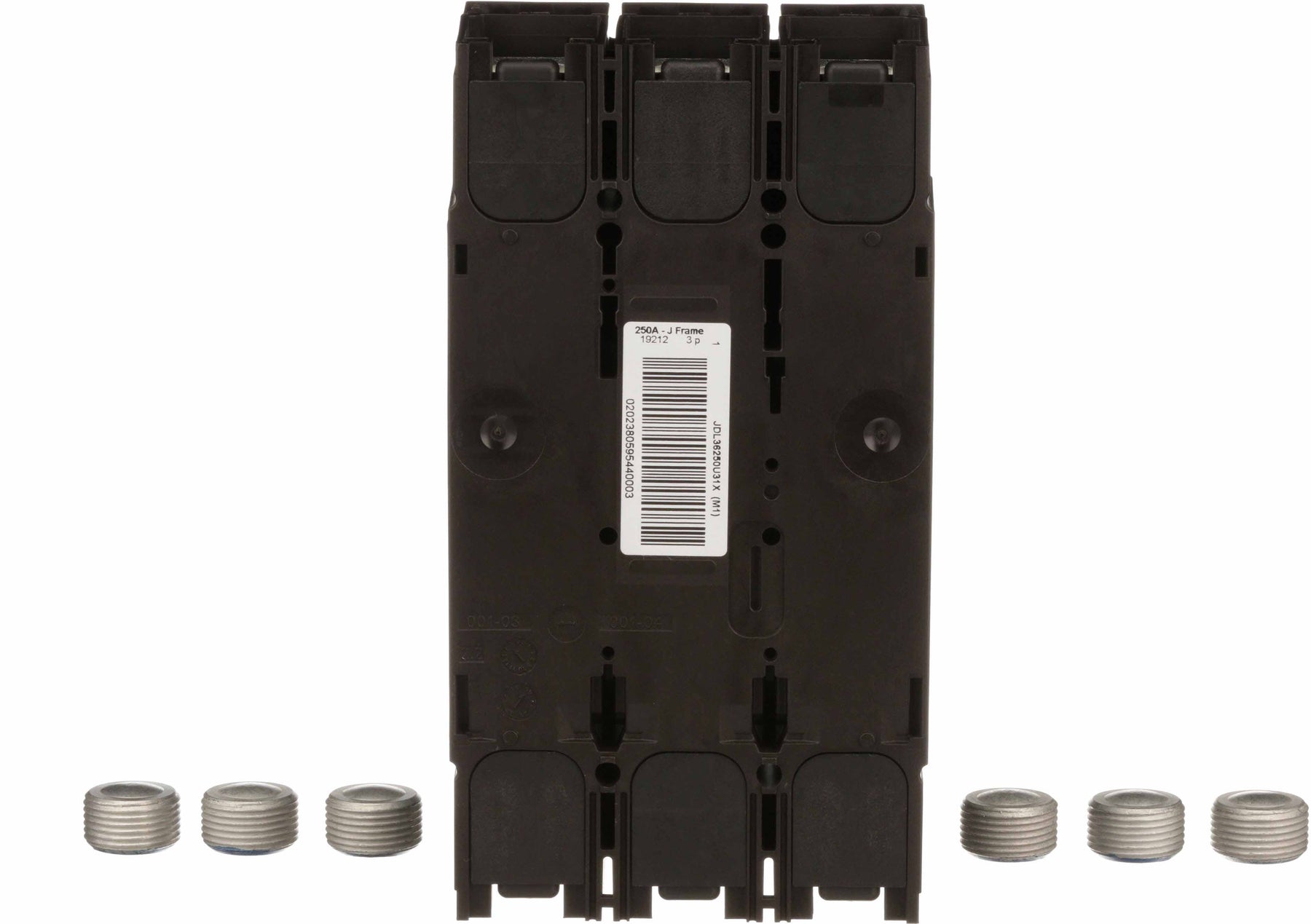

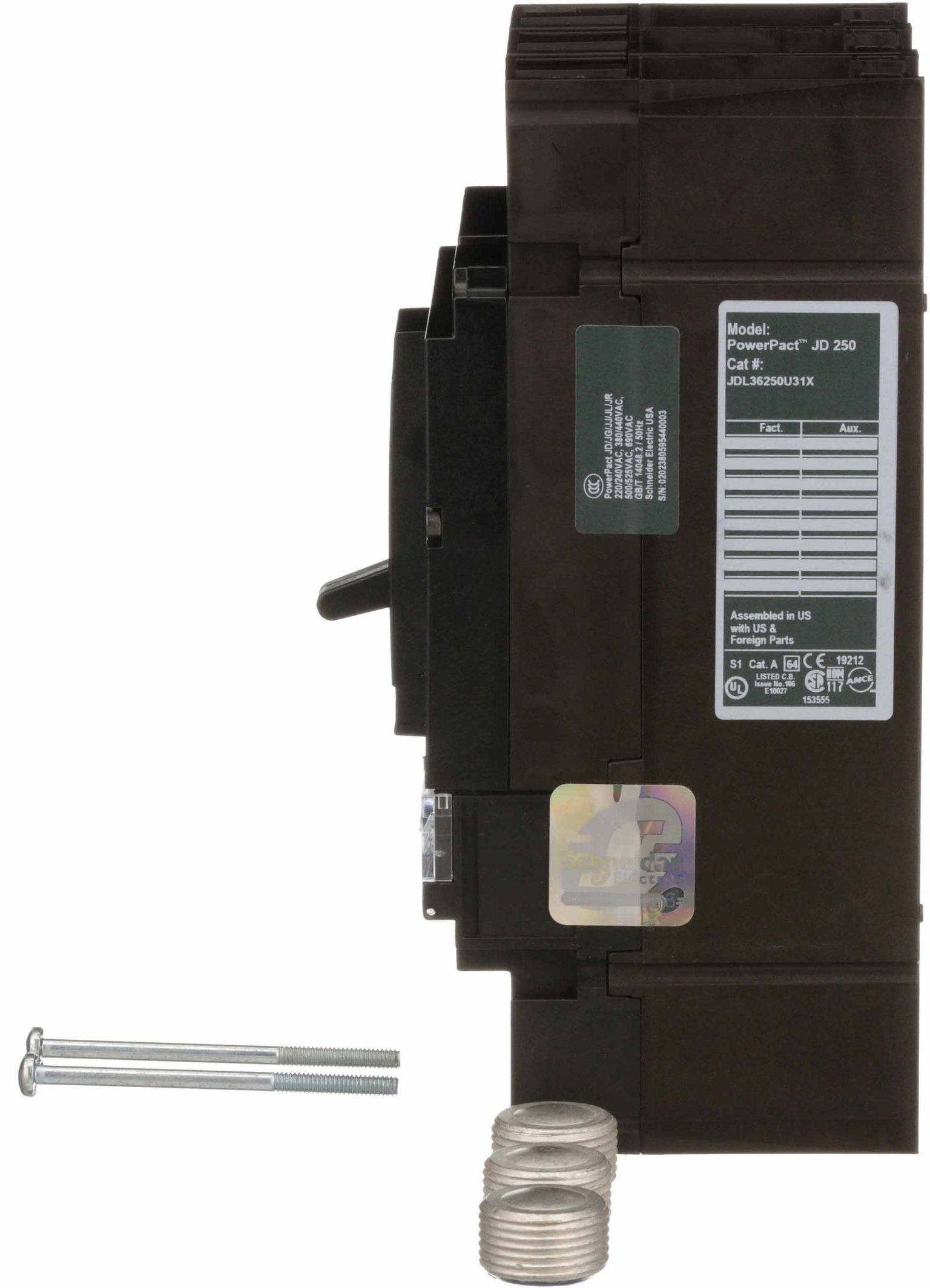

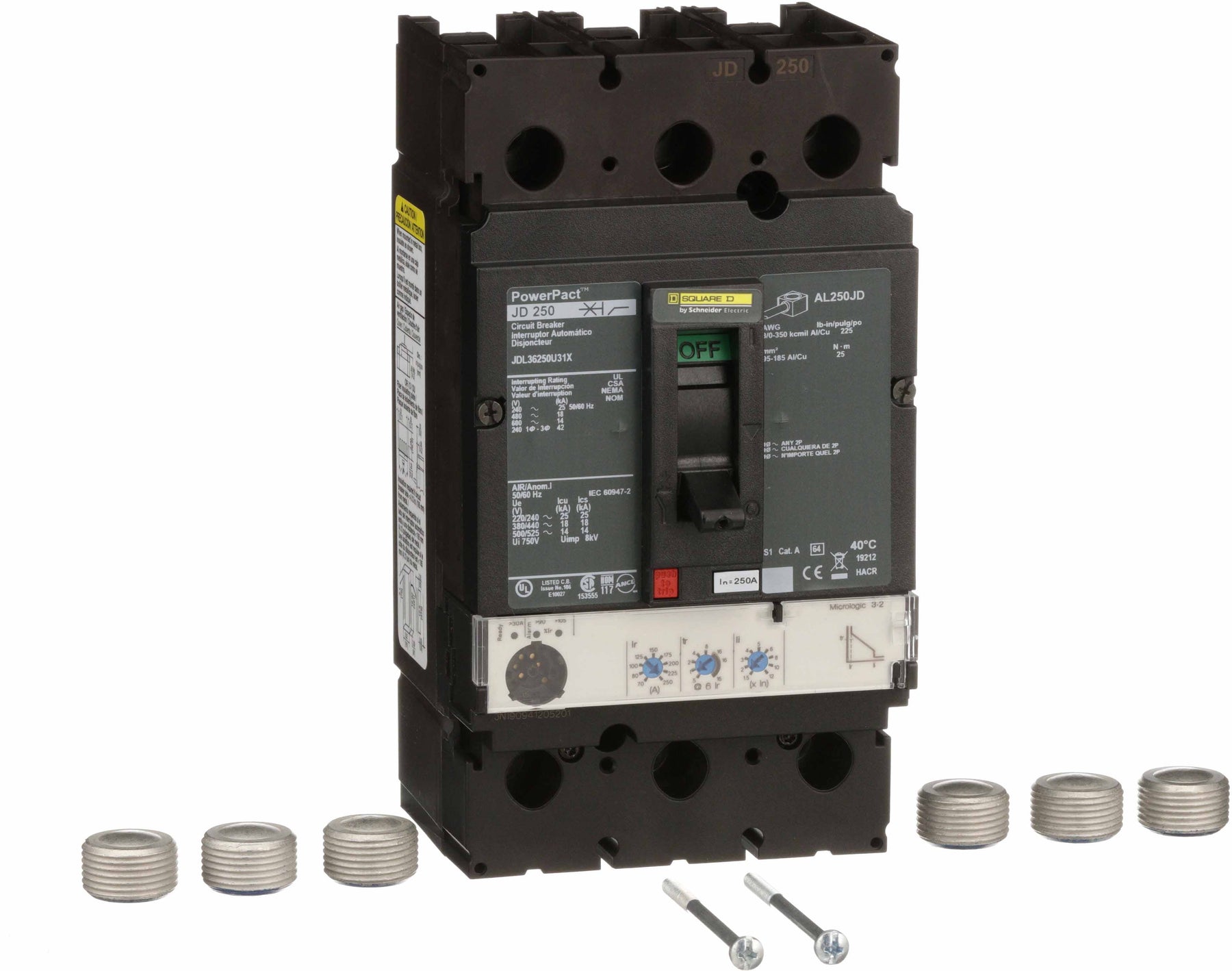

JDL36250U31X - Square D 250 Amp 3 Pole 600 Volt Molded Case Circuit Breaker

JDL36250U31X - Square D - Molded Case Circuit Breakers

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40513555693677,"title":"New","option1":"New","option2":null,"option3":null,"sku":"JDL36250U31X","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"JDL36250U31X - Square D - Molded Case Circuit Breakers - New","public_title":"New","options":["New"],"price":329599,"weight":2722,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901746072","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40755417448557,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"JDL36250U31X_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"JDL36250U31X - Square D - Molded Case Circuit Breakers - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":263699,"weight":2722,"compare_at_price":329599,"inventory_management":"shopify","barcode":"785901746072","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - JDL36250U31X - Square D - Molded Case Circuit Breakers

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - JDL36250U31X - Square D Molded Case Circuit Breakers

Part Number:

JDL36250U31X
Manufacturer:
Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

250
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

JDL
Functions:

LI - Long-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

18kA@480V

Dimensions

Dimensions (HxWxD):

7.52" x 4.09" x 3.39"

Weight:

5.29 lbs

Standards

Additional Details

Protection Type:

Short-Circuit / Overload
Trip Unit Technology:

Electronic, standard, MicroLogic 3.2, LI
Line Rated Current:

250 Amp
Mounting Mode:

Unit mount lug

Breaking Capacity Code

D
Electrical Connection:

Lugs line / Lugs load
Continuous Current Rating

80%
Control Type:

Toggle
AWG Gauge:

AWG 3/0...350 kcmil aluminium/copper terminals

Product Description - JDL36250U31X - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, 3P, 3PH, 250A, 600V, 18kA@480V, standard interrupting capacity, suitable for reverse fed applications, can be used for 2P applications, complete with micrologic standard non-interchangeable trip, line & load side lug terminals, solid state, Molded Case Circuit Breaker

Documentation

Catalogue

Installation Instructions

Technical Specifications

JDL36250U31X - Square D - Molded Case Circuit Breakers

Feed Thru - 250 Amp - 3 Pole - 600 Volt

JDL36250U31X - Square D - Molded Case Circuit Breakers

Feed Thru - 250 Amp - 3 Pole - 600 Volt
