EDB34060SA - Square D - Molded Case Circuit Breakers

Bolt On - 60 Amp - 3 Pole - 480 Volt

Schneider Electric SKU: EDB34060SA

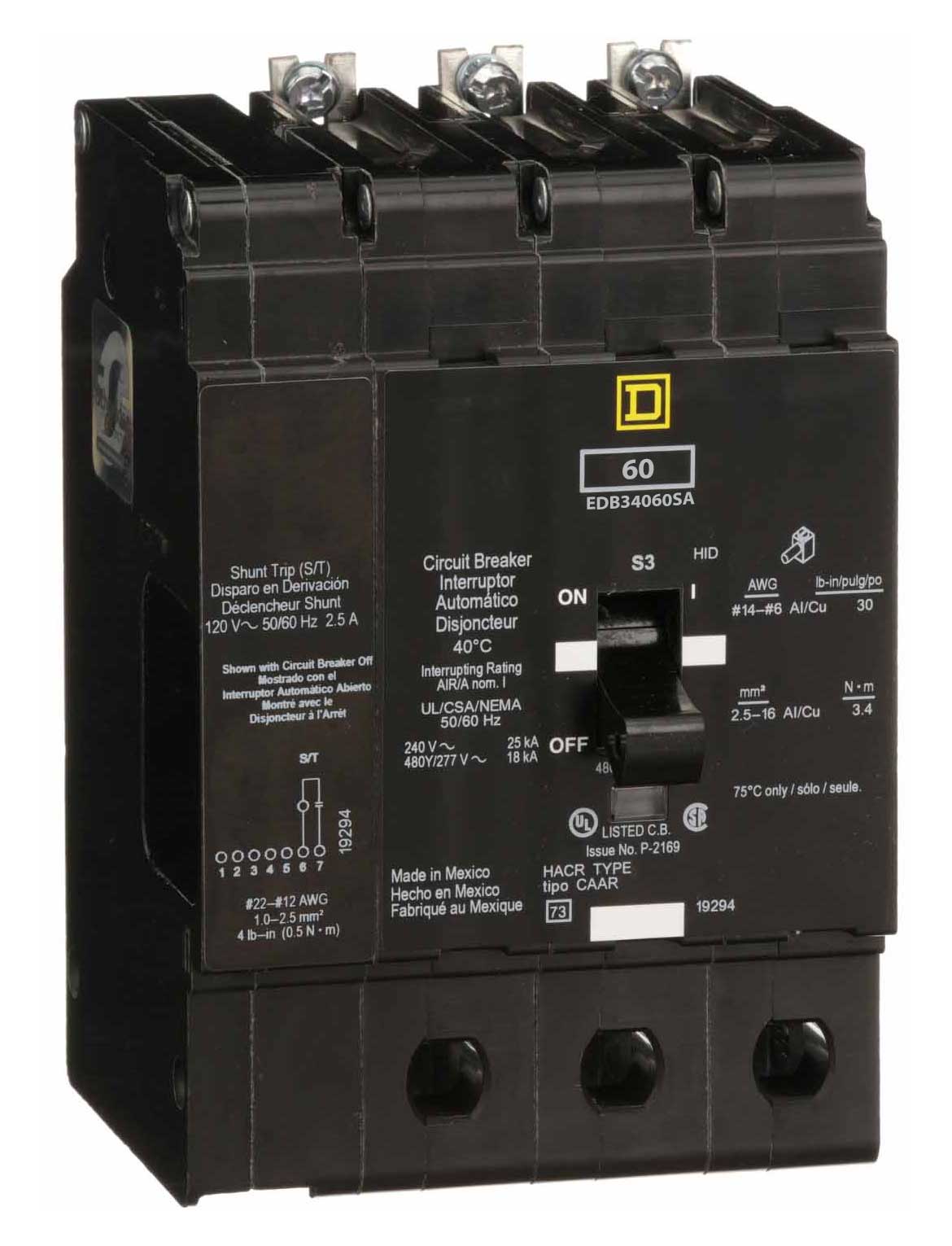

EDB34060SA - Square D 60 Amp 3 Pole 480 Volt Molded Case Circuit Breaker

Images are for reference only

EDB34060SA - Square D - Molded Case Circuit Breakers

Bolt On - 60 Amp - 3 Pole - 480 Volt

Schneider Electric SKU: EDB34060SA
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - EDB34060SA - Square D - Molded Case Circuit Breakers

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - EDB34060SA - Square D Molded Case Circuit Breakers

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Bolt-On

  • Type:

    EDB

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

    5.66" x 3.92" x 4.05"

  • Weight:

    4 lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Short-Circuit / Overload

  • Module Type:

    E-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    60 Amp

  • Maximum Operating Voltage:

    480Y/277 V AC

  • Mounting Mode:

    Bolt-on

  • Breaking Capacity Code

    D

  • Electrical Connection:

    Lugs aluminium

  • AWG Gauge:

    AWG 12...AWG 2/0 aluminium / AWG 14...AWG 2/0 copper

Product Description - EDB34060SA - Square D Molded Case Circuit Breakers

Square D / Schneider Electric, EDB Series, type EDB, 3P, 3PH, 60A, 18kA@480V, complete with 120V shunt trip, standard interrupting capacity, bolt-on, thermal magnetic

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Technical Specifications
