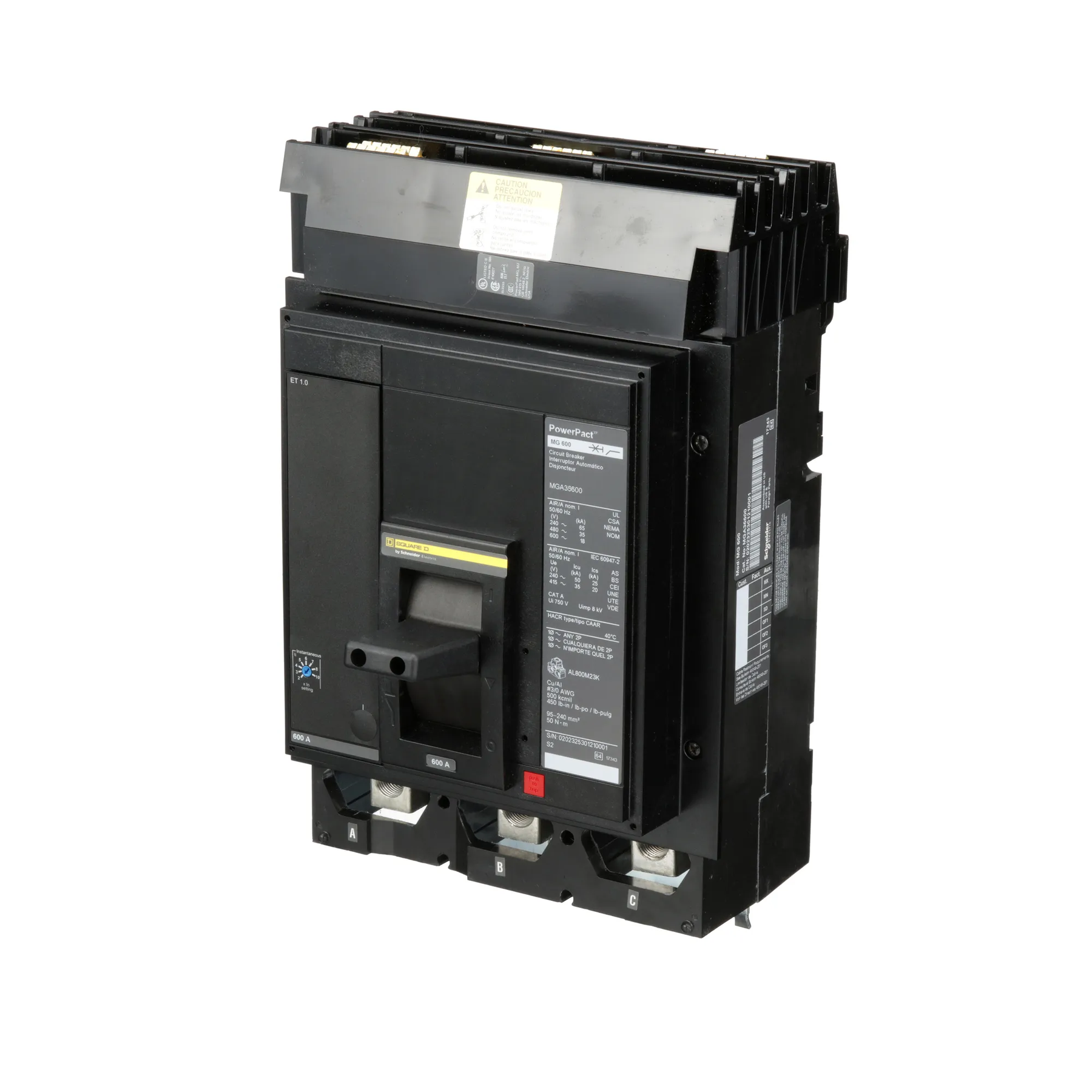

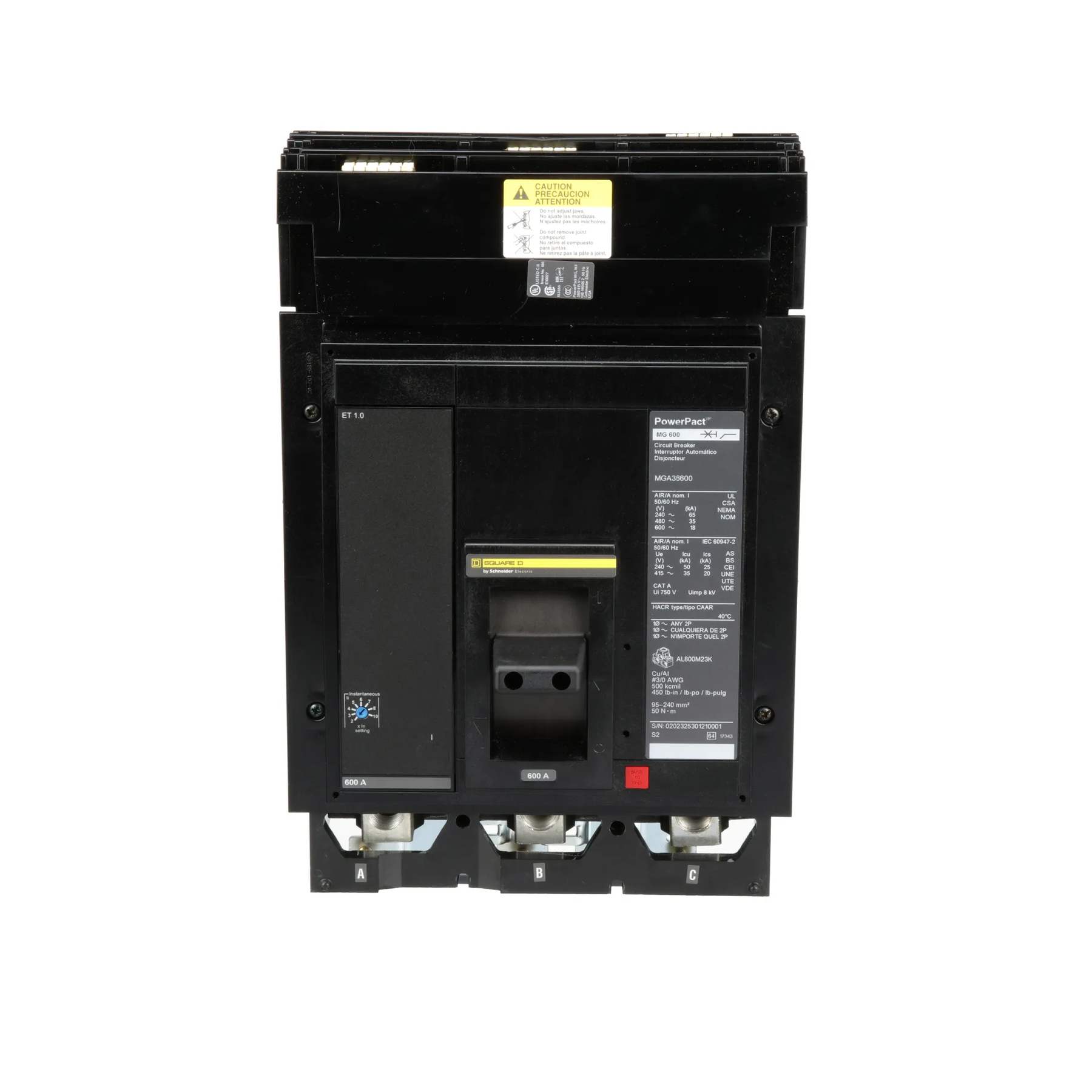

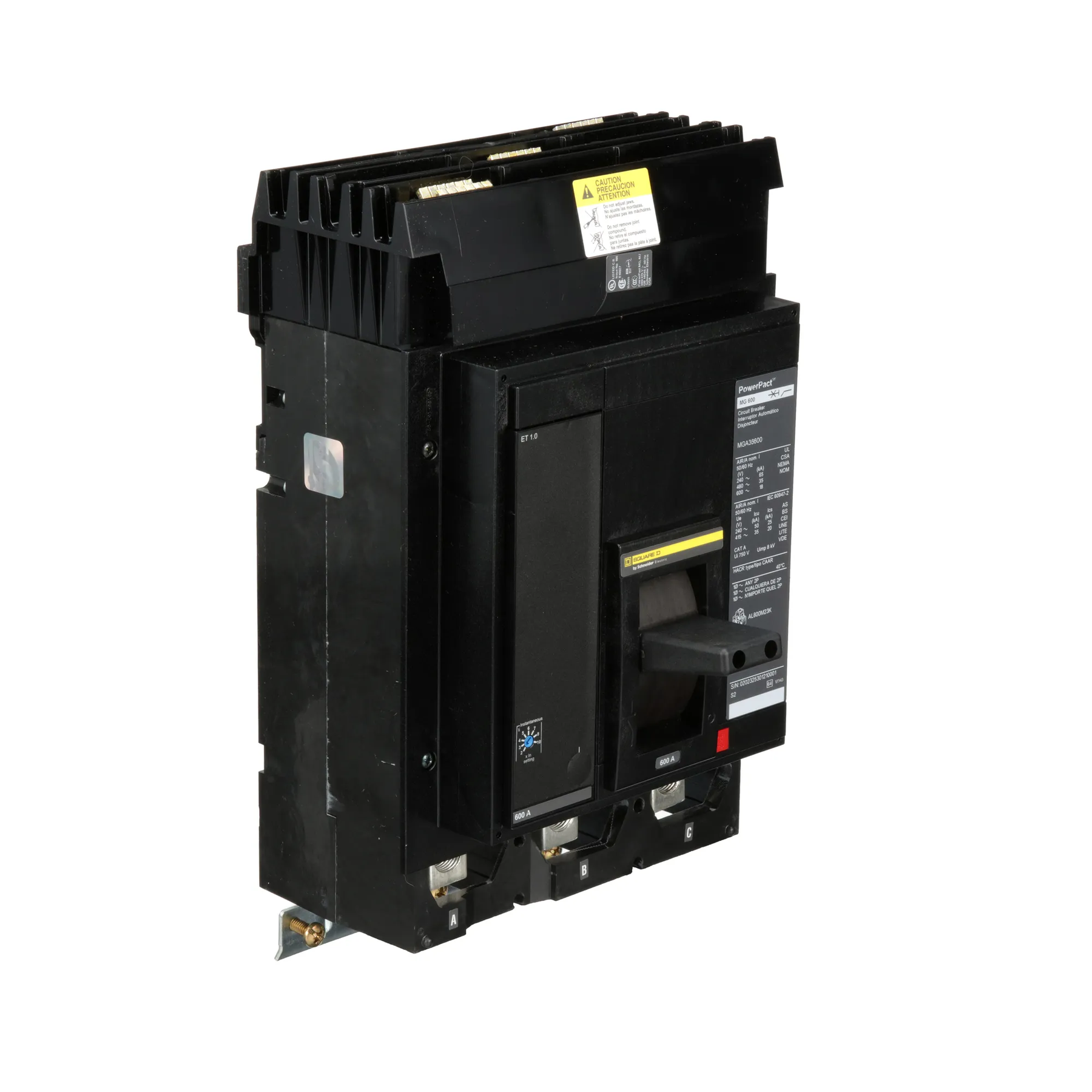

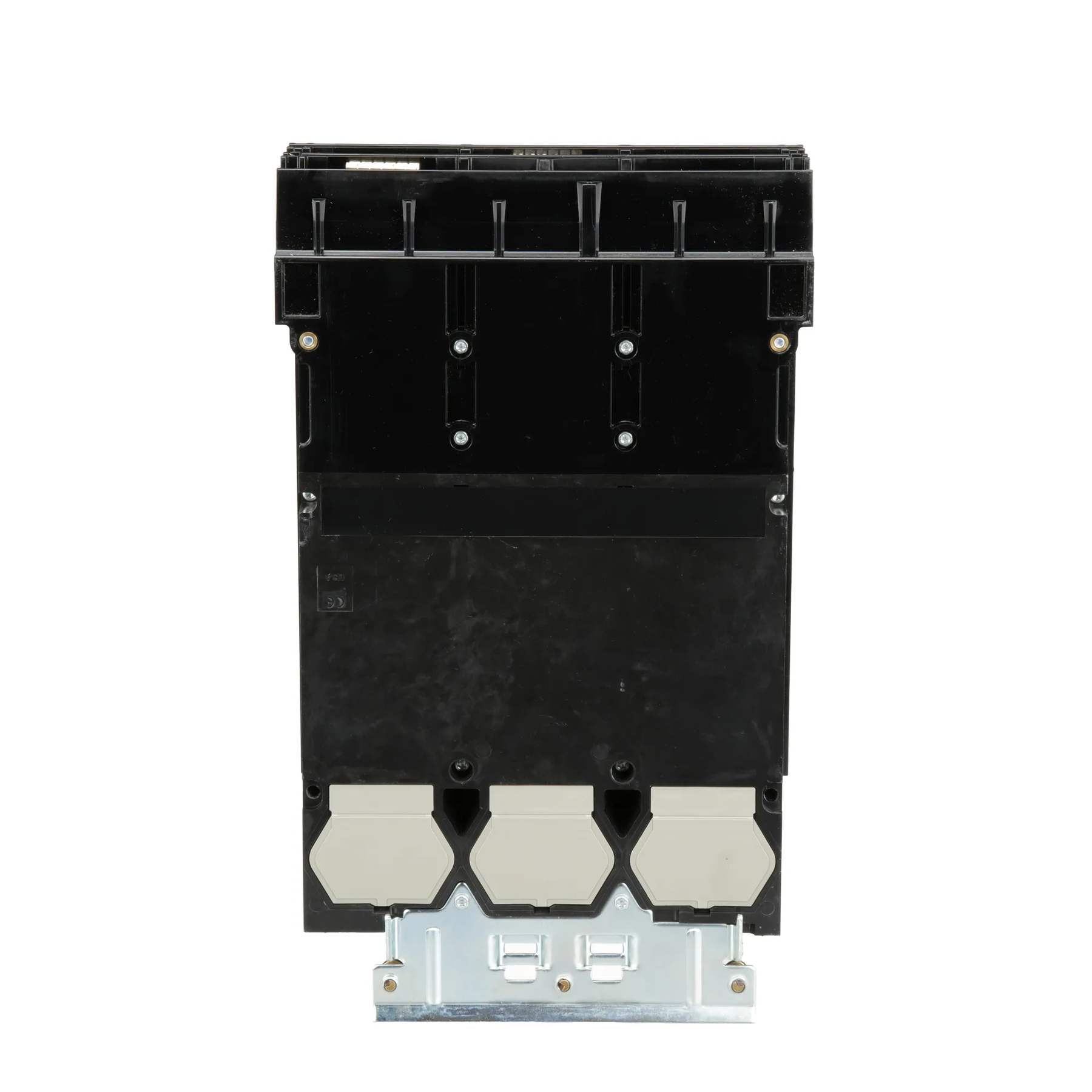

MGA36600 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 600 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: MGA36600
MGA36600 - Square D 600 Amp 3 Pole 600 Volt Molded Case Circuit Breaker
MGA36600 - Square D - Molded Case Circuit Breaker
MGA36600 - Square D - Molded Case Circuit Breaker
MGA36600 - Square D - Molded Case Circuit Breaker
MGA36600 - Square D - Molded Case Circuit Breaker
MGA36600 - Square D 600 Amp 3 Pole 600 Volt Molded Case Circuit Breaker

Images are for reference only

MGA36600 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 600 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: MGA36600
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - MGA36600 - Square D - Molded Case Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

Overview

Product Specifications - MGA36600 - Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    MGA

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Solid State

  • AIC Ratings:

    35kA@480V

Dimensions

  • Dimensions (HxWxD):

    12.86" x 0.32" x 8.27"

  • Weight:

    29 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    M-Frame

  • Trip Unit Technology:

    Electronic, basic, ET 1.0,

  • Line Rated Current:

    600 Amp

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code:

    G

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    3 x AWG 3/0...3 x 500 kcmil aluminium/copper

Product Description - MGA36600 - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type MGA, 3P, ABC phase connection, 3PH, 600A, 600V, 35kA@480V, UL listed, high interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, solid state, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Data Sheet


This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
JM
Very fast service. Ordered Friday, received Monday!

I ordered the wrong breaker! Very easily got a confirmation that I can returned it, get a refund and was able to order the correct one.

S
SecureType
right item, right price, prompt delivery!

right item, right price, prompt delivery!

C
Chromatic
Perfect match!

Works great, as described. Matches all of the other breakers in the panel. Easy installation and simply fits perfectly. (In the picture I am pointing to it with a screw driver)
