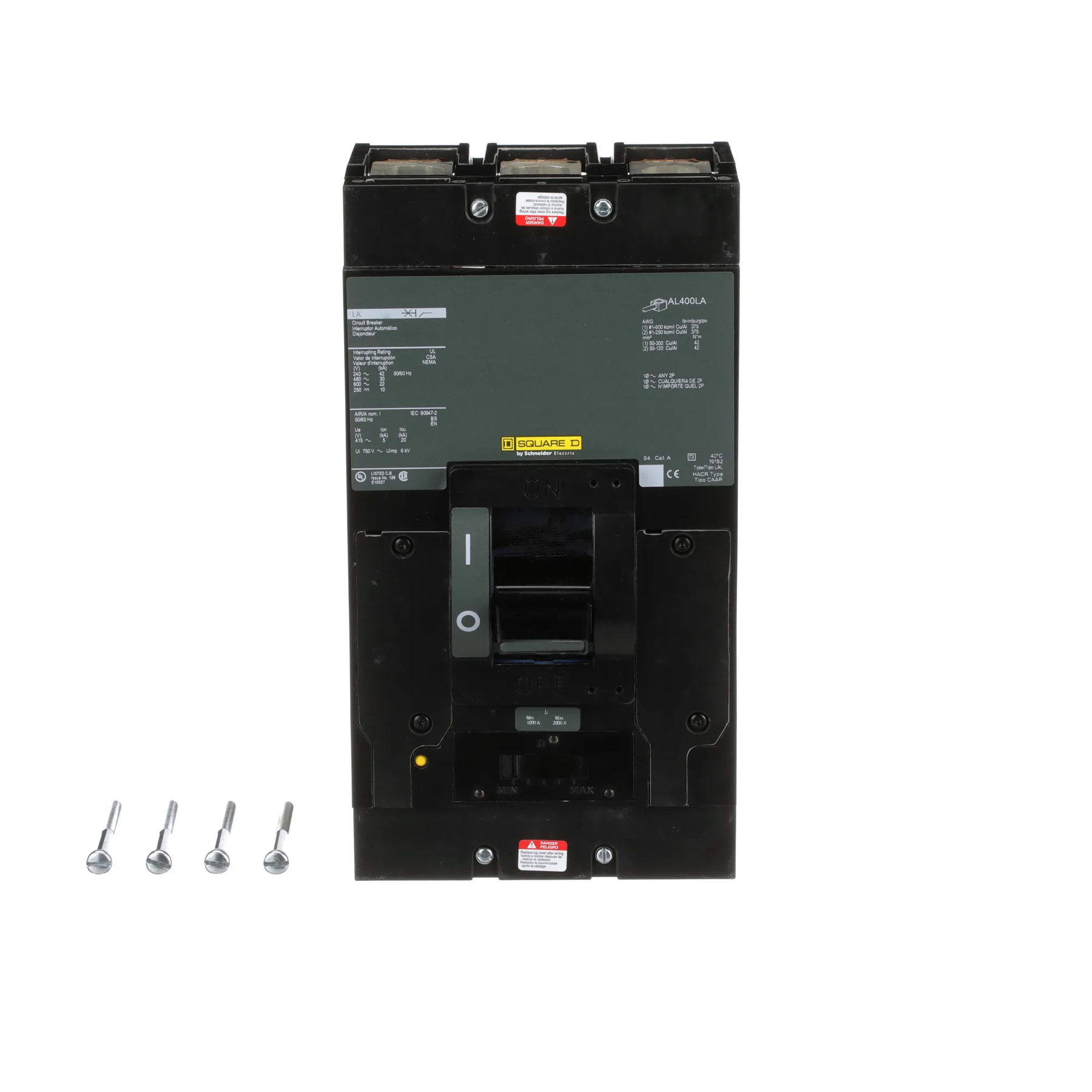

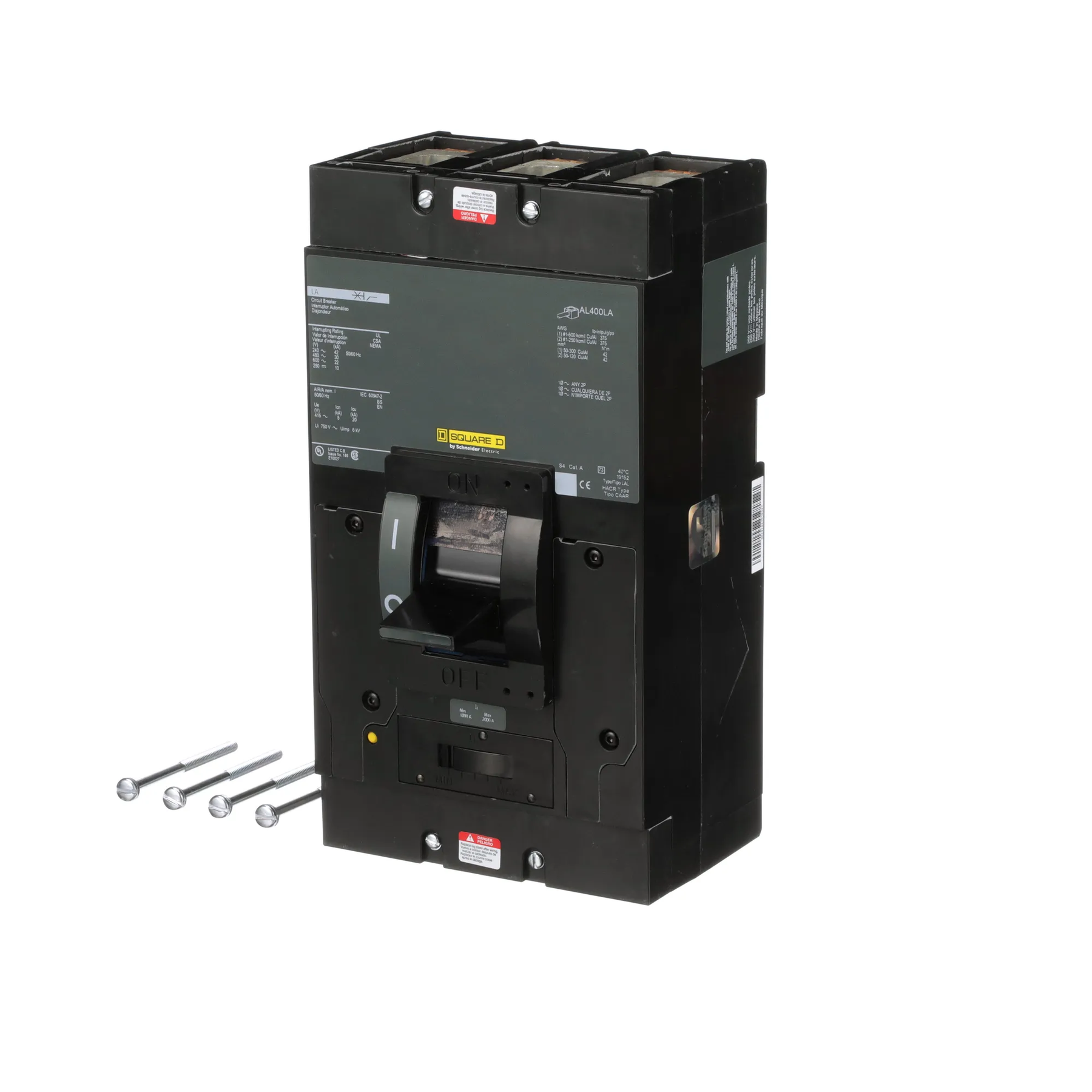

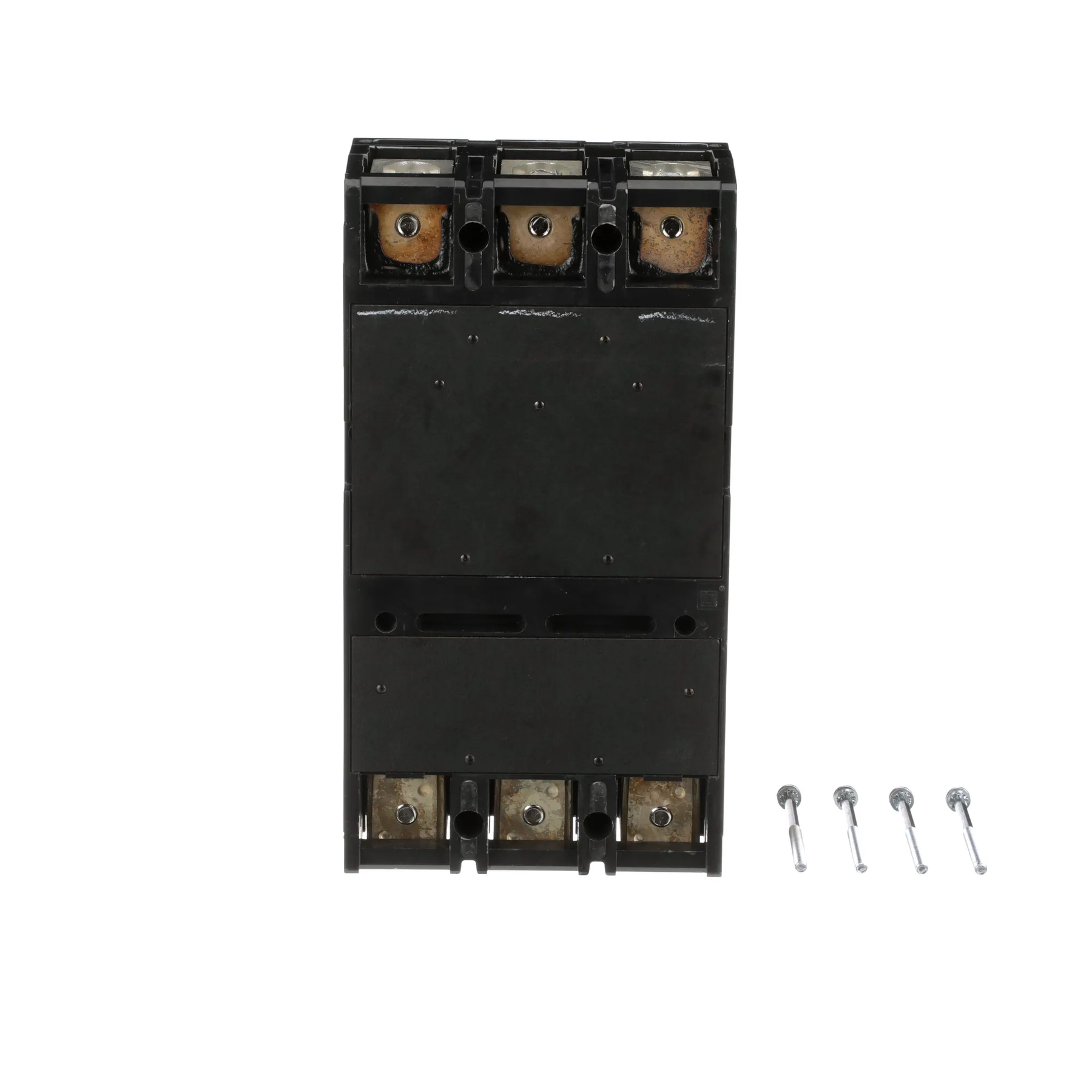

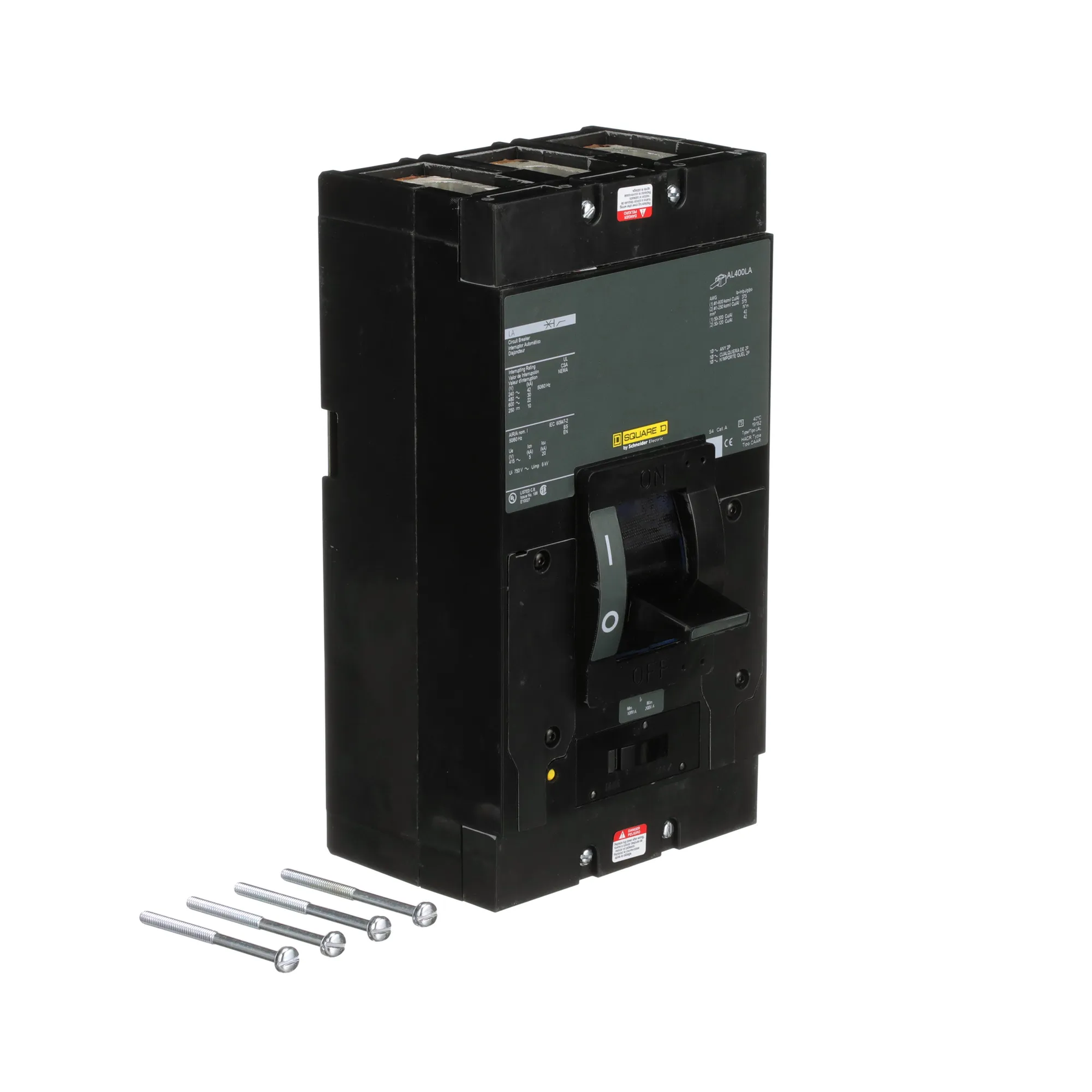

LAL36150 - Square D - Molded Case Circuit Breaker

Feed-Thru - 150 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: LAL36150
LAL36150 - Square D - Molded Case Circuit Breaker
LAL36150 - Square D - Molded Case Circuit Breaker
LAL36150 - Square D - Molded Case Circuit Breaker
LAL36150 - Square D - Molded Case Circuit Breaker
LAL36150 - Square D - Molded Case Circuit Breaker
LAL36150 - Square D - Molded Case Circuit Breaker

Images are for reference only

LAL36150 - Square D - Molded Case Circuit Breaker

Feed-Thru - 150 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: LAL36150
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - LAL36150 - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - LAL36150 - Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    LAL

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    30kA@480V

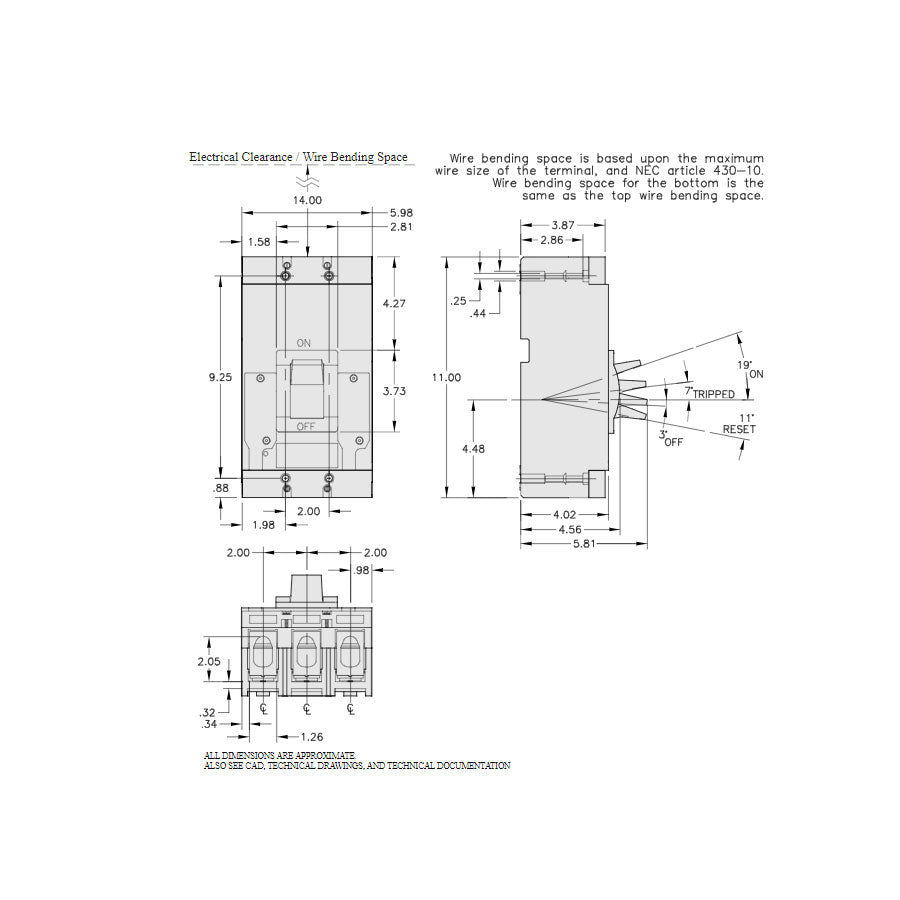

Dimensions

  • Dimensions (HxWxD):

    11" x 6" x 5.84"

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    J-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    150 Amp

  • Mounting Mode:

    Unit Mount

  • Electrical Connection:

    Lugs line / Lugs load

  • Magnetic Hold Current:

    750 Amp

Product Description - LAL36150 - Square D Powerpact Circuit Breaker

Square D, LAL Series, type LAL, 3P, 3PH, 150A, 600V, 30kA@480V, standard interrupting capacity, feed-thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications

PDF Icon Installation Instructions
