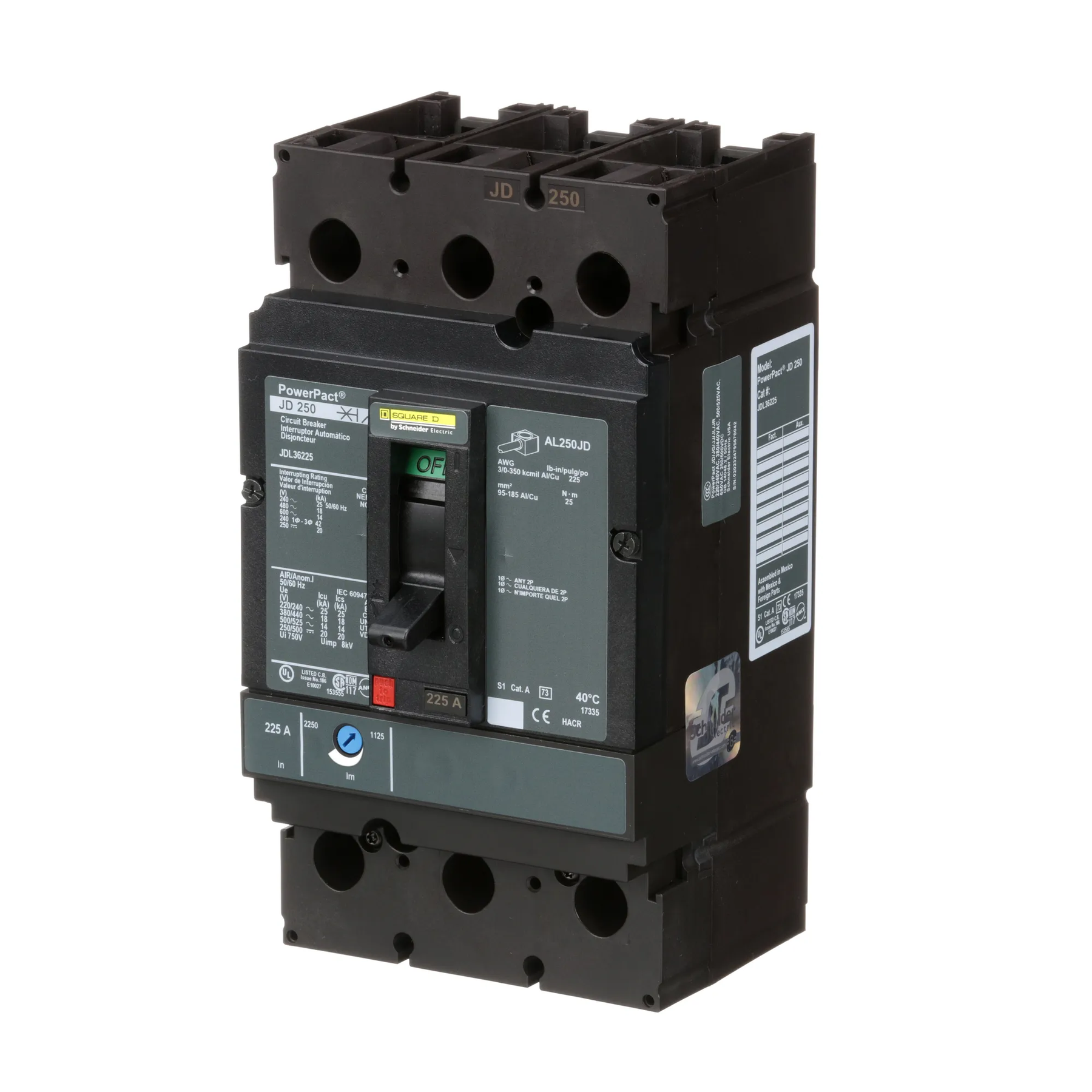

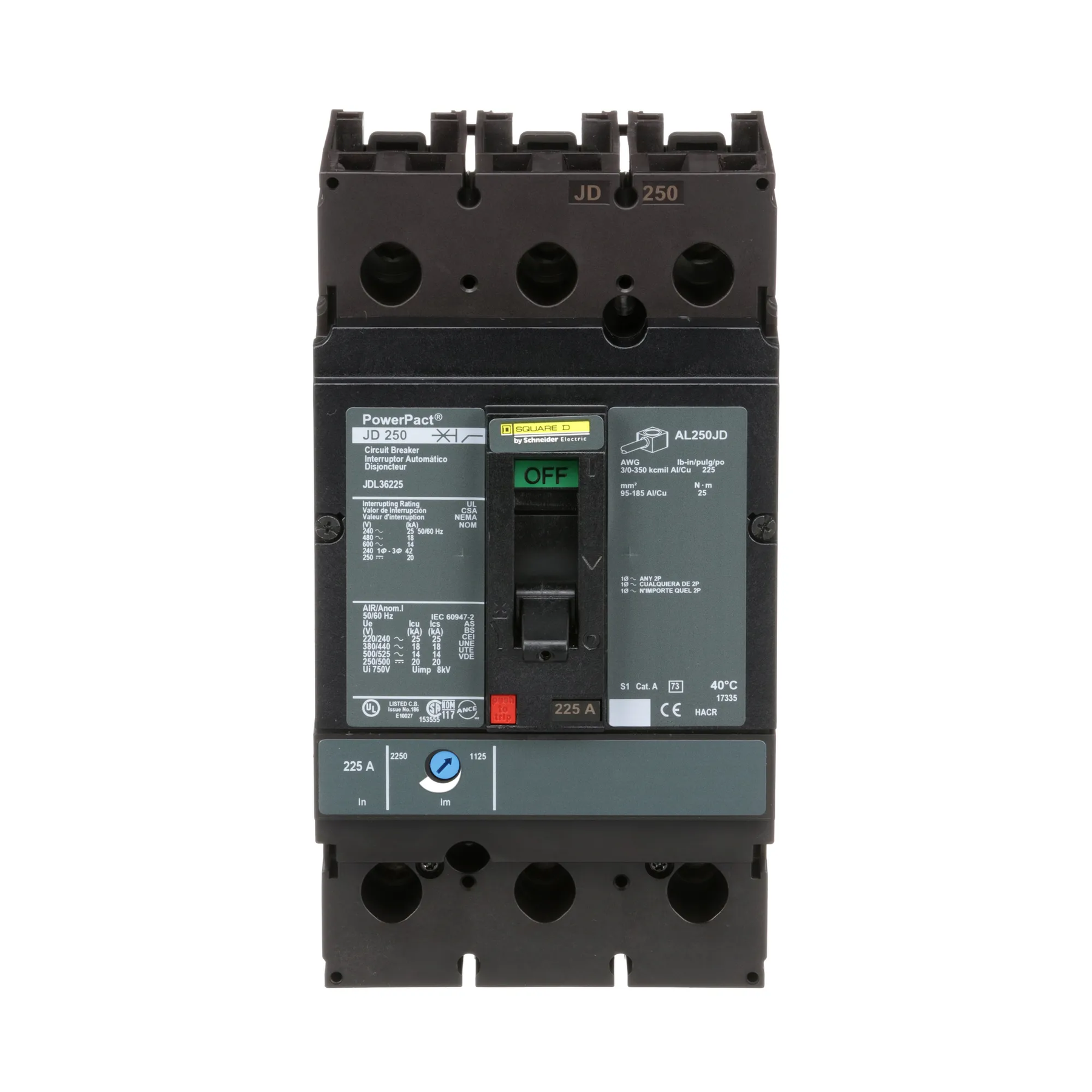

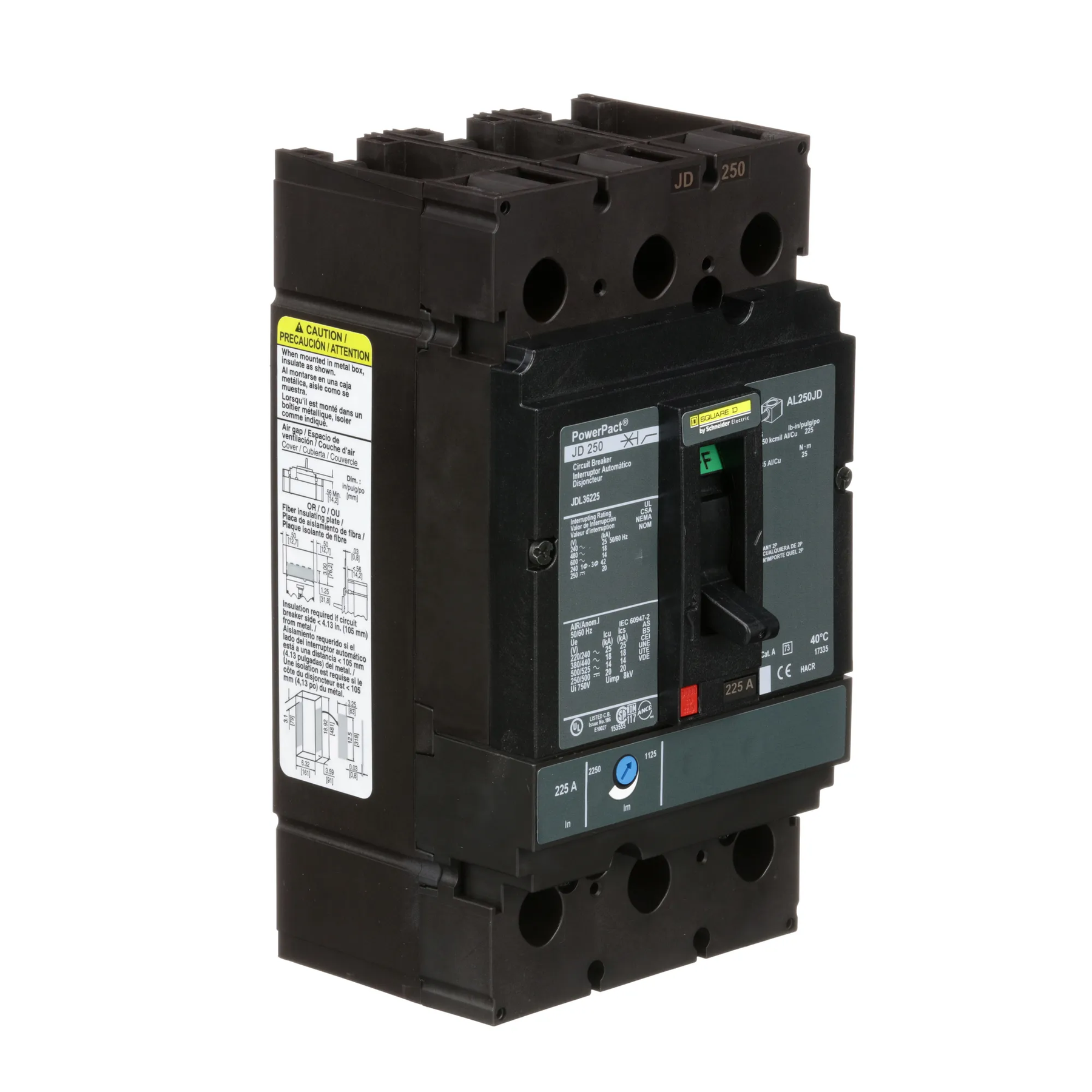

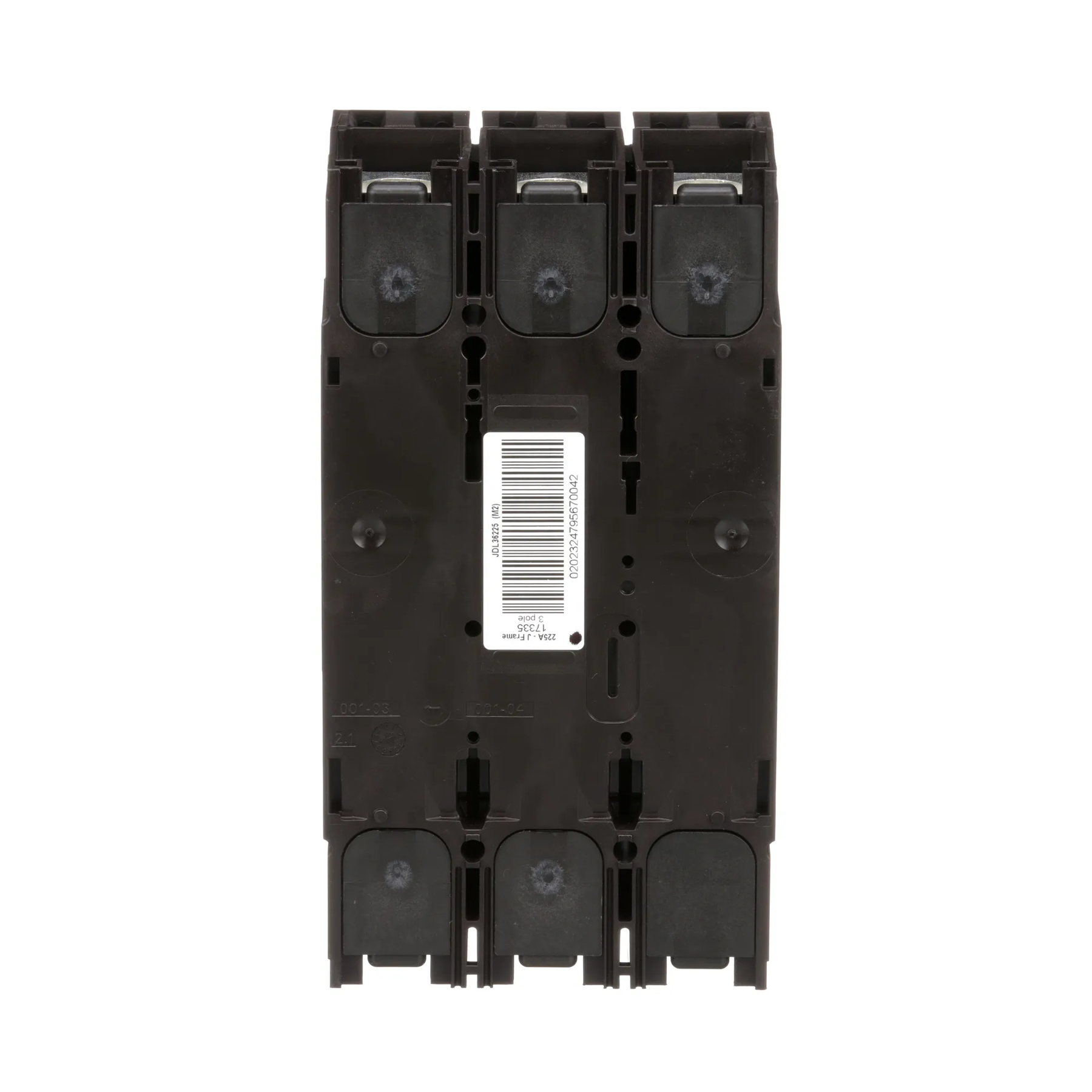

JDL36225 - Square D - Molded Case Circuit Breaker

Feed-Thru - 225 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: jdl36225
JDL36225 - Square D - Molded Case Circuit Breaker
JDL36225 - Square D - Molded Case Circuit Breaker
JDL36225 - Square D - Molded Case Circuit Breaker
JDL36225 - Square D - Molded Case Circuit Breaker
JDL36225 - Square D - Molded Case Circuit Breaker
JDL36225 - Square D - Molded Case Circuit Breaker

Images are for reference only

JDL36225 - Square D - Molded Case Circuit Breaker

Feed-Thru - 225 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: jdl36225
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - JDL36225 - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - JDL36225 - Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    JDA

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

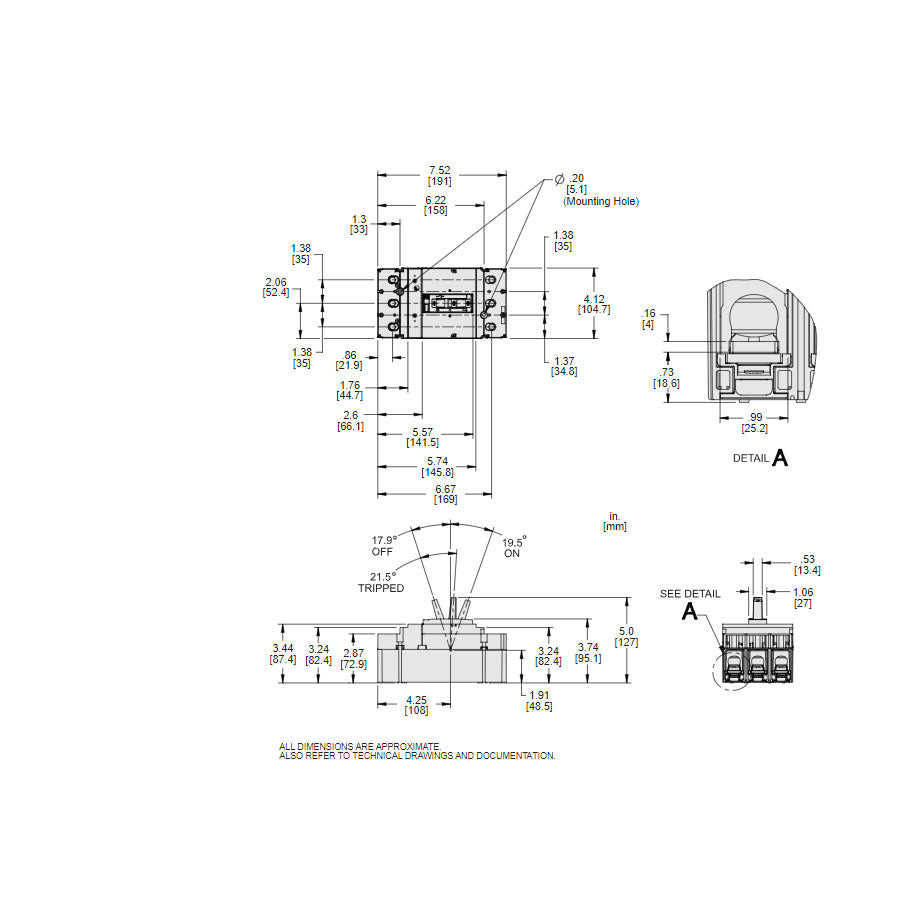

Dimensions

  • Dimensions (HxWxD):

    7.52" x 4.12" x 5"

  • Weight:

    5.29 lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Overload protection / Short-circuit protection

  • Frame Type:

    J-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    225 Amp

  • Mounting Mode:

    Unit Mount Lug

  • Breaking Capacity Code:

    D

  • Electrical Connection:

    Lug line / Lugs load

  • Magnetic Hold Current:

    1125 Amp

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 4...AWG 4/0 aluminium/copper terminal

Product Description - JDL36225 - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type JDL, 3P, 3PH, 225A, 600V, 18kA@480V, standard interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specification



This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Customer Reviews

Based on 4 reviews
75%
(3)
25%
(1)
0%
(0)
0%
(0)
0%
(0)
J
JM
Very fast service. Ordered Friday, received Monday!

I ordered the wrong breaker! Very easily got a confirmation that I can returned it, get a refund and was able to order the correct one.

c
cardiosmart
Perfect

Had to add a new breaker to existing box and this one did the trick.

b
bdaze69
Everything as expected.

Everything as expected.

T
T.G.
A functional breaker

shipped right away and worked as expected
