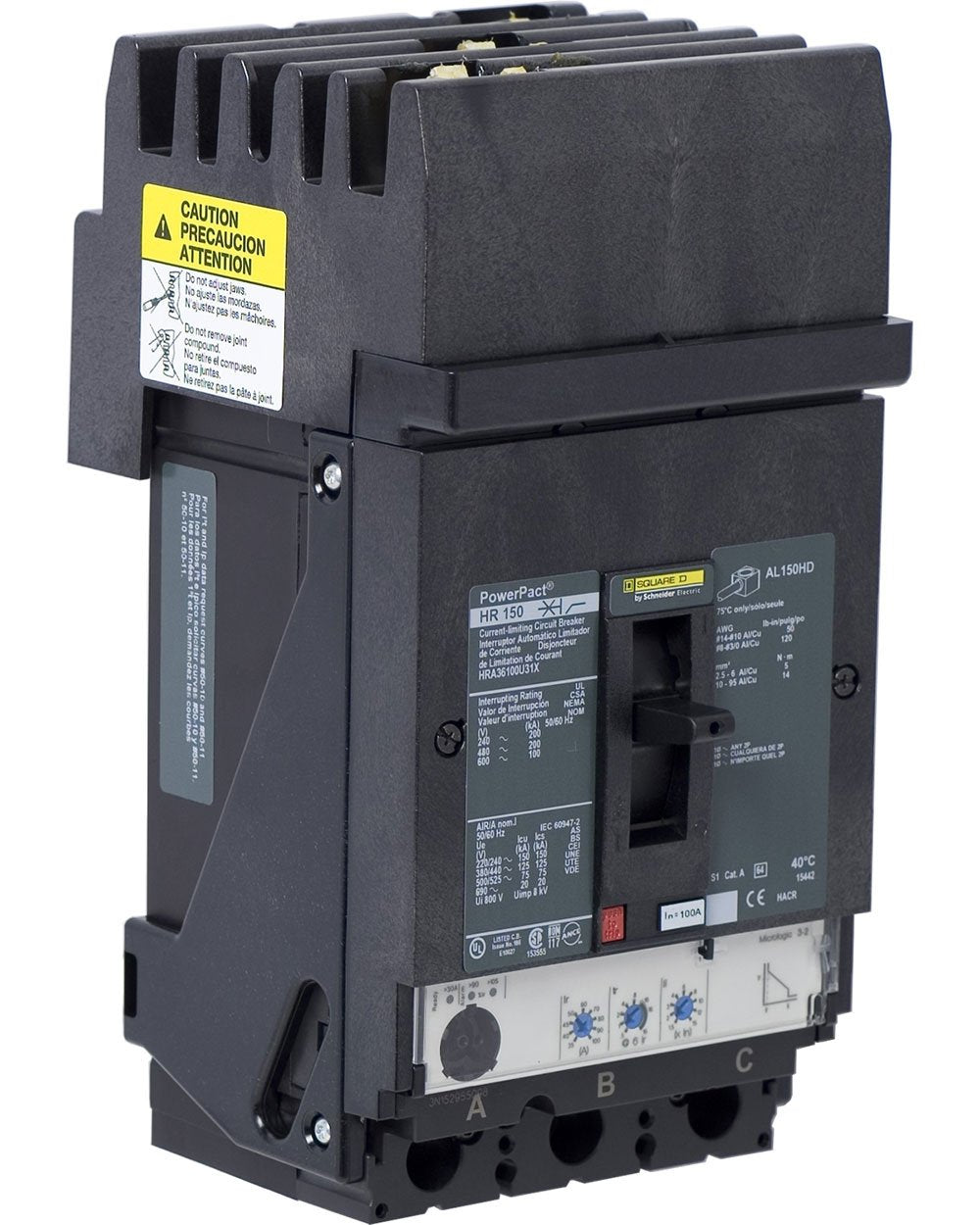

Name: HRA36100U31X - Square D - Molded Case Circuit Breaker
Brand: Schneider Electric
SKU: HRA36100U31X
Price: 5713.99 CAD
Availability: InStock

HRA36100U31X - Square D - Molded Case Circuit Breaker

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40513602519149,"title":"New","option1":"New","option2":null,"option3":null,"sku":"HRA36100U31X","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HRA36100U31X - Square D - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":571399,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901943779","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40755415416941,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"HRA36100U31X_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HRA36100U31X - Square D - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":490099,"weight":2268,"compare_at_price":422299,"inventory_management":"shopify","barcode":"785901943779","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - HRA36100U31X - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - HRA36100U31X - Square D Powerpact Circuit Breaker

Part Number:

HRA36100U31X
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

100
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

HRA
Functions:

LI - Long-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

200kA@480V

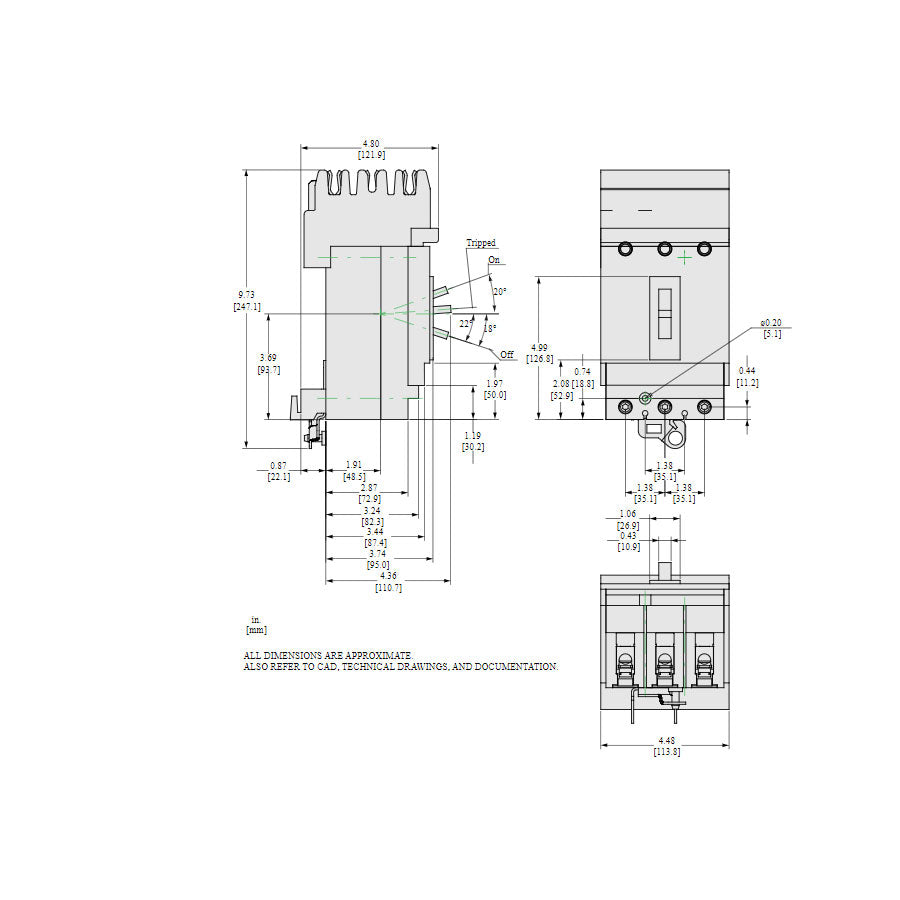

Dimensions

Dimensions (HxWxD):

9.73" x 4.48" x 4.36"

Weight:

4.85 lbs

Standards

Additional Details

Frame Type:

H-Frame
Trip Unit Technology:

Electronic, standard, MicroLogic 3.2, LI
Line Rated Current:

100 A
Mounting Mode:

I-Line bracket

Breaking Capacity Code:

R
Electrical Connection:

I-Line connection line / Lugs load
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HRA36100U31X - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type HRA, 3P, 3PH, 100A, 600V, 200kA@480V, 100kA@600V, UL listed, I-line style plug-in, phase ABC, 80% rated, molded case circuit breakers.

Documentation

Catalogue

Technical Specification

HRA36100U31X - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 100 Amp - 3 Pole - 600 Volt

HRA36100U31X - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 100 Amp - 3 Pole - 600 Volt
