HJL36150M74 - Square D - Molded Case Circuit Breaker

Feed Thru - 150 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: HJL36150M74

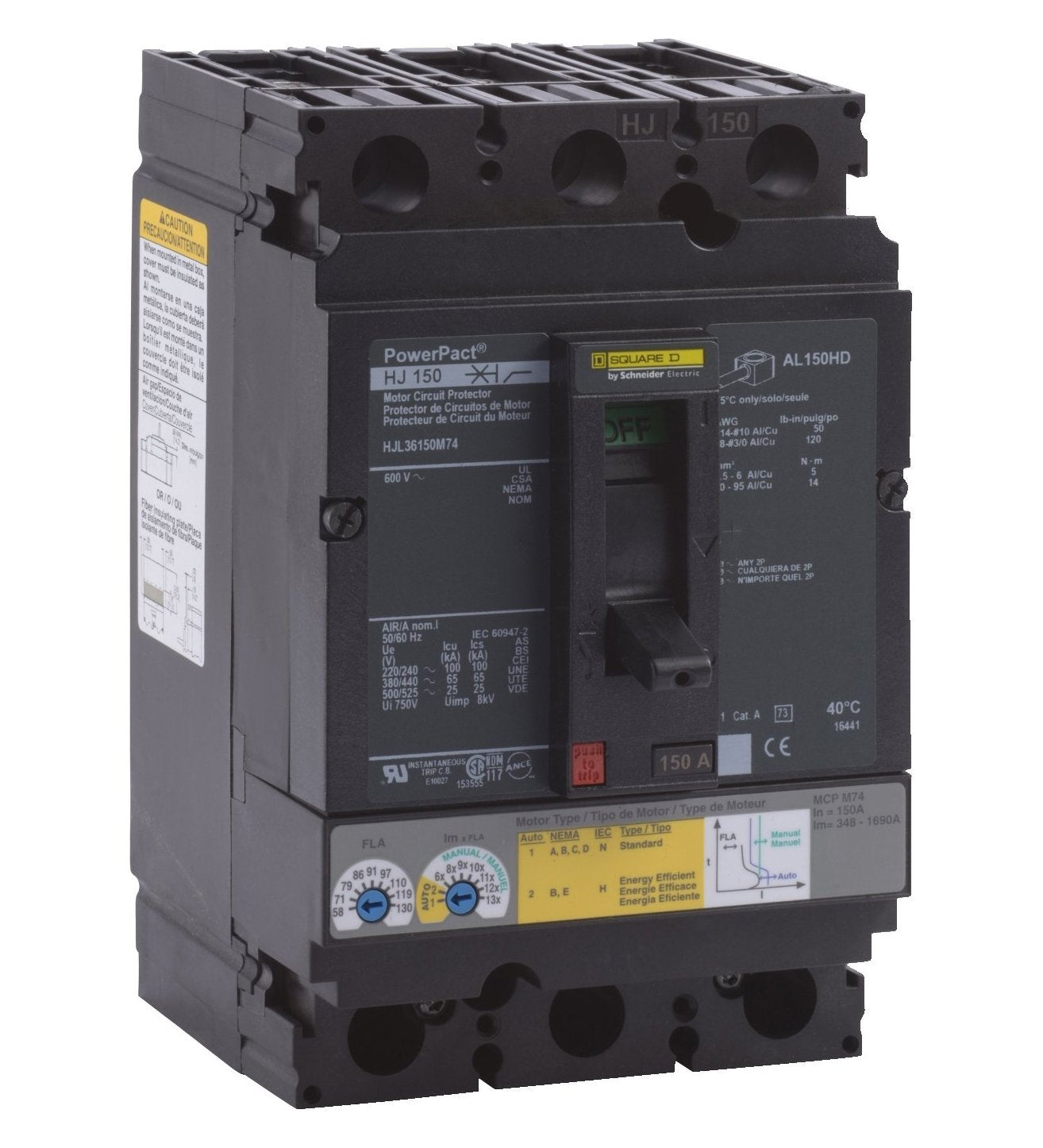

HJL36150M74 - Square D 150 Amp 3 Pole 600 Volt Molded Case Circuit Breaker

Images are for reference only

HJL36150M74 - Square D - Molded Case Circuit Breaker

Feed Thru - 150 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: HJL36150M74
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - HJL36150M74 - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - HJL36150M74 - Square D Molded Case Circuit Breakers

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    HJL

  • Functions:

    I - Instantaneous

  • Protection:

    Magnetic Only

  • AIC Ratings:

    65kA@480V

Dimensions

  • Dimensions (HxWxD):

    6.42" x 4.09" x 3.39"

  • Weight:

    4.85 lbs

Standards

CSA Approved logo

Additional Details

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    150 Amp

  • Mounting Mode:

    Unit mount lug

  • Breaking Capacity Code

    J

  • Electrical Connection:

    Lugs line / Lugs load

  • Continuous Current Rating

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HJL36150M74 - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type HJL, 3P, 3PH, 150A, 600V, 65kA@480V, UL listed, current limiting, feed-thru, suitable for reverse fed applications, complete with I - Instantaneous protection only and line & load side lug terminals, MCP, motor circuit protector, magnetic range 348-1690A, magnetic only, molded case circuit breakers

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Technical Specifications
