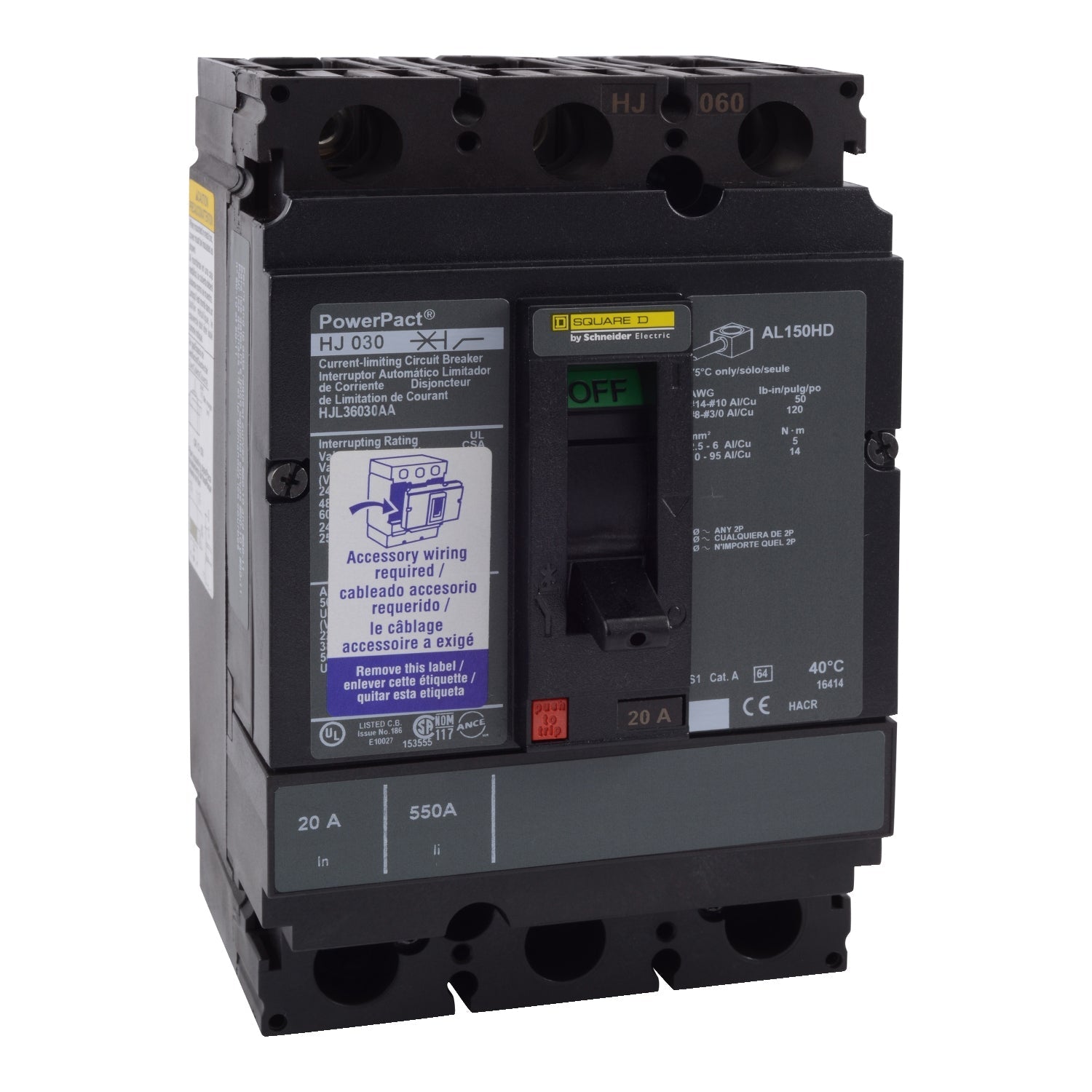

Name: HJL36030AA - Square D - Molded Case Circuit Breaker
Brand: Schneider Electric
SKU: HJL36030AA
Price: 3849.99 CAD
Availability: InStock

HJL36030AA - Square D - Molded Case Circuit Breaker

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40513539539053,"title":"New","option1":"New","option2":null,"option3":null,"sku":"HJL36030AA","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HJL36030AA - Square D - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":384999,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40755413188717,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"HJL36030AA_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HJL36030AA - Square D - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":307999,"weight":2268,"compare_at_price":384999,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - HJL36030AA - Square D - Molded Case Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

Overview

Product Specifications - HJL36030AA - Square D Powerpact Circuit Breaker

Part Number:

HJL36030AA
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

30
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

HJL
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

65kA@480V

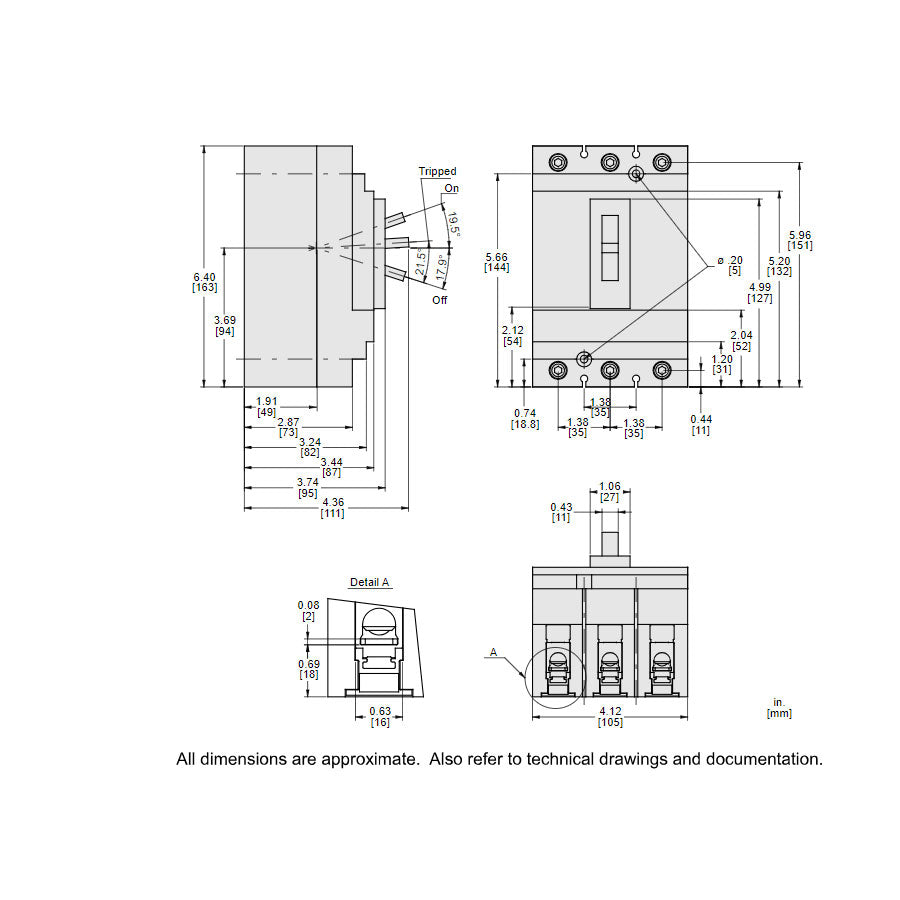

Dimensions

Dimensions (HxWxD):

6.42" x 4.09" x 3.39"

Weight:

4.85 lbs

Standards

Additional Details

Frame Type:

H-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

30 A
Mounting Mode:

Unit mount lug

Breaking Capacity Code

J
Electrical Connection:

Lugs line / Lugs load
Magnetic Hold Current:

350 A
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HJL36030AA - Square D Powerpact Circuit Breaker

Schneider Electric,Square D, Powerpact, type HJL, 3P, 3PH, 30A, 600V, 65kA@480V, UL listed, current limiting, feed-thru, suitable for reverse fed applications, complete with 1A/1B auxiliary switch, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic.

Documentation

Catalogue

Technical Specification

HJL36030AA - Square D - Molded Case Circuit Breaker

Feed-Thru - 30 Amp - 3 Pole - 600 Volt

HJL36030AA - Square D - Molded Case Circuit Breaker

Feed-Thru - 30 Amp - 3 Pole - 600 Volt
