HDA36015 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 15 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: HDA36015
HDA36015 - Square D 15 Amp 3 Pole 600 Volt Plug-In Molded Case Circuit Breaker
HDA36015 - Square D - Molded Case Circuit Breaker
HDA36015 - Square D - Molded Case Circuit Breaker
HDA36015 - Square D - Molded Case Circuit Breaker
HDA36015 - Square D - Molded Case Circuit Breaker
HDA36015 - Square D 15 Amp 3 Pole 600 Volt Plug-In Molded Case Circuit Breaker

Images are for reference only

HDA36015 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 15 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: HDA36015
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - HDA36015 - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - HDA36015 - Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    HDA

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

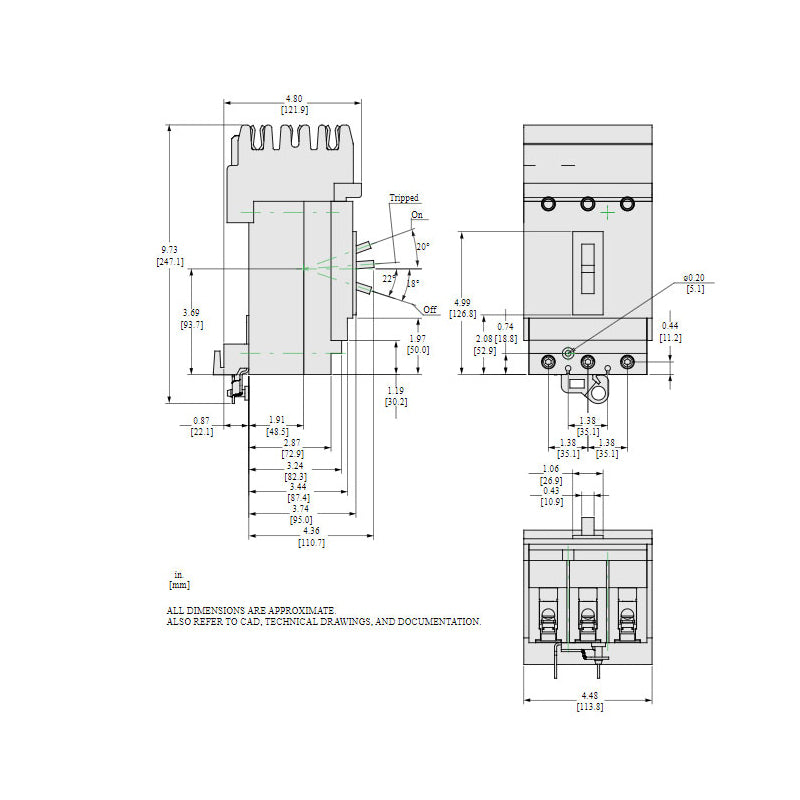

Dimensions

  • Dimensions (HxWxD):

    9.73" x 4.48" x 4.8"

  • Weight:

    2.49 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    H-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    15 A

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code

    D

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Magnetic Hold Current:

    350 A

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HDA36015 - Square D Powerpact Circuit Breaker

Square D, Powerpact, type HDA, 1PH, 2P, B & C phase connection, 150A, 600V, 18kA@480V, standard interrupting capacity, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications


This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Customer Reviews

Based on 5 reviews
60%
(3)
40%
(2)
0%
(0)
0%
(0)
0%
(0)
H
Houds
I wish I could give 10 stars but the max here is 5 stars.

I searched so many stores and many more and they all had the Siemens breakers that I needed out of stock and priced sky high but luckily for me I found this company, who not only had the breakers in stock, they had the lowest price for crying out loud. I received 4 breakers on the second day of placing the order and it seemed like Siemens shipped it directly as the quality was mint and outstanding, beating all the big box stores out of the box. I highly recommend as they helped me when no other store could. 10 stars

m
martin
Fast delivery and great service

Thank you terra for all your help

u
user
Good studf

Great deal. It did what I needed it to do. I am a elecrician and I am always looking to save my customers money.

D
Duane B.
Great price

shipped right away and worked as expected

d
dean mcilmoyle
nice

thanks
