Name: FAL36070 - Square D - Molded Case Circuit Breaker
Brand: Schneider Electric
SKU: FAL36070
Price: 1470.99 CAD
Availability: InStock

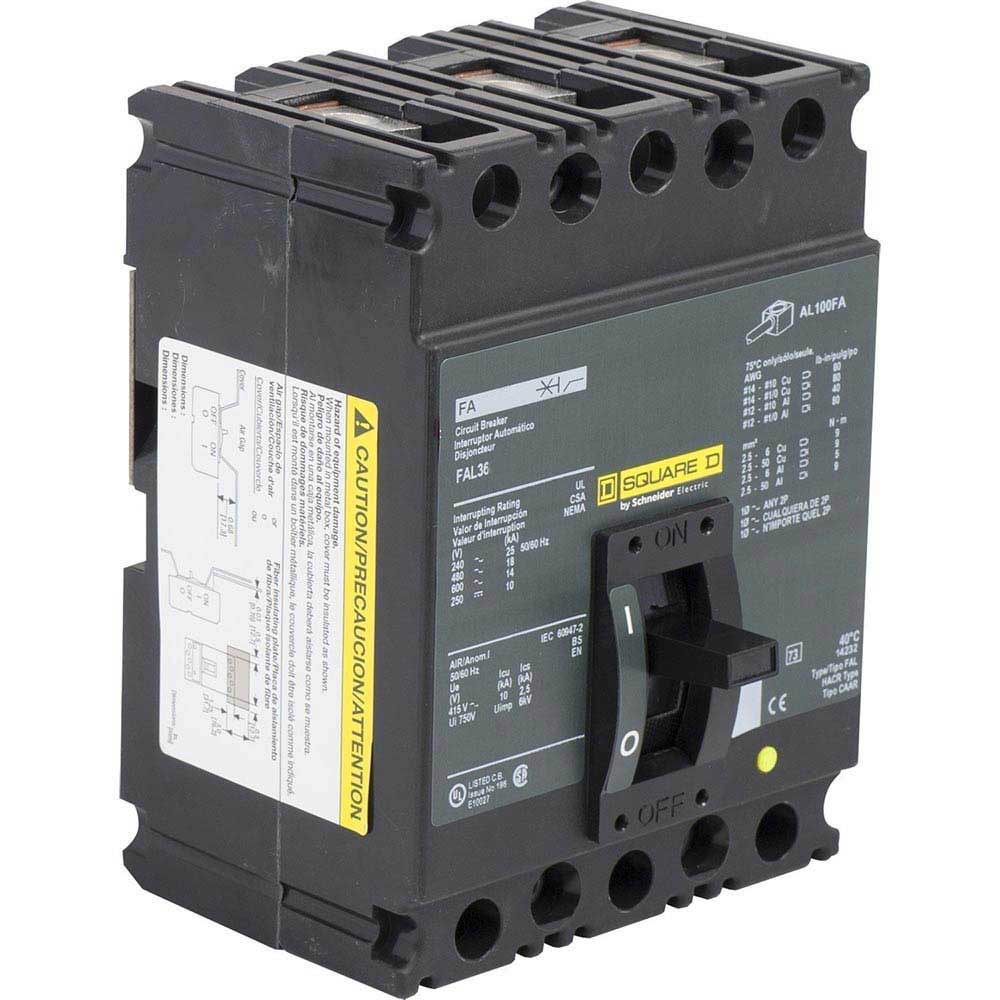

FAL36070 - Square D 70 Amp 3 Pole 600 Volt Lug Molded Case Circuit Breaker

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40513807908973,"title":"New","option1":"New","option2":null,"option3":null,"sku":"FAL36070","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"FAL36070 - Square D - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":147099,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901423744","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40755410272365,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"FAL36070_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"FAL36070 - Square D - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":56999,"weight":2268,"compare_at_price":89299,"inventory_management":"shopify","barcode":"785901423744","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - FAL36070 - Square D - Molded Case Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

Overview

Product Specifications - FAL36070 - Square D Powerpact Circuit Breaker

Part Number:

FAL36070
Manufacturer:

Schneider Electric / Square D
Family:

FAL Series
Pole:

3
Amp

70
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

FAL
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

18kA@480V

Dimensions

Dimensions (HxWxD):

6" x 4.5" x 4.13"

Weight:

4.63 lbs

Standards

Additional Details

Frame Type:

F-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

70 A
Mounting Mode:

Unit Mount

Breaking Capacity Code

A
Electrical Connection:

Lugs load / Lugs Line
Magnetic Hold Current:

800 A

Product Description - FAL36070 - Square D Powerpact Circuit Breaker

Square D, FAL Series, type FAL, 3P, 3PH, 70A, 600V, 14kA@600V, standard interrupting capacity, feed-thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.
