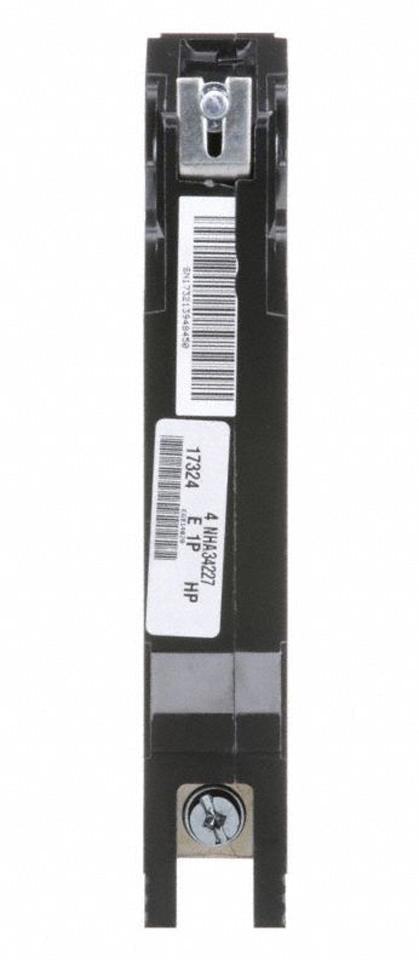

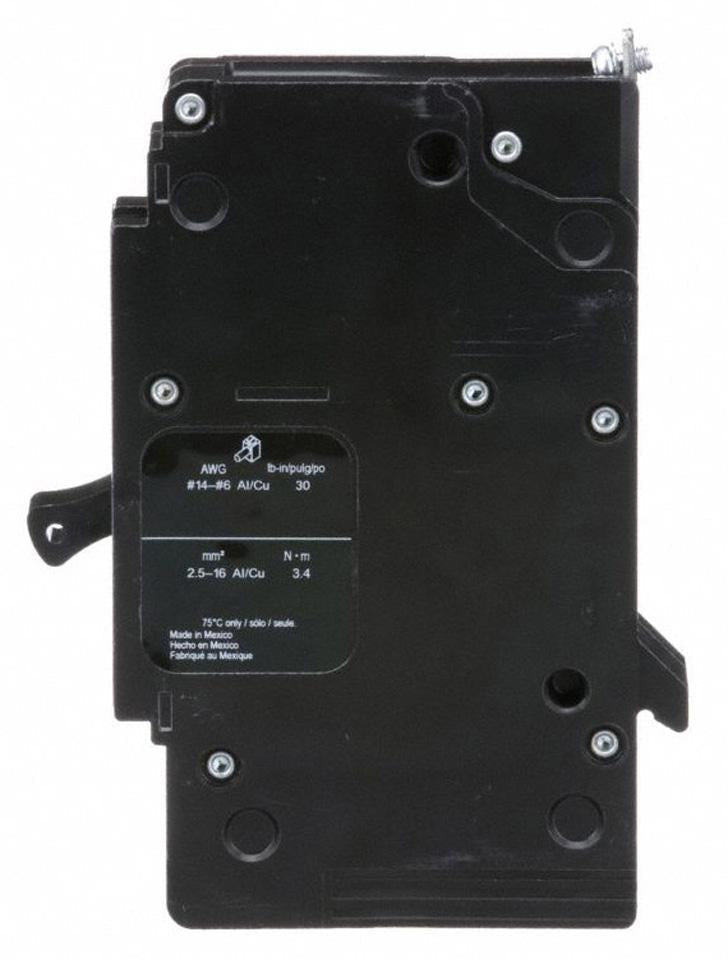

Name: EJB14040 - Square D - Molded Case Circuit Breaker
Brand: Schneider Electric
SKU: EJB14040
Price: 579.99 CAD
Availability: InStock

EJB14040 - Square D 30 Amp 1 Pole 277 Volt Bolt-On Circuit Molded Case Breaker

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40513628897389,"title":"New","option1":"New","option2":null,"option3":null,"sku":"EJB14040","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"EJB14040 - Square D - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":57999,"weight":907,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901311096","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40759927406701,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"EJB14040_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"EJB14040 - Square D - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":18799,"weight":907,"compare_at_price":26899,"inventory_management":"shopify","barcode":"785901311096","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - EJB14040 - Square D - Molded Case Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

Overview

Product Specifications - EJB14040 - Square D Bolt-On Circuit Breaker

Part Number:

EJB14040
Manufacturer:

Schneider Electric / Square D
Family:

EJB Series
Pole:

1
Amp

40
Volt:

277
Phase:

1

Category:

Molded Case / 1-Pole
Connection:

Bolt-On
Type:

EJB
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

65kA@277V | 65kA@240V | 100kA@120V

Dimensions

Dimensions (HxWxD):

5.66" x 0.98" x 4.05"

Weight:

2lbs

Standards

Additional Details

Protection Type:

Short-Circuit / Overload
Module Type:

E-Frame
Trip Unit Rating:

875 Amp
Line Rated Current:

40 Amp
Maximum Operating Voltage:

277 V AC
Mounting Mode:

Bolt-On

Product Destination:

Square D NF Panelboard
Electrical Connection:

Aluminum Lugs
Holding Current:

270 Amp
Local Signaling:

Trip Indicator
Circuit Breaker Application:

HID-Rated / HACR-Rated
AWG Gauge:

AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper

Product Description - EJB14040 - Square D Bolt-On Circuit Breaker

Schneider Electric / Square D's EJB14040 bolt-on molded case circuit breaker is a reliable and easy-to-install device designed for use in Square D NF Panelboards. This circuit breaker is CSA-rated, HID-rated and HACR-rated, and UL Listed as High-Intensity Discharge.

The EJB14040 is a 1-pole bolt-on circuit breaker, rated at 40A at a system voltage of 277V AC. The circuit breaker has a thermal-magnetic trip unit and a signal indicator to indicate when a trip occurred. The device has a hold current of 270A (the maximum current the breaker can be held at to ensure a trip will occur) and a trip current of 875A (the current value when the breaker is guaranteed to trip).

Square D's EJB14040 circuit breaker is calibrated for 40 degrees C and has aluminum lugs with a terminal lug rating of AWG 12...AWG 6 (aluminum) and AWG 14...AWG 6 (copper).
