Name: BGA36100 - Square D - Molded Case Circuit Breaker
Brand: Schneider Electric
SKU: BGA36100
Price: 1507.99 CAD
Availability: InStock

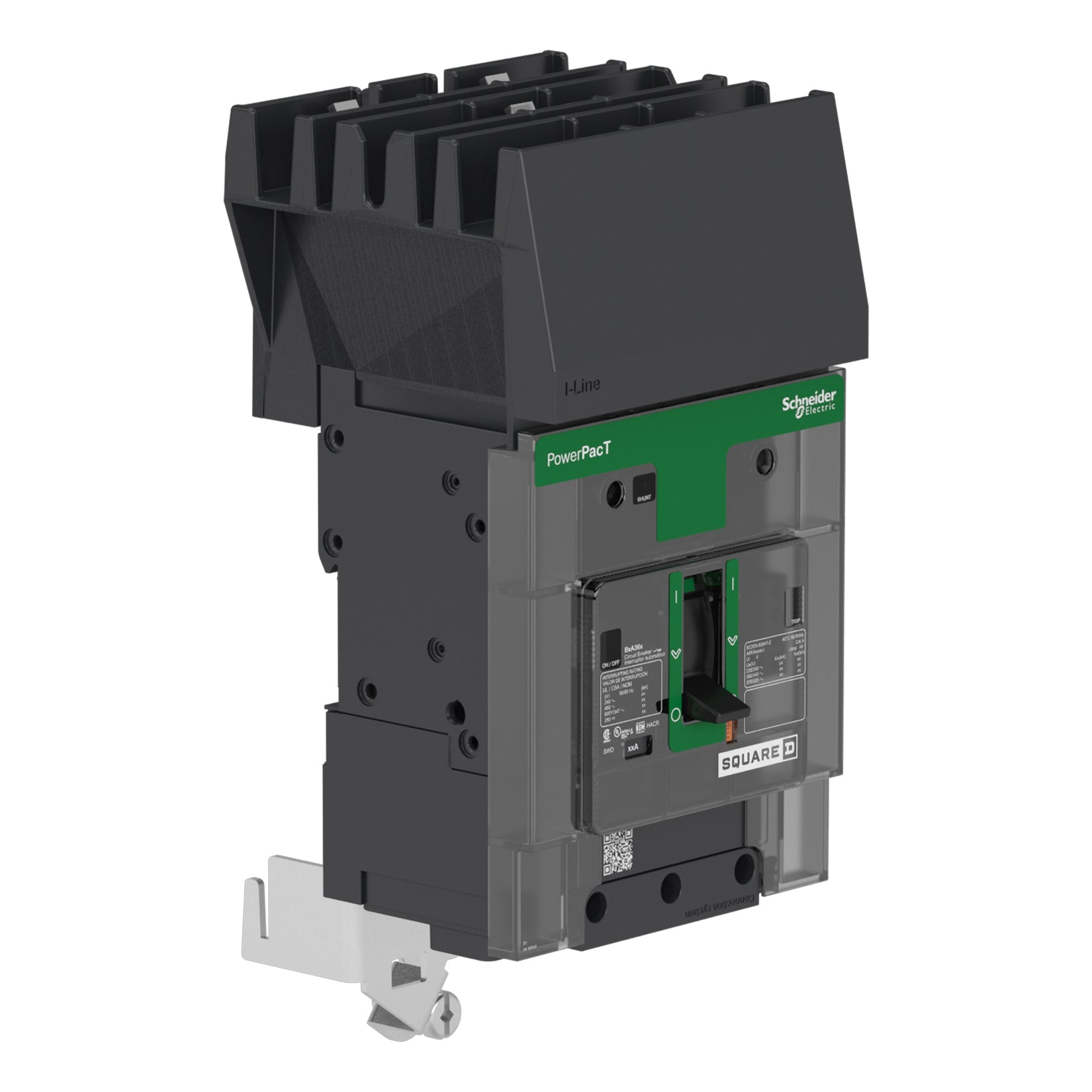

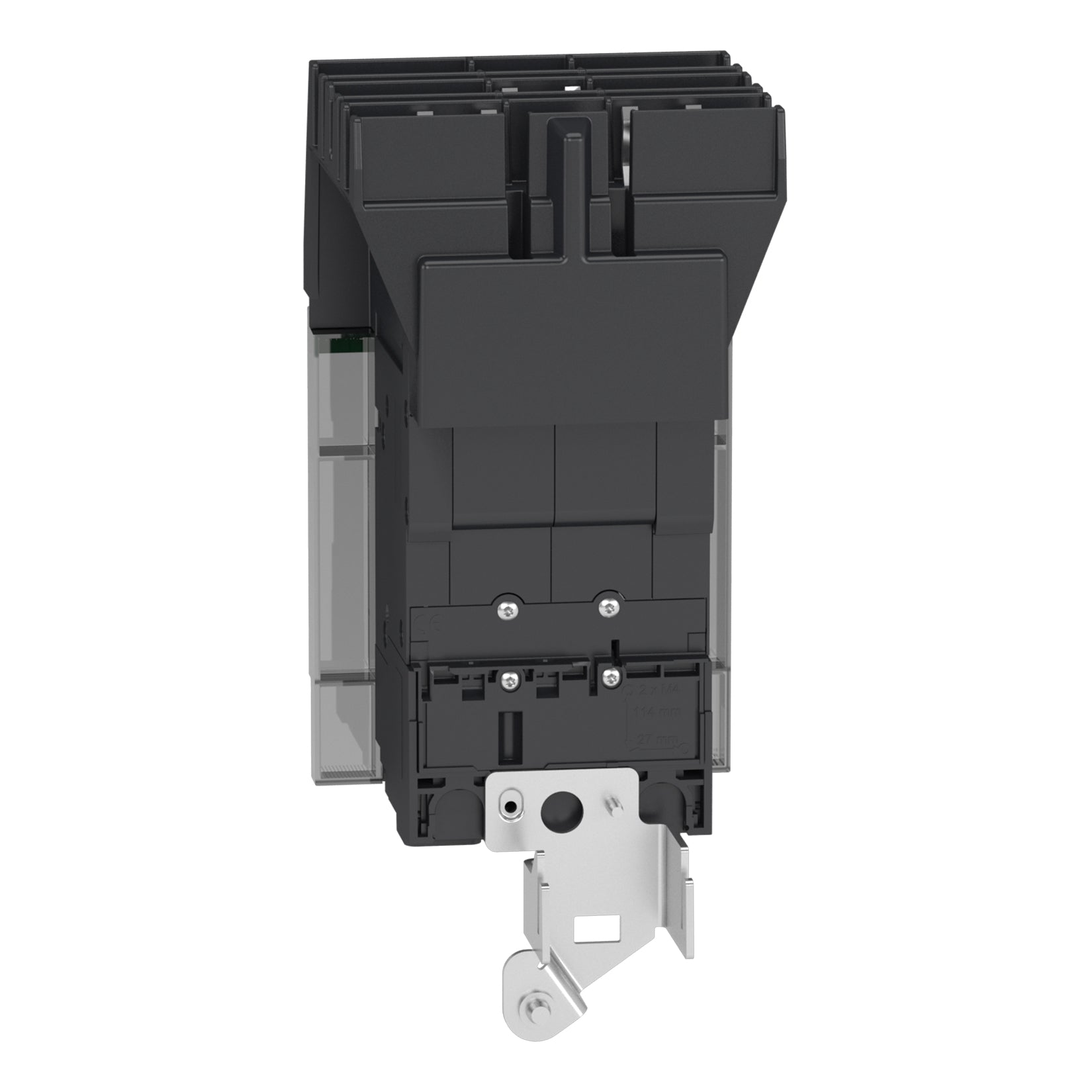

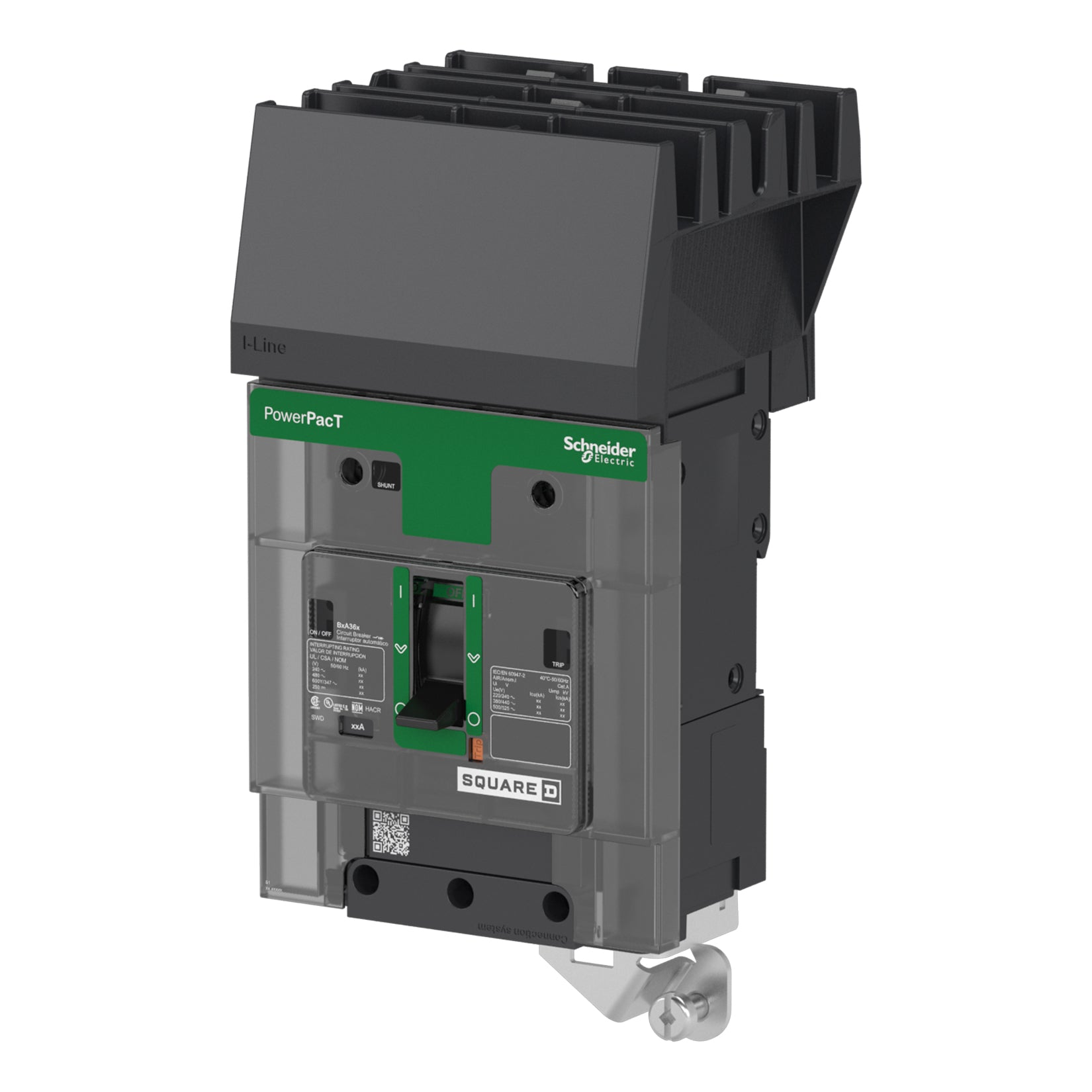

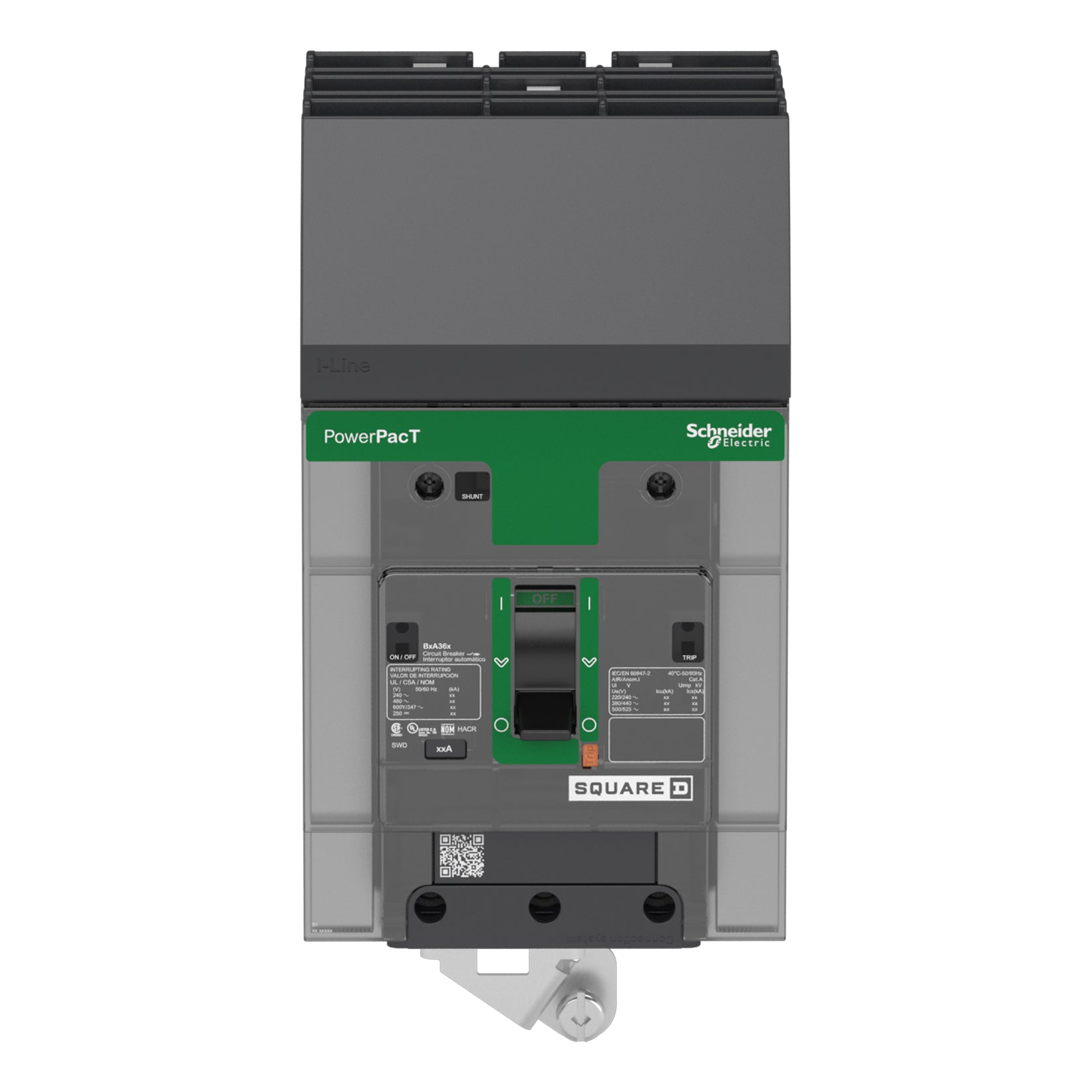

BGA36100 - Square D 100 Amp 3 Pole 600 Volt Molded Case Circuit Breaker

BGA36100 - Square D - Molded Case Circuit Breaker

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40513622081645,"title":"New","option1":"New","option2":null,"option3":null,"sku":"BGA36100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BGA36100 - Square D - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":150799,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901241409","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40734585061485,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"BGA36100_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BGA36100 - Square D - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":118999,"weight":2268,"compare_at_price":121699,"inventory_management":"shopify","barcode":"785901241409","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - BGA36100 - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - BGA36100 - Square D Molded Case Circuit Breakers

Part Number:

BGA36100
Manufacturer:

Square D
Family:

Powerpact
Pole:

3
Amp

100
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

BGA
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

35kA@480V

Dimensions

Dimensions (HxWxD):

5.39" x 3.19" x 3.50"

Weight:

2.90 lbs

Additional Details

Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

100 Amp
Mounting Mode:

I-Line

Breaking Capacity Code:

G
Electrical Connection:

I-Line connection line / Lugs load
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 14...AWG 2/0 aluminium/copper

Standards

Product Description - BGA36100 - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type BGA, 3PH, 3P, 600Y/347Vac, 100A, 35kA@480V rated, i-line style plug-in with ABC phase connection, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side mechanical lug terminals, thermal magnetic, molded case circuit breakers

Documentation

Catalogue

Product Specifcation
