BDA36030 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 30 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: BDA36030

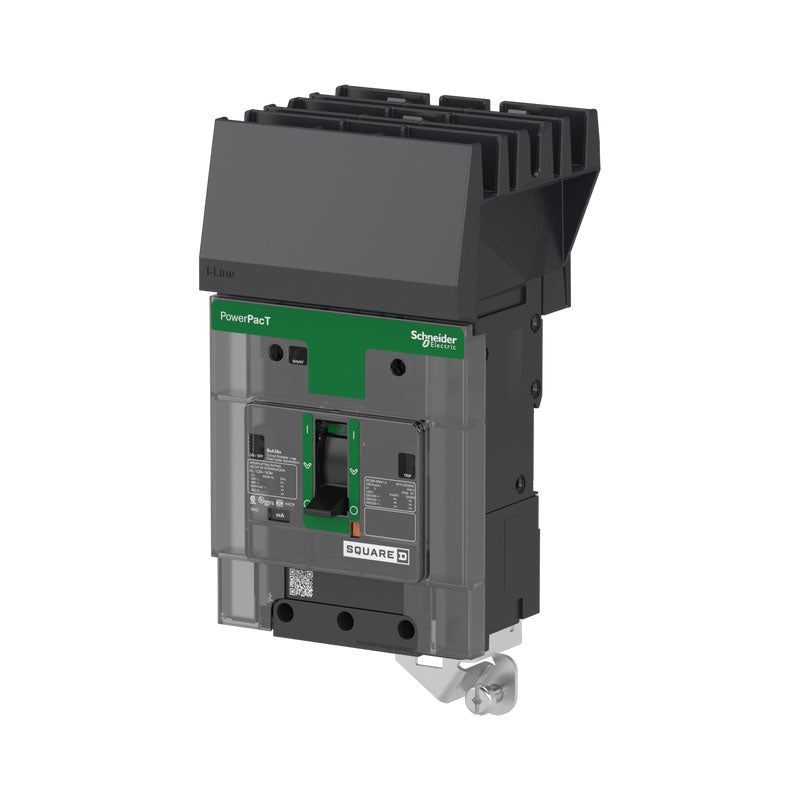

BDA36030 - Square D 30 Amp 3 Pole 600 Volt Plug-In Molded Case Circuit Breaker
BDA36030 - Square D - Molded Case Circuit Breaker
BDA36030 - Square D - Molded Case Circuit Breaker
BDA36030 - Square D - Molded Case Circuit Breaker
BDA36030 - Square D - Molded Case Circuit Breaker
BDA36030 - Square D 30 Amp 3 Pole 600 Volt Plug-In Molded Case Circuit Breaker

Images are for reference only

BDA36030 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 30 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: BDA36030
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - BDA36030 - Square D - Molded Case Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

Overview

Product Specifications - BDA36030 - Square D Molded Case Circuit Breakers

  • Part Number:

    BDA36030

  • Manufacturer:

    Square D

  • Family:

    Powerpact

  • Pole:

    3

  • Amp

    30

  • Volt:

    600

  • Phase:

    3

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    BDA

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

    5.39" x 3.19" x 3.50"

Additional Details

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    30 Amp

  • Mounting Mode:

    I-Line

  • Breaking Capacity Code

    D

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Continuous Current Rating

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14...AWG 2/0 aluminium/copper

  • Weight:

    2.90 lbs

Standards

CSA Approved logo

Product Description - BDA36030 - Square D Molded Case Circuit Breakers

Square D / Schneider Electric, Powerpact, type BDA, 3PH, 3P, 600Y/347Vac, 30A, 18kA@480V rated, i-line style plug-in with ABC phase connection, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side mechanical lug terminals, thermal magnetic, molded case circuit breakers

Documentation

PDF Icon Catalogue

PDF Icon Product Specifcation

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Customer Reviews

Based on 3 reviews
67%
(2)
33%
(1)
0%
(0)
0%
(0)
0%
(0)
D
Don
Great prices, great technical support and fast shipping.

Very highly recommended. Go direct for even better prices! Way less expensive than the big box stores.

F
Frank
Good breaker. Bought this one for spare but had ...

Good breaker. Bought this one for spare but had used one I bought previously to replace a weak one that kept tripping with my power compressor in the garage. Fits perfectly

r
rich
Five Stars

Breakers work great so far.
