Product Warranty - CH366AWK - Square D - Disconnect and Safety Switch
All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.
Overview
Product Specifications - CH366AWK Schneider Electric Disconnect and Safety Switch
-
Part Number:
CH366AWK -
Manufacturer:
-
Family:
Series E -
Pole:
3 -
Amp
600 -
Volt:
600 -
Phase:
3
-
Category:
-
Type:
CH -
AIC Ratings:
10kA@600V

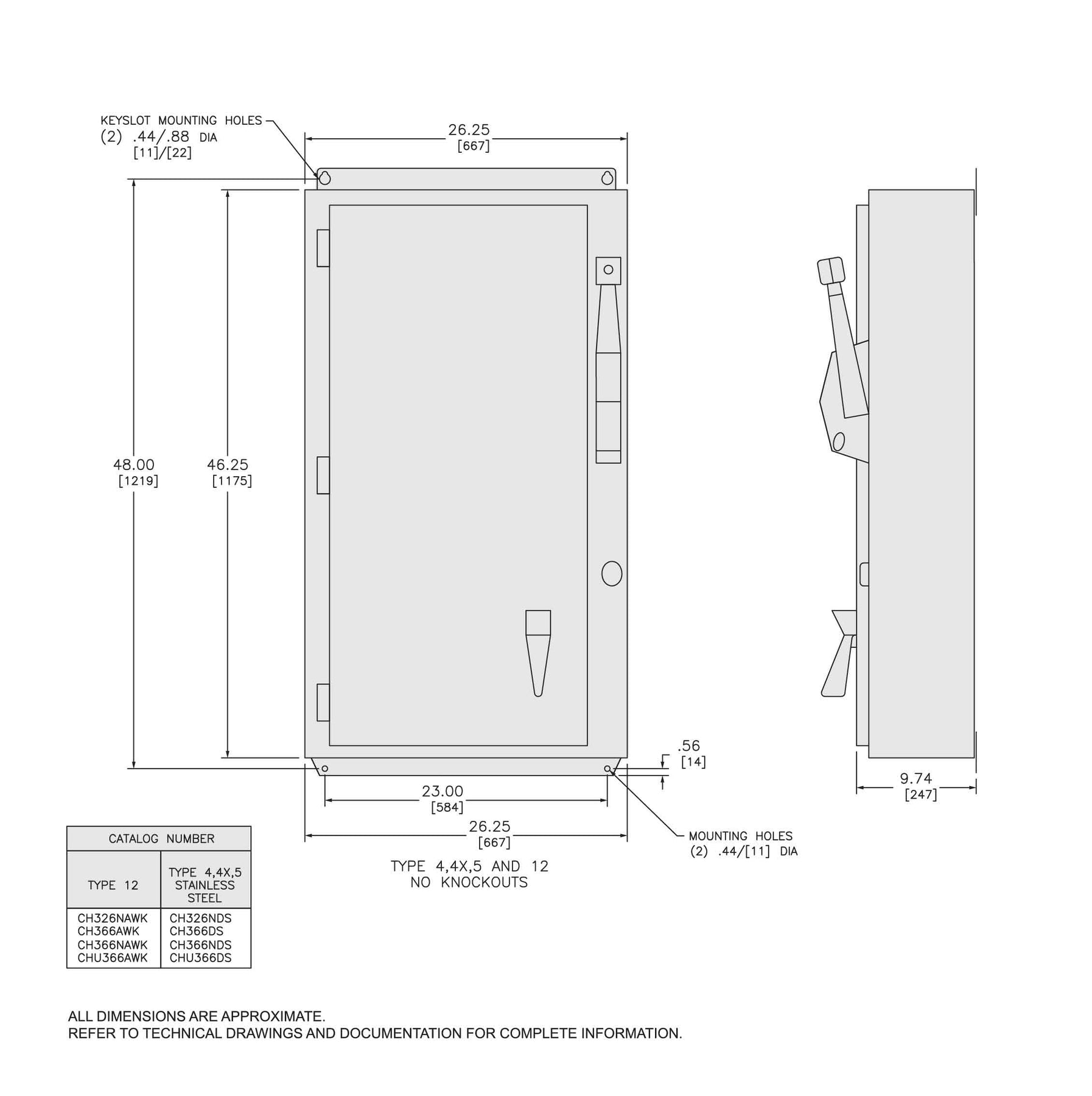

Dimensions
-
Dimensions (HxWxD):
10.13 x 26.25 x 46.25 -
Weight:
170 lb
Standards
Product Description - CH366AWK Schneider Electric Disconnect and Safety Switch

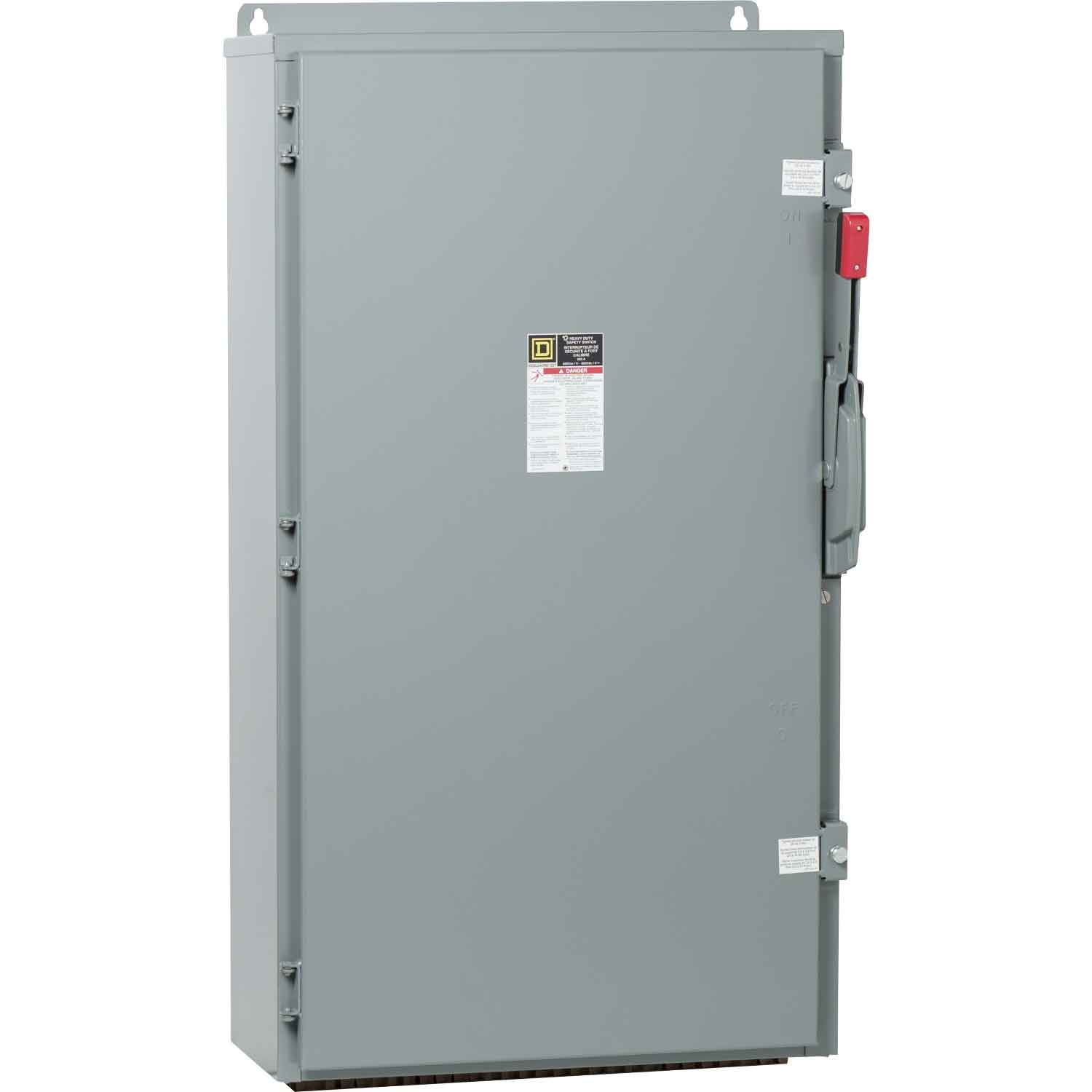

CH366AWK, Square D, Series E, type CH, E4 series heavy duty Fusible safety switch, 3PH, 3P, 600V, 600A, NEMA 3R/12 enclosure, 500HP max, Fusible type, accepts H,R fuses, 10kA@600V max, Single throw
