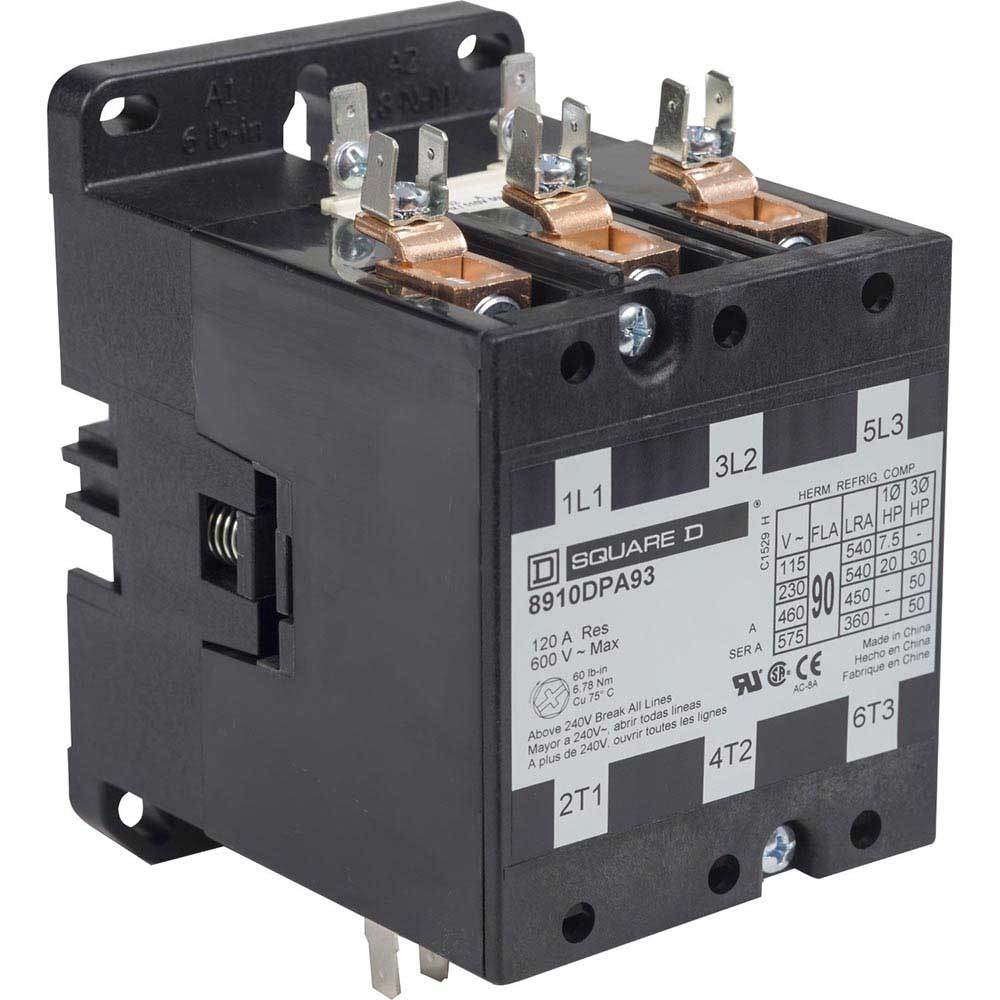

8910DPA93V02 - Square D Definite Purpose Contactor

Schneider Electric / Square D Definite purpose contactor features a three pole 90 ampere with resistive current rating 120 Amp Includes quick connect binder head screw and coil voltage rating of 120VAC@60Hz - 110VAC@50Hz Suitable for heating air conditioning refrigeration data processing and food service equipment UL Recognized and CSA Certified.

Specifications:

• Product or component type: Definite Purpose Contactor
• Line Rated Current: 90 A
• Number of Poles: 3P
• Pole contact composition: 3 NO
• Range of product: DPA
• Motor power hp: 7.5 hp 115 V AC 1 phase, 20 hp 230 V AC 1 phase, 30 hp 230 V AC 3 phases, 50 hp 460 V AC 3 phases, 50 hp 575 V AC 3 phases
• Locked rotor rated current: 540 A 277 V AC, 450 A 460 V AC, 360 A 575 V AC
• System Voltage: 600 V AC
• [Uc] control circuit voltage: 110 V AC 50 Hz, 120 V AC 60 Hz
• Phase: 3 phases
• Electrical connection: Box lugs, Quick connect terminals
• Product certifications: UL listed, CSA, CE
• Authentic Square D Product
• 3 phase
