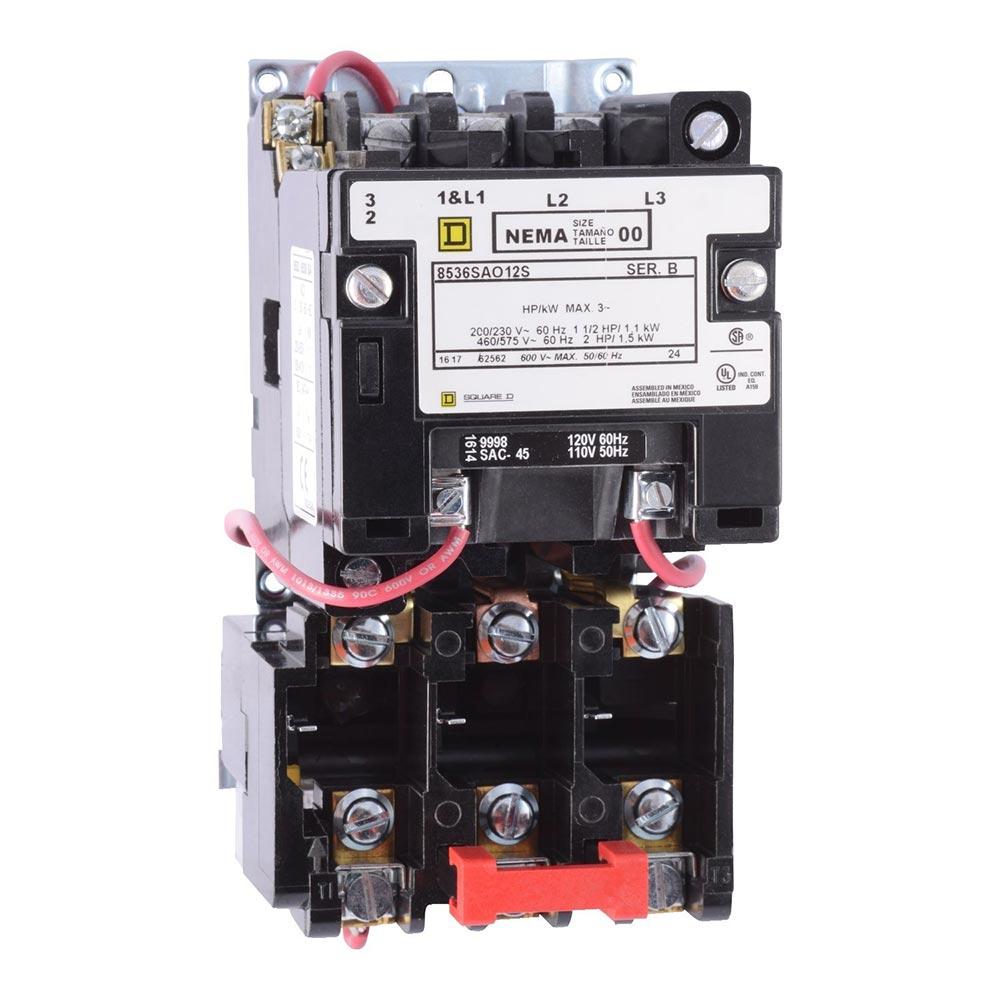

8536SAO12V02S - Square D Motor Starter

Schneider Electric / Square D Nema Starter features a three pole three phase 9 ampere Nema full voltage non reversing starter and screw clamp connection it has a high power rating of 1-1/2 Hp at 200/230 V 50/60 Hz 2 Hp At 460/575 V 50/60 Hz with overloads melting alloy.

Specifications:

• Product or Component Type: Starter
• Type: S
• Control Circuit Type: Separate control circuit
• Control Circuit Voltage: 110 V AC 50 Hz, 120 V AC 60 Hz
• Motor starter type: Non reversing
• Line Rated Current: 0.375
• Number of Poles: 3P
• Phase: 3 phases
• Horsepower Rating: 1.5 HP 200 V AC, 1.5 HP 230 V AC, 2 HP 460 V AC, 2 HP 575 V AC
• System Voltage: 600 V AC
• Control Units: No control units
• Thermal overload type: Melting alloy 3 Thermal Units
• Electrical connection: Screw clamp terminals
• NEMA size: 0
• Height: 6.77 in (172 mm)
• Depth: 4.21 in (107 mm)
• Width: 3.5 in (89 mm)
• Enclosure Type: Not rated (open device)
• Product certifications: NEMA, CSA, UL listed
• Authentic Square D Product
• Dimensions (H x W x L): 6.77" x 3.5" x 4.21"
• 3 phase
