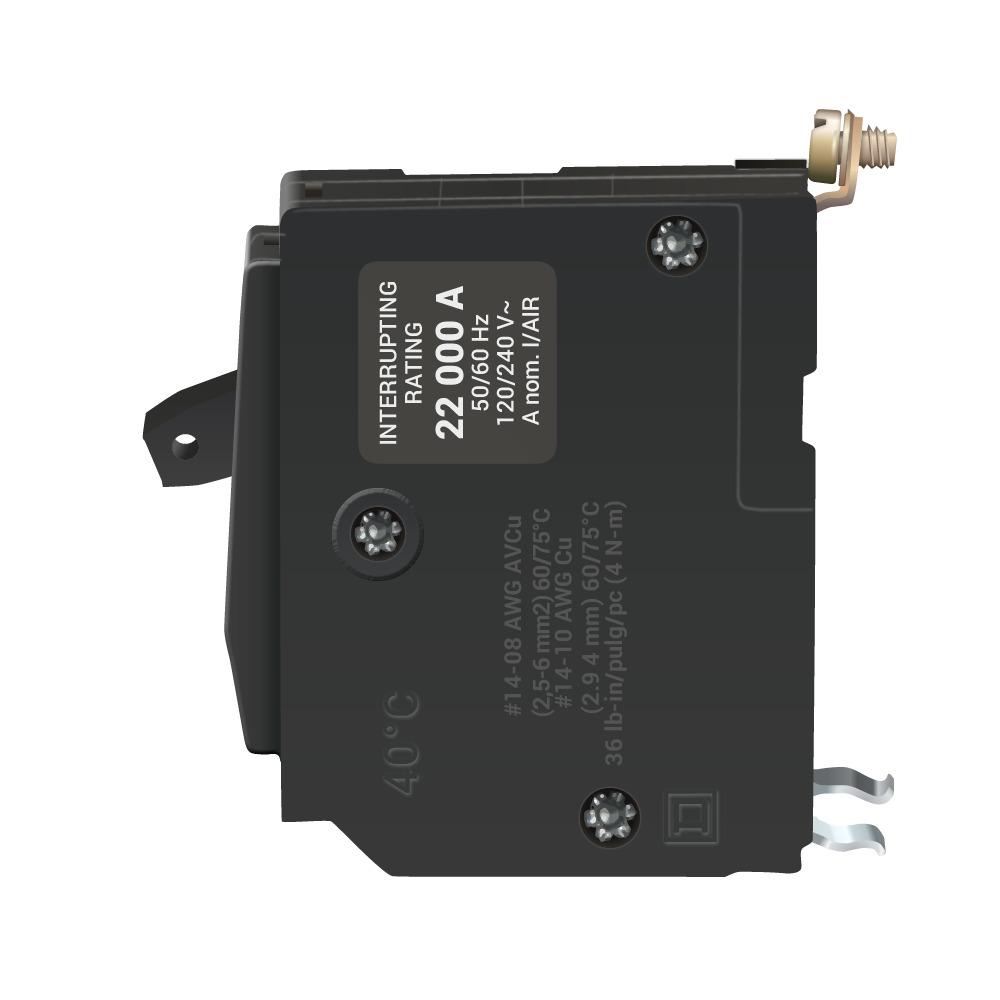

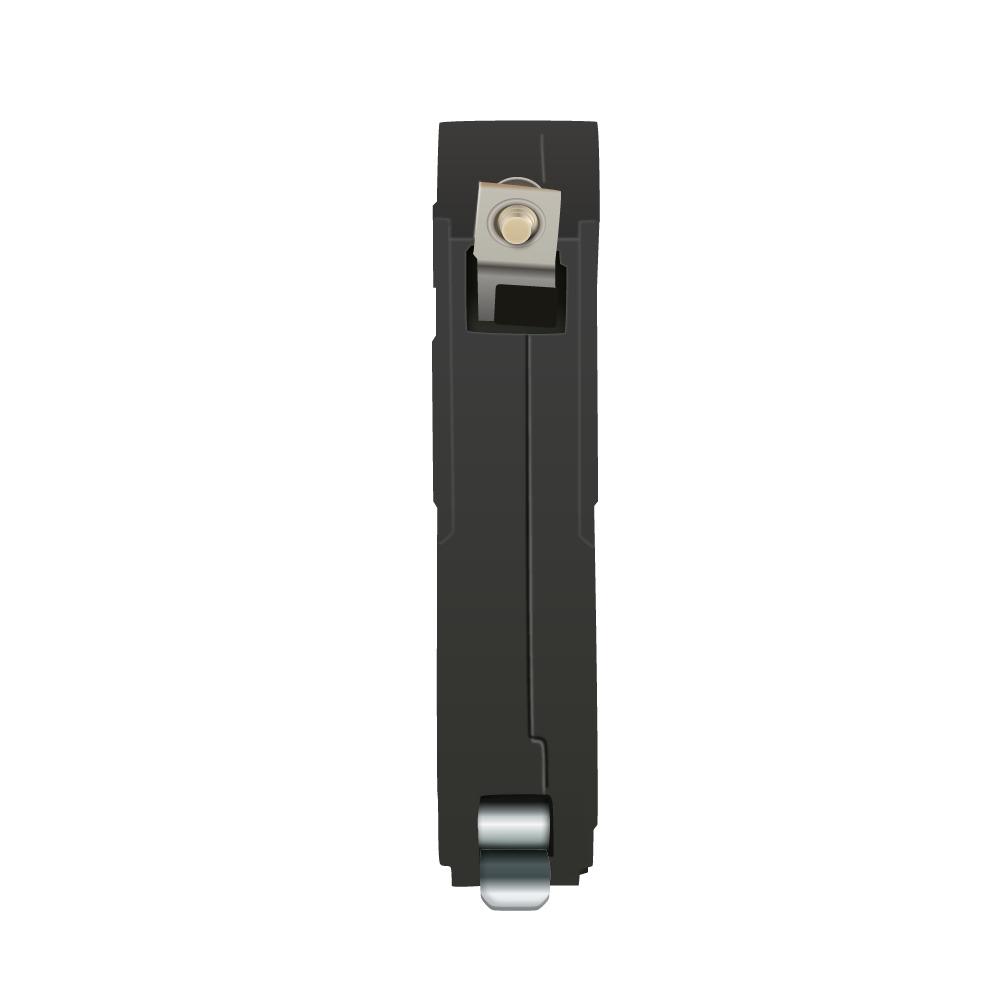

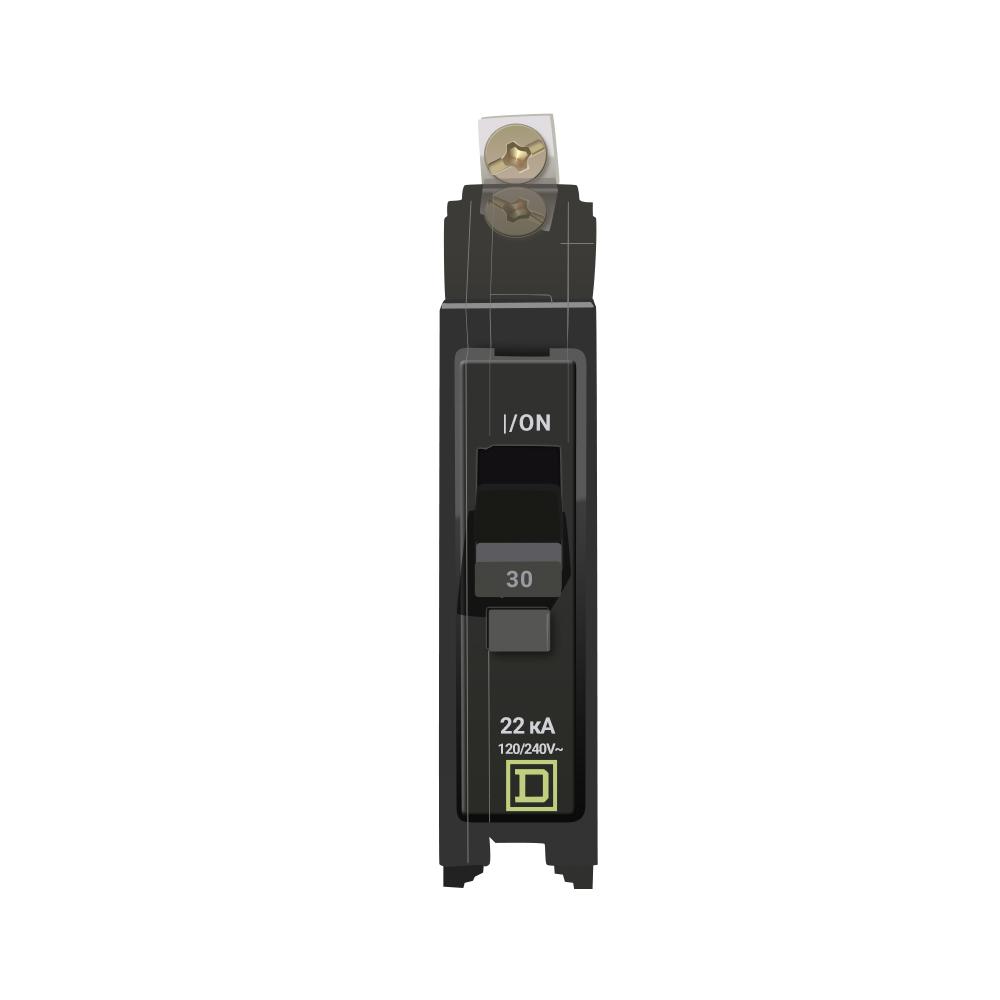

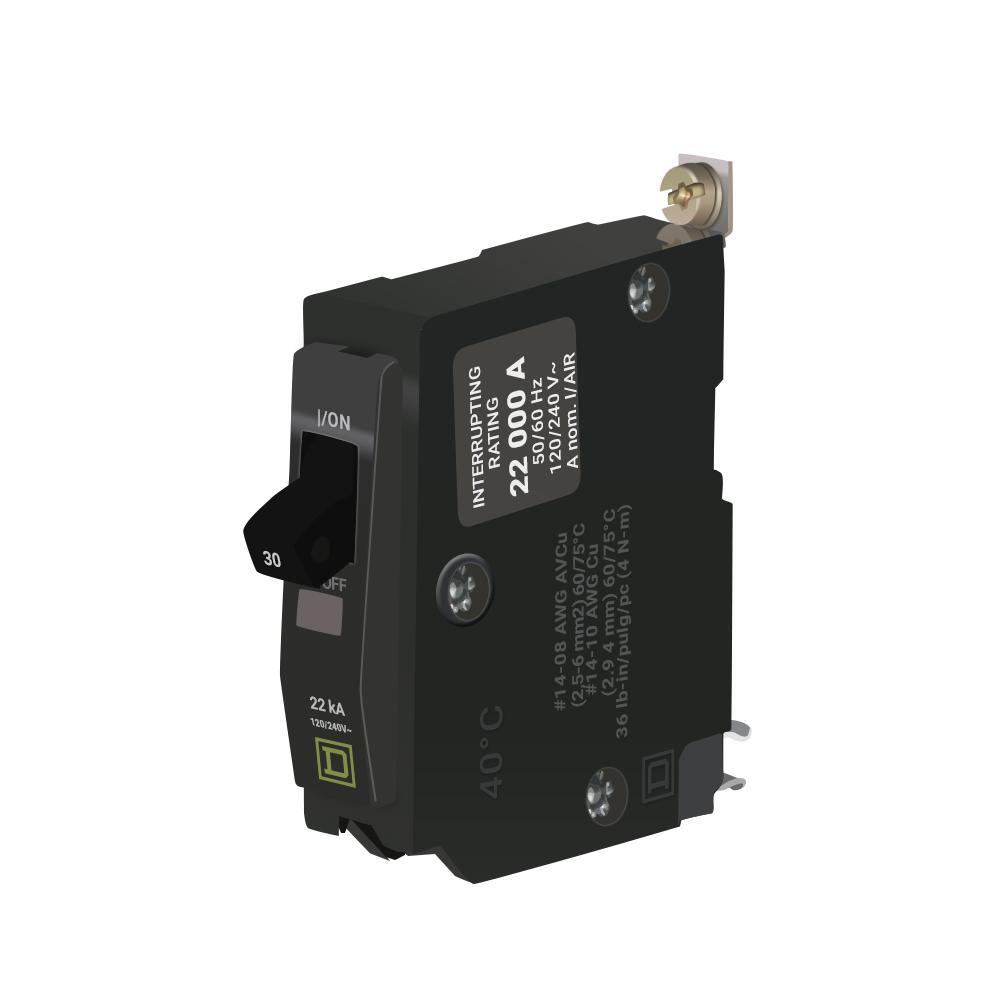

QOB130VH - Square D Bolt-On Circuit Breaker

Square D bolt-on circuit breaker has a voltage rating of 120/240 Volts current rating of 30 Amps and interrupting rating of 22 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 8 - 2 AWG.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 30 A
• System Voltage: 120 V AC, 120/240 V AC
• Mounting Type: Bolt-on
• Number of Poles: 1P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Pressure plate
• Inturrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
• Number of Panel Spaces: 1
• Wire Size: AWG 14...AWG 8 (copper or aluminium)
• Height: 3 in
• Depth: 2.91 in
• Width: 0.75 in
• Certifications: CSA, UL listed
• Ambient Rating: 104 Degree F (40 Degree C)
• Authentic Square D Product
• Dimensions (H x W x L): 3" x 0.75" x 2.91"

Alt model: q0b130vh
