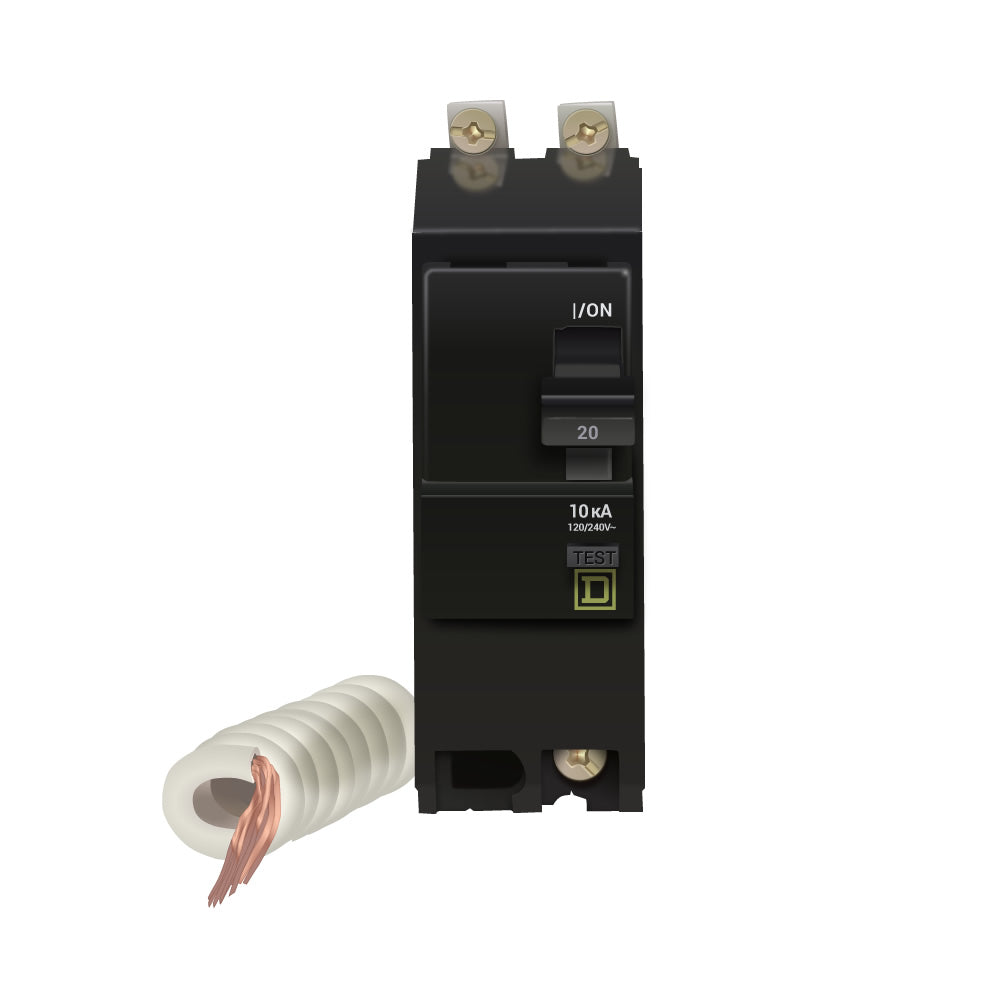

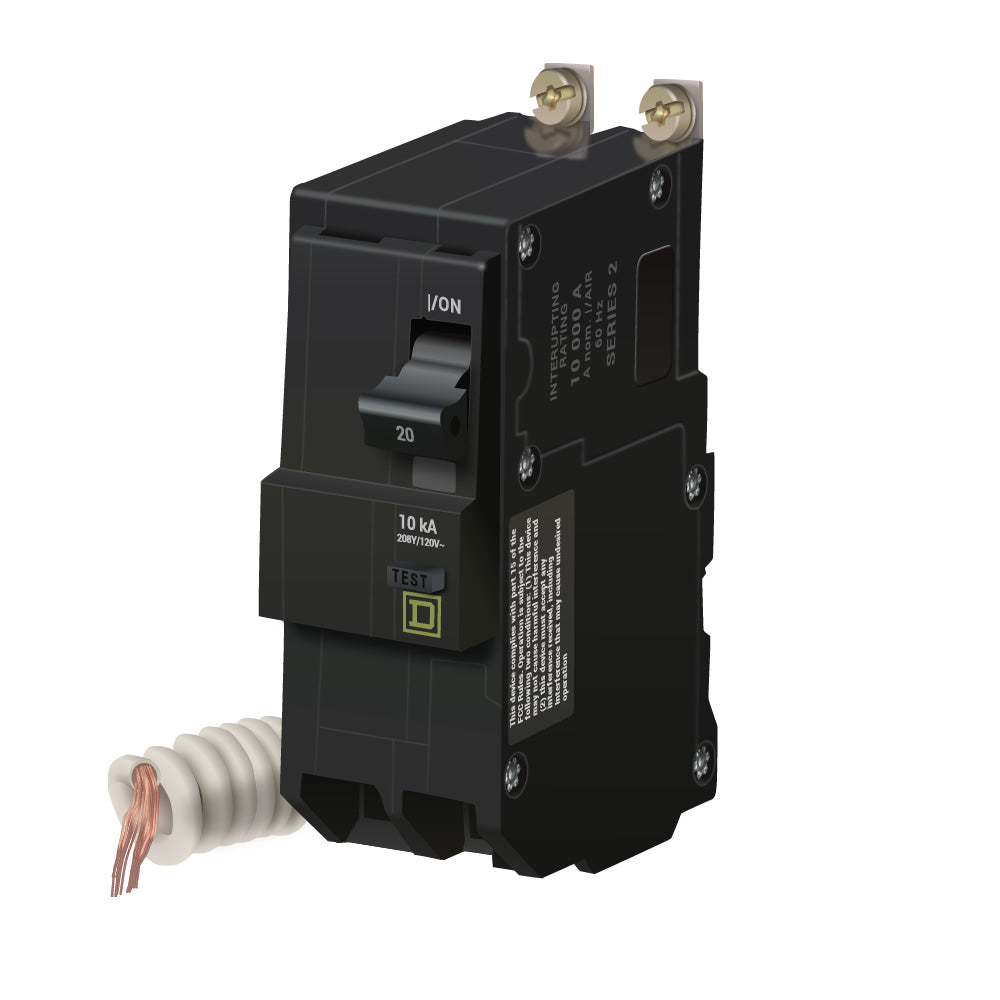

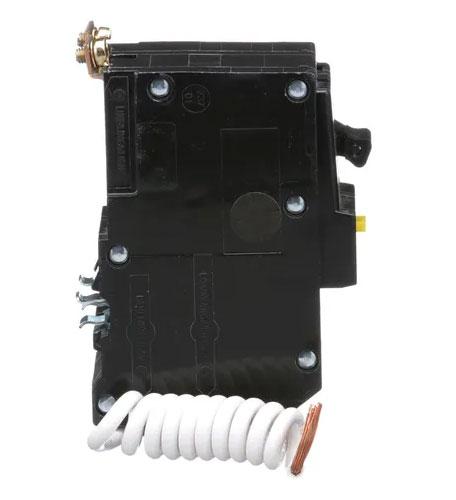

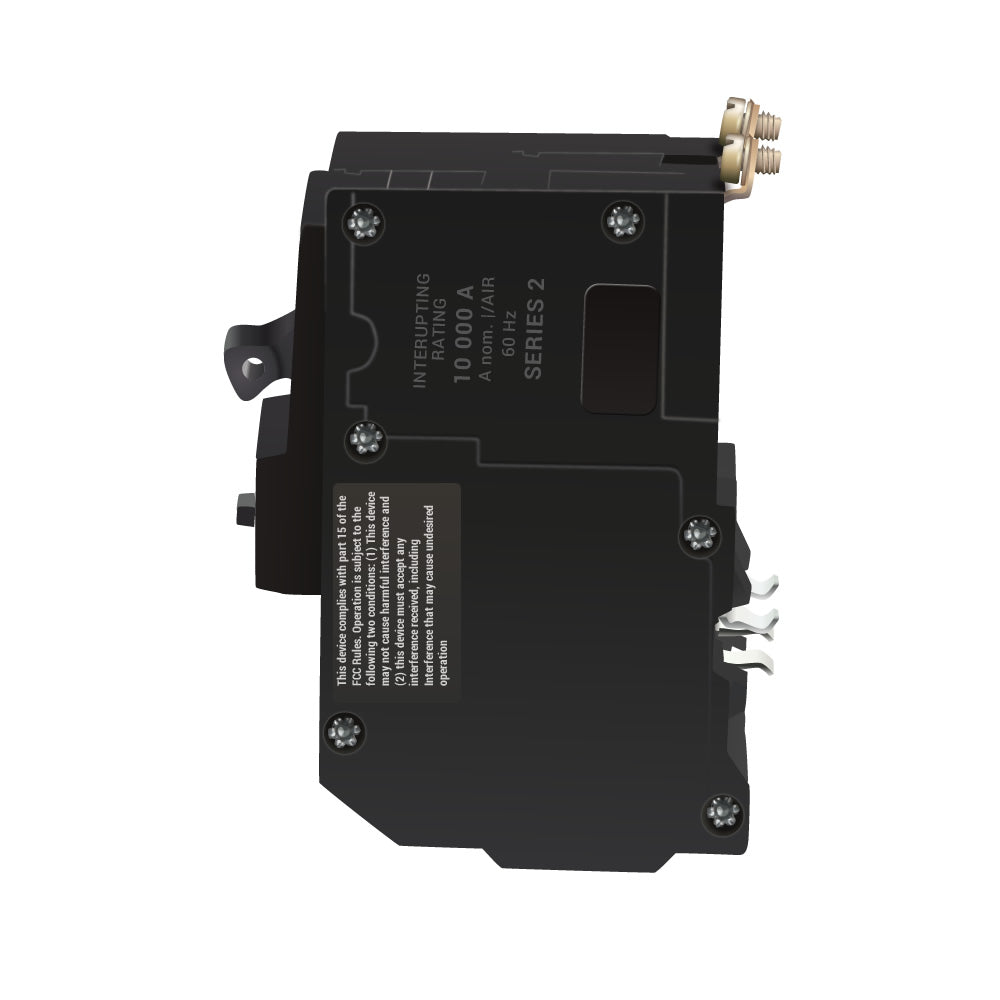

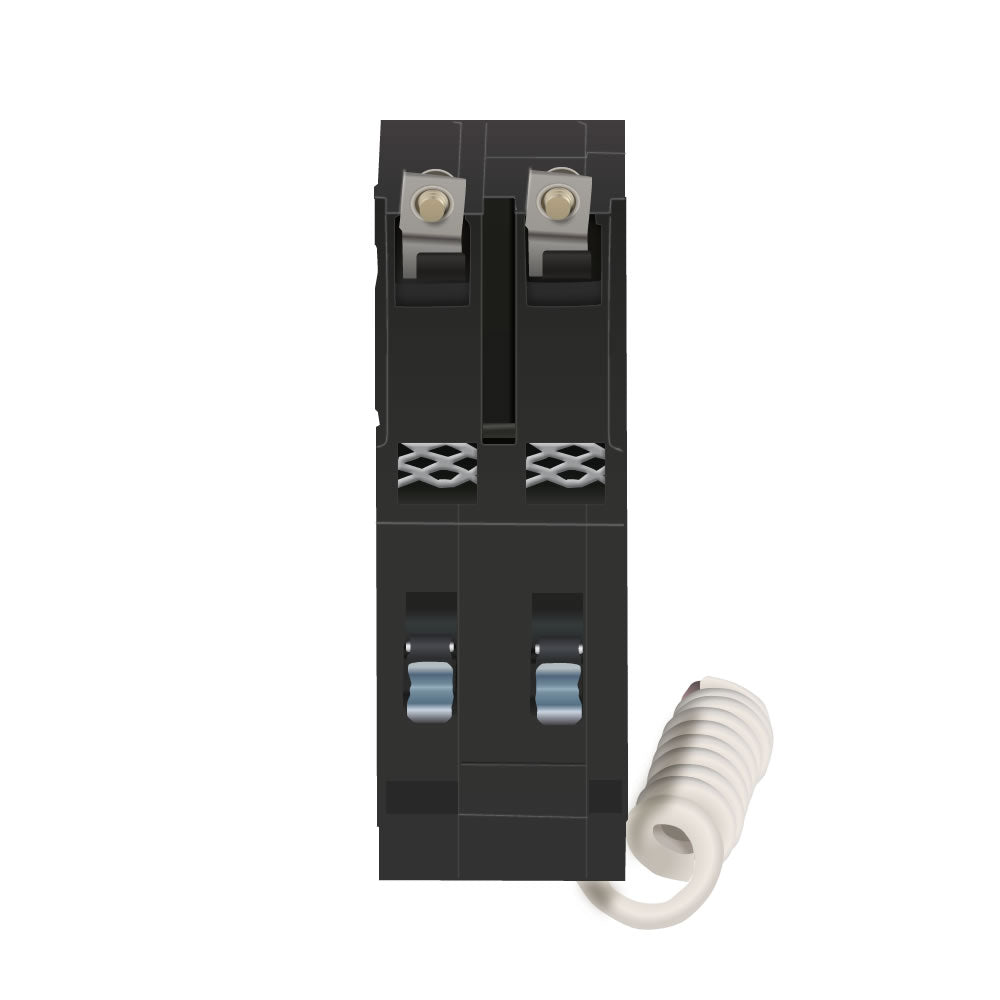

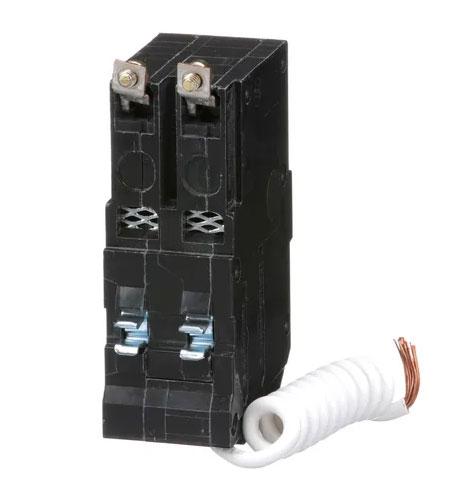

QOB220EPD - Square D - 20 Amp 30 mA GFEP Breaker

Bolt-On - 20 Amp - 2 Pole - 240 Volt

Schneider Electric SKU: QOB220EPD
QOB220EPD - Square D - 20 Amp 30 mA GFEP Breaker
QOB220EPD - Square D - 20 Amp 30 mA GFEP Breaker
QOB220EPD - Square D - 20 Amp 30 mA GFEP Breaker
QOB220EPD - Square D - 20 Amp 30 mA GFEP Breaker
QOB220EPD - Square D - 20 Amp 30 mA GFEP Breaker
QOB220EPD - Square D - 20 Amp 30 mA GFEP Breaker

Images are for reference only

QOB220EPD - Square D - 20 Amp 30 mA GFEP Breaker

Bolt-On - 20 Amp - 2 Pole - 240 Volt

Schneider Electric SKU: QOB220EPD
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - QOB220EPD - Square D - 20 Amp 30 mA GFEP Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

QOB220EPD - Square D 30 mA Ground Fault (GFCI) Breaker

Square D bolt-on circuit breaker has a voltage rating of 120/240 Volts current rating of 20 Amps and interrupting rating of 10 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 12 - 8 AWG.

Specifications:

  • Product: Miniature circuit-breaker
  • Range: QO
  • Line Rated Current: 20 A
  • System Voltage: 120 V AC, 120/240 V AC
  • Mounting Type: Bolt-on
  • Number of Poles: 2P
  • Circuit Breaker Type: Ground fault protecting class B 30 mA
  • Ratings: Not rated
  • Electrical Connection: Pressure plate
  • Inturrupt Rating: 10 kA at: 120/240 V AC 50/60 Hz, 10 kA at: 120 V AC 50/60 Hz
  • Number of Panel Spaces: 2
  • Wire Size: AWG 14...AWG 8 (copper), AWG 12...AWG 8 (aluminium)
  • Height: 4.12 in
  • Depth: 2.91 in
  • Width: 1.5 in
  • Certifications: CSA, UL listed
  • Ambient Rating: 104 Degree F (40 Degree C)
  • Authentic Square D Product
  • Dimensions (H x W x L): 4.12" x 1.5" x 2.91"

Alt model: q0b220epd
