Product Warranty - QOB3100VH - Square D - 100 Amp 22kA Circuit Breaker
All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

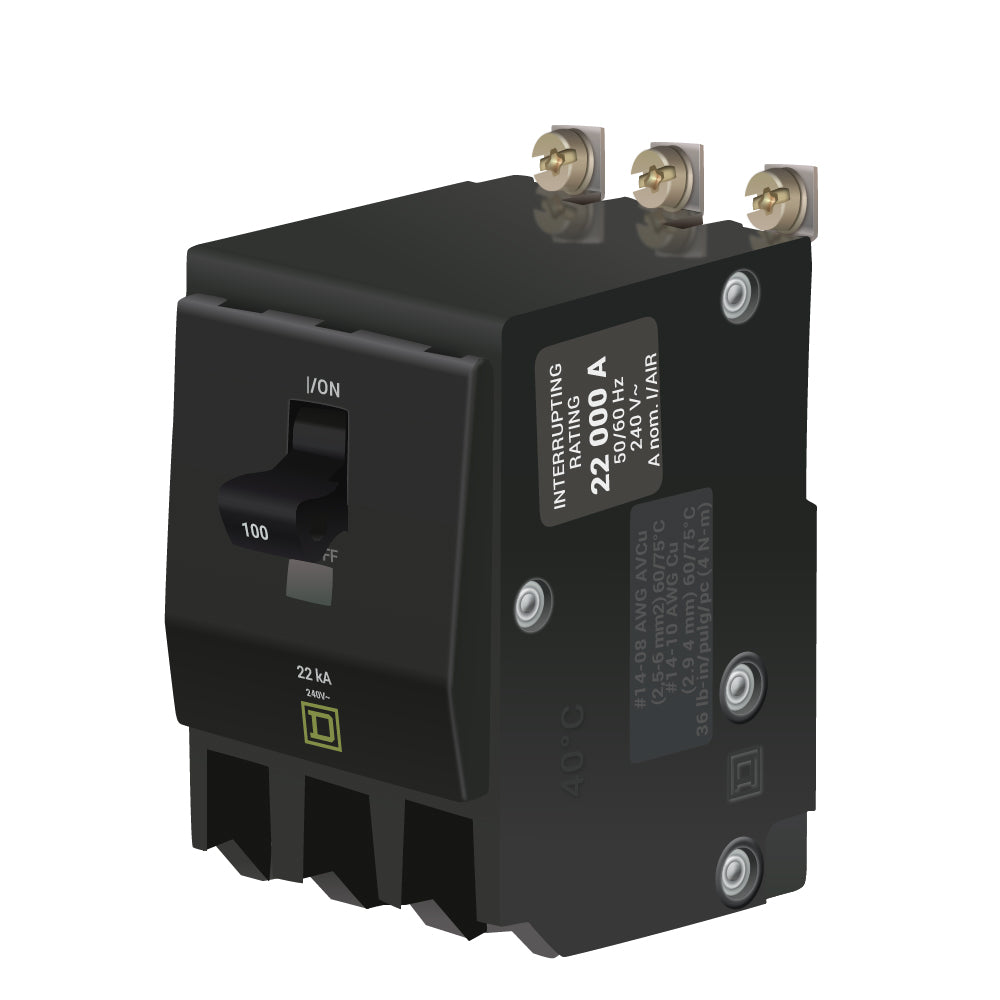

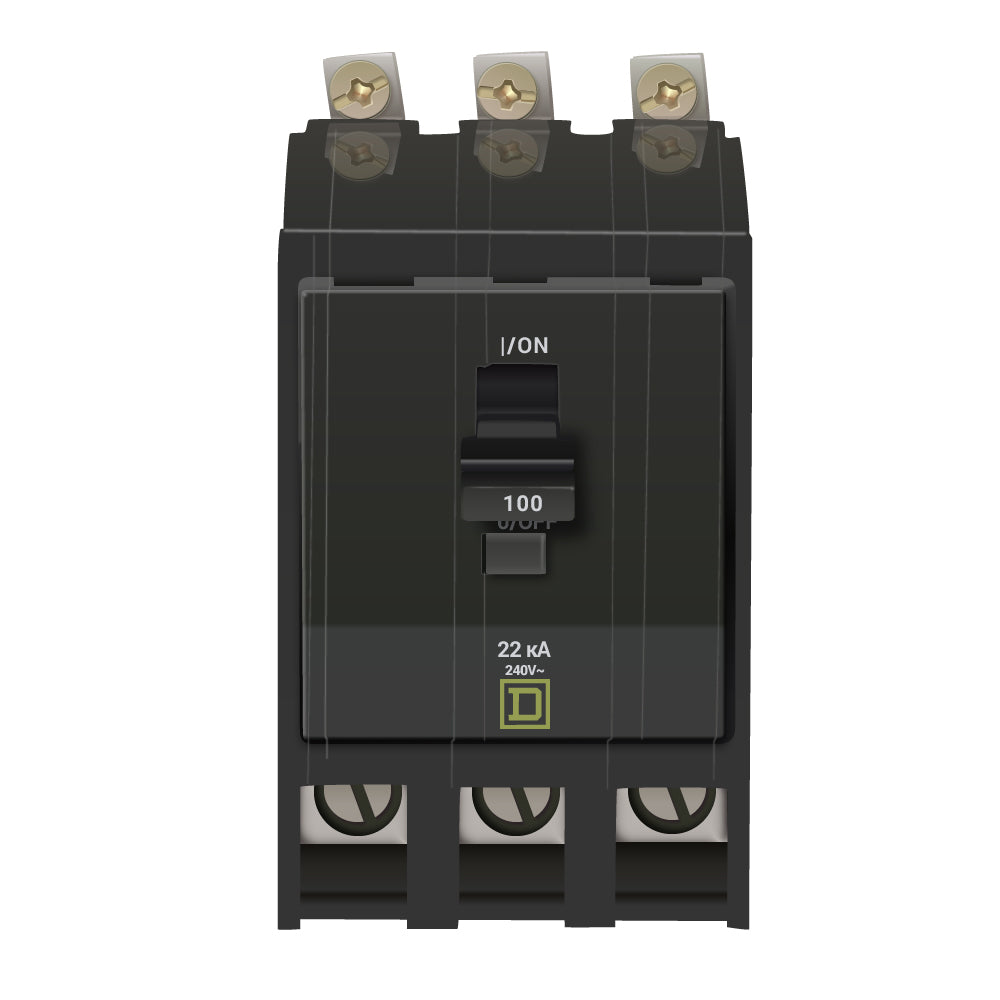

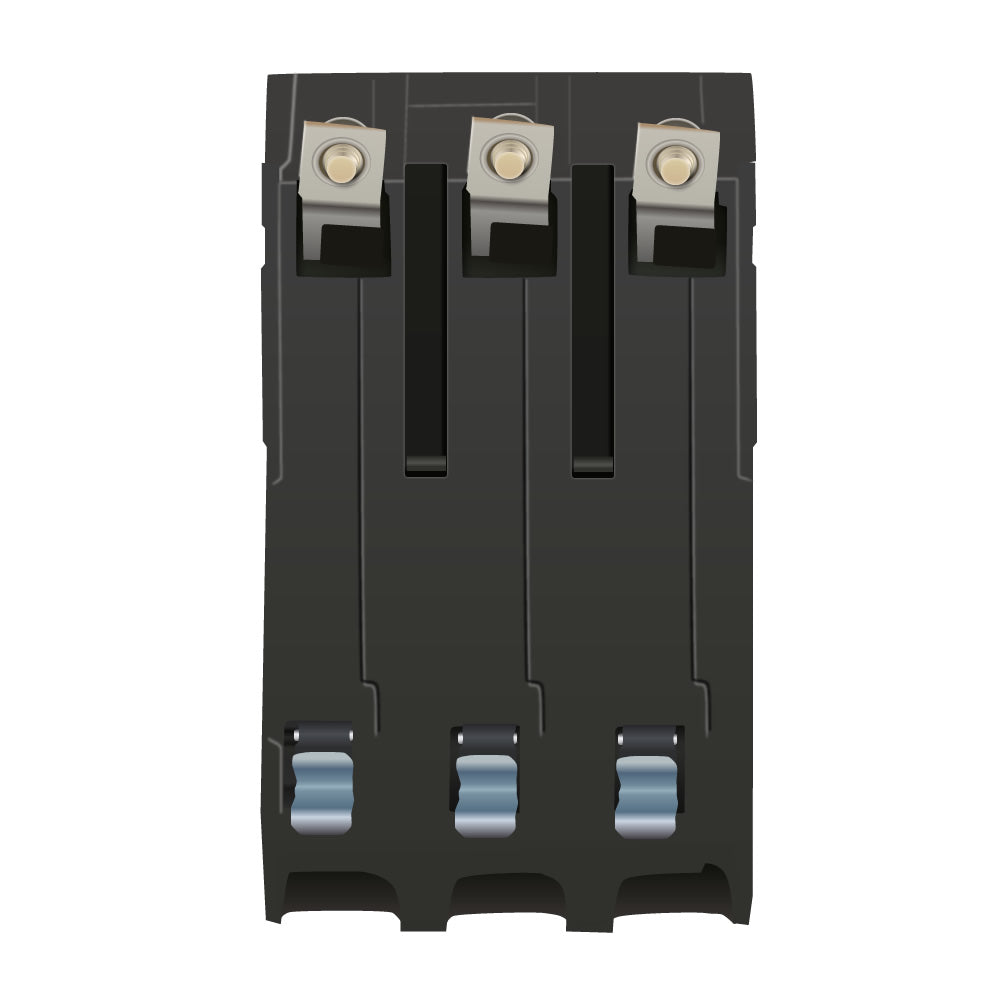

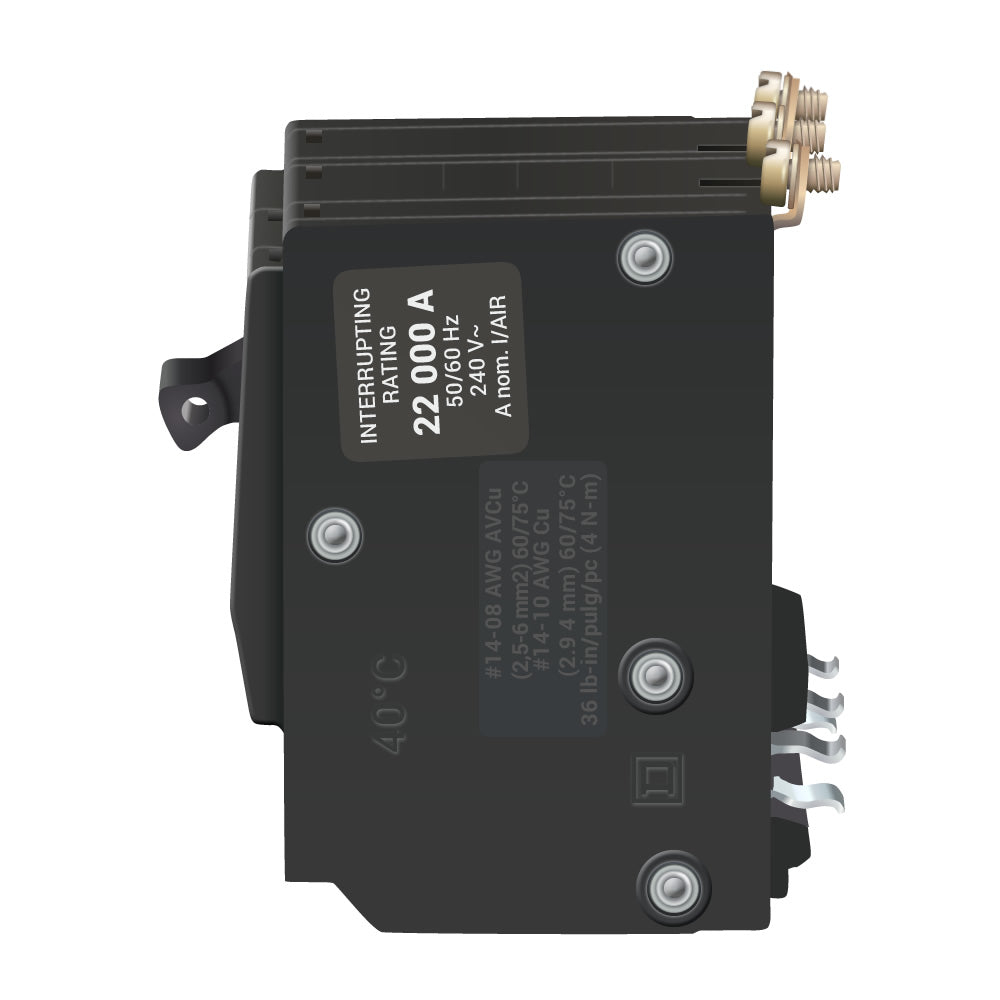

QOB3100VH - Square D Bolt-On 100 Amp Breaker
Schneider Electric/Square D Miniature circuit breaker with Visi-Trip indicator has box-type lugs to accommodate 4 AWG - 300 Kcmil copper and aluminum wires. The 3-Pole circuit breaker has voltage rating of 240 VAC current rating of 100 Amps and short-circuit current rating of 22 kilo-Amps.
Specifications:
- Product: Miniature circuit-breaker
- Range: QO
- Line Rated Current: 100 A
- System Voltage: 120 V AC, 120/240 V AC, 240 V AC
- Mounting Type: Bolt-on
- Number of Poles: 3P
- Circuit Breaker Type: Standard
- Ratings: HACR rated
- Electrical Connection: Box lugs
- Inturrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
- Number of Panel Spaces: 3
- Wire Size: AWG 4...AWG 2/0 (copper or aluminium)
-
Certifications: CSA, UL listed
- Ambient Rating: 104 Degree F (40 Degree C)
- Authentic Square D Product
- Dimensions (H x W x L): 3.5" x 2.25" x 2.91"
- 3 phase
Alt model: q0b3100vh
