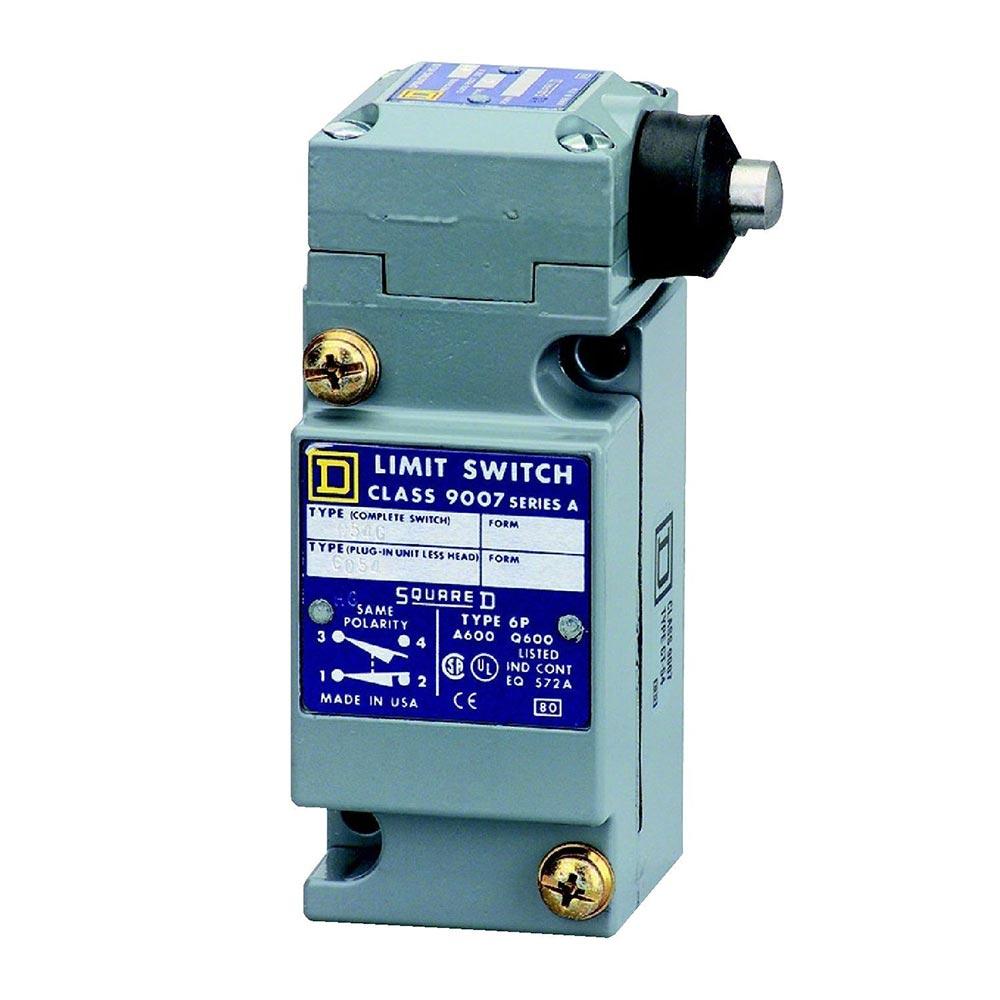

9007C54G - Square D Electric Limit Switch

Schneider Electric / Square D Heavy Duty Limit Switch Its Comapct and Easy to Install limit switches bodies are die-cast zinc alloy with adjustable side push rod plunger head and action type spring return Limit switch can withstand a temperature of -0 to 185 deg F Schneider Electric limit switch has a contact rate of 120/240/480/600 Vac 50/60 Hz 10 Ampere 125/250/600 Vdc 10 Ampere Heavy-duty limit switch is UL listed and CSA certified.

Specifications:

• Range of product: 9007
• Product specific application: Standard box
• Device short name: 9007C
• Body type: Plug-in
• Head type: Plunger head
• Material: Metal
• Fixing mode: By the body
• Movement of operating head: Linear
• Type of operator: Stainless steel spring return side plunger (-)
• Switch actuation: On end
• Type of approach: 1 direction lateral approach
• Electrical connection: (AWG 22...AWG 12) screw-clamp terminals, 1...2
• Cable entry: 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
• Number of poles: 1
• Contacts type and composition: NC-NO
• Contact operation: Snap action
• Positive opening: Without
• Sale per indivisible quantity: 1
• Body material: Zinc
• Head material: Zinc
• Switch function: SPDT-DB
• Contact form: Form Z
• Contacts material: Silver contacts
• Terminals description ISO n Degree 1: (1-2)NC, (3-4)NO
• Repeat accuracy: +/- 0.001 in linear travel of cam
• [Ie] rated operational current: 1.2 Aat 600 V AC, A600 conforming to NEMA, 0.1 Aat 600 V DC, Q600 conforming to NEMA
• [Ithe] conventional enclosed thermal current: 0.416666666666667
• [Ui] rated insulation voltage: 600 V degree of pollution 3 conforming to UL 508for contact block, 600 V degree of pollution 3 conforming to CSA C22.2 No 14for contact block
• [Uimp] rated impulse withstand voltage: 2.5 kV ACfor 1 min conforming to CE, 2.2 kV ACfor 1 min conforming to UL, 2.64 kV ACfor 1 s conforming to CSA
• Short-circuit protection: 10 A by CC fuse, protection type: non-time delay
• Electrical durability: 1000000 cycles
• Local signalling: Without
• Mechanical durability: 10000000 cycles
• Width: 1.55 in
• Height: 4.02 in
• Depth: 2.16 in
• Product weight: 1.25 lb(US)
• Shock resistance: 60 gn (duration = 9 ms) conforming to IEC 60068-2-27
• Vibration resistance: 25 gn (f = 10...150 Hz) conforming to IEC 60068-2-6
• NEMA degree of protection: NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250, NEMA 1 conforming to Nema type 250
• IP degree of protection: IP67 conforming to IEC 60529
• Electrical shock protection class: Class 0 conforming to IEC 61140
• Ambient air temperature for operation: -20...185 Degree Ffor standard environment
• Ambient air temperature for storage: -20...185 Degree F
• Environmental characteristic: Standard environment
• Protective treatment: Epoxy powder coat
• Authentic Square D Product
• Voltage Rating: 600 Volt
• Dimensions (H x W x L): 4.02" x 1.55" x 2.16"
