Product Warranty - QOU210 - Square D - 10 Amp Circuit Breaker
All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

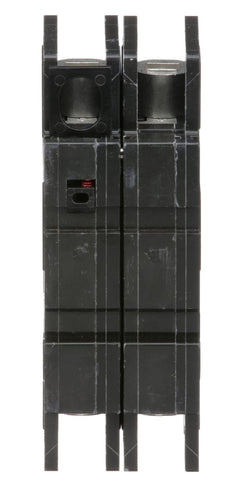

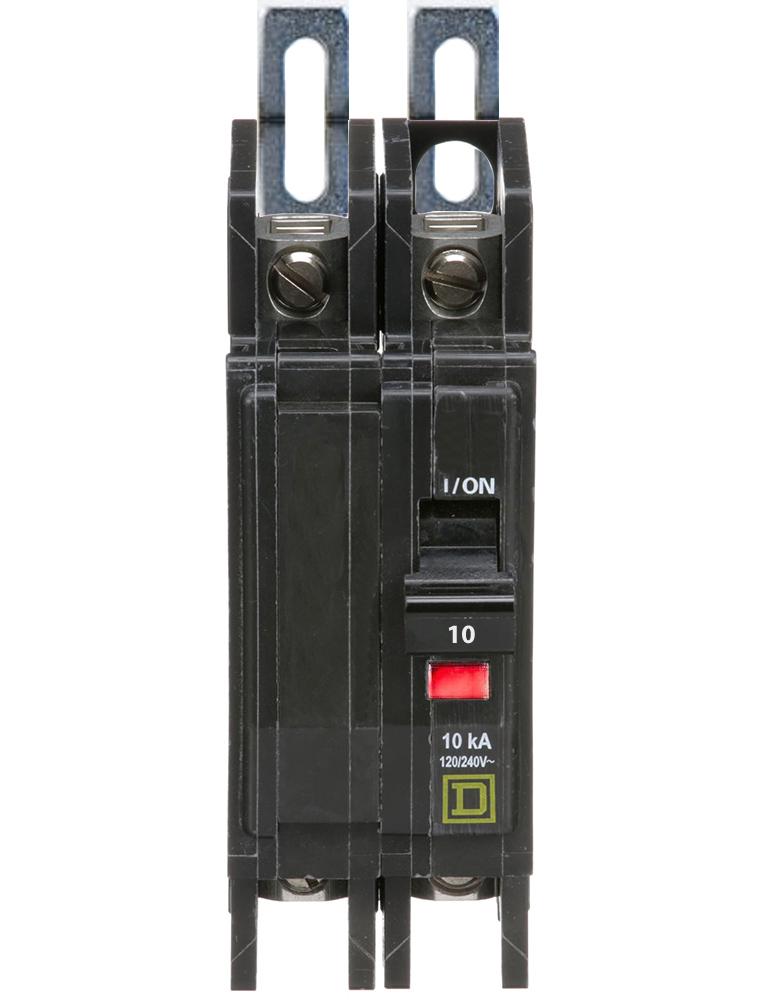

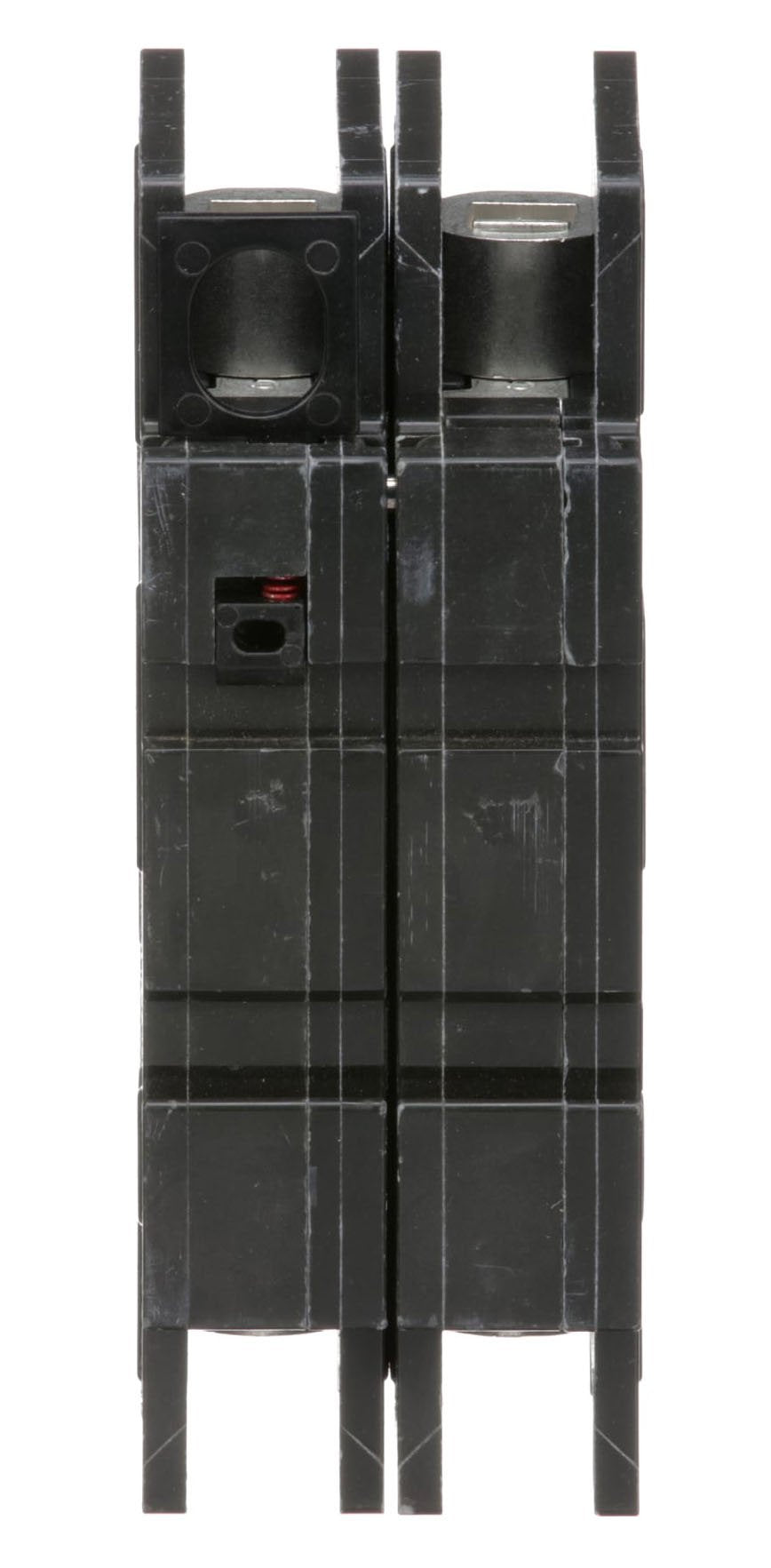

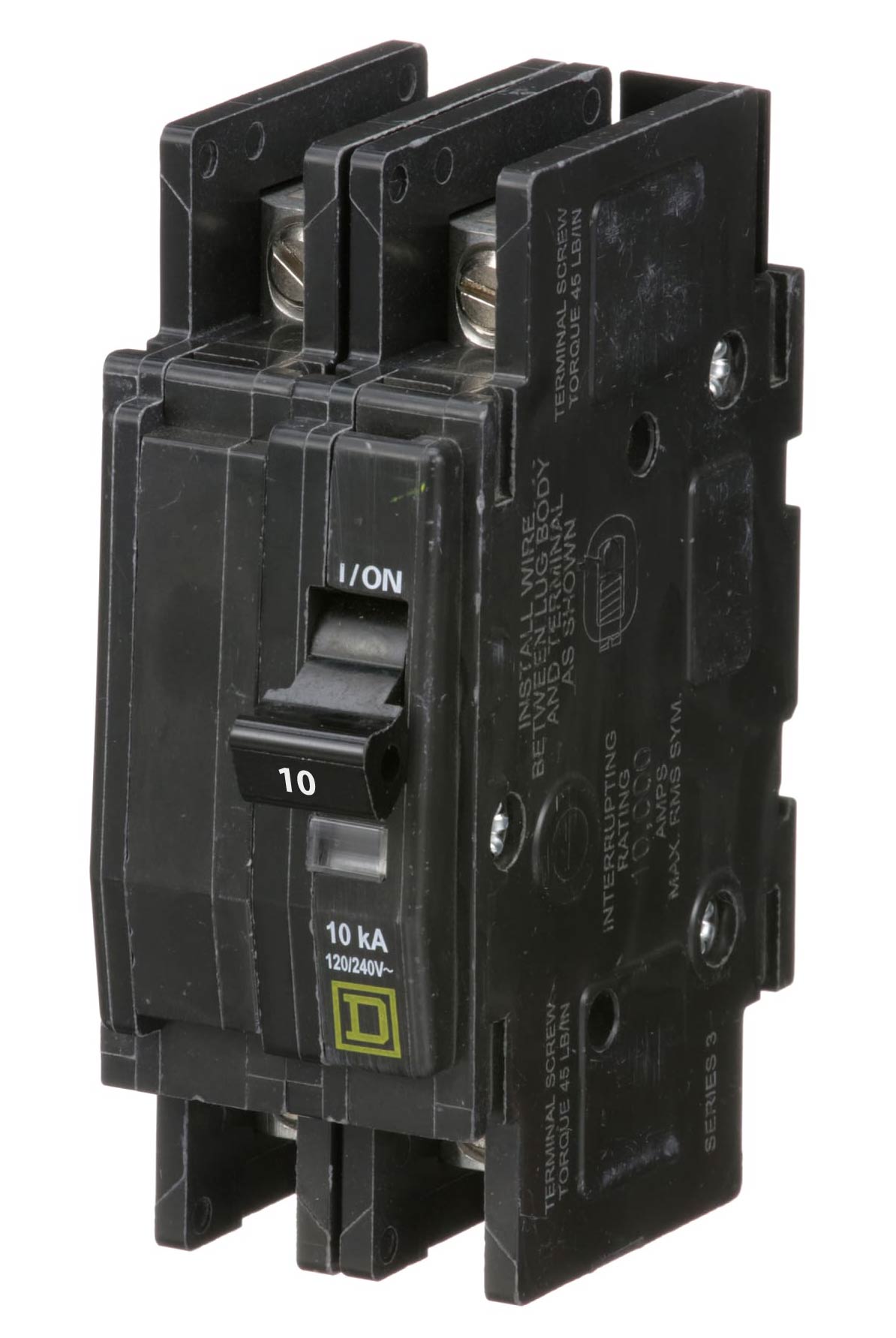

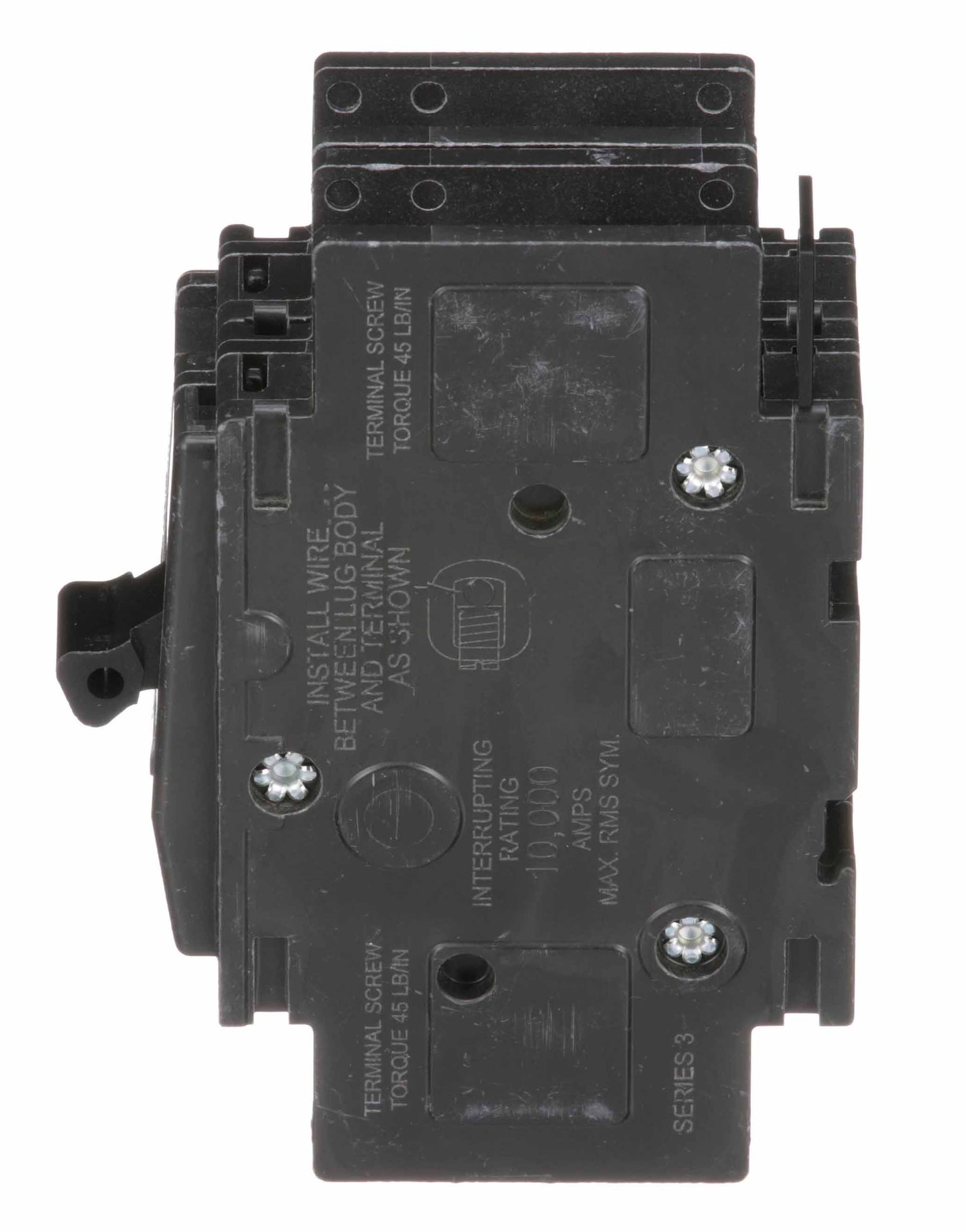

QOU210 - Square D Bolt-On Molded Case Circuit Breaker
Square D QOU series double pole 10 ampere bolt-on molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 240V complete with (LI) long-time and instantaneous trip functions.
Specifications:
- Product or component type: Miniature circuit-breaker
- Range of product: QOU
- Circuit breaker type: Standard
- Line Rated Current: 10 A
- Number of Poles: 2P
- Interrupt Rating: 10 kA at: 120/240 V AC, 5 kA at: 48 V DC, 10 kA at: 120 V AC
- Electrical connection: Slotted box lugs, line side, Slotted box lugs, load side
- System Voltage: 120 V AC, 120/240 V AC, 48 V DC
- Mounting mode: Unit mount
- AWG gauge: AWG 14...AWG 2 (aluminium/copper)
- Height: 4.45 in
- Depth: 2.95 in
- Width: 1.5 in
- Product certifications: CSA, IEC, UL listed
- Authentic Square D Product
- Dimensions (H x W x L): 4.45" x 1.5" x 2.95"
Alt model: q0u210
