Product Warranty - NEG3B070L - Siemens - Molded Case
All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.
Overview
Product Specifications - NEG3B070L Siemens Molded Case
-
Part Number:
NEG3B070L -
Manufacturer:
-
Family:
VL Series -
Pole:
3 -
Amp
70 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
EG Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
3 x 5.5 x 3. -
Weight:
3
Standards

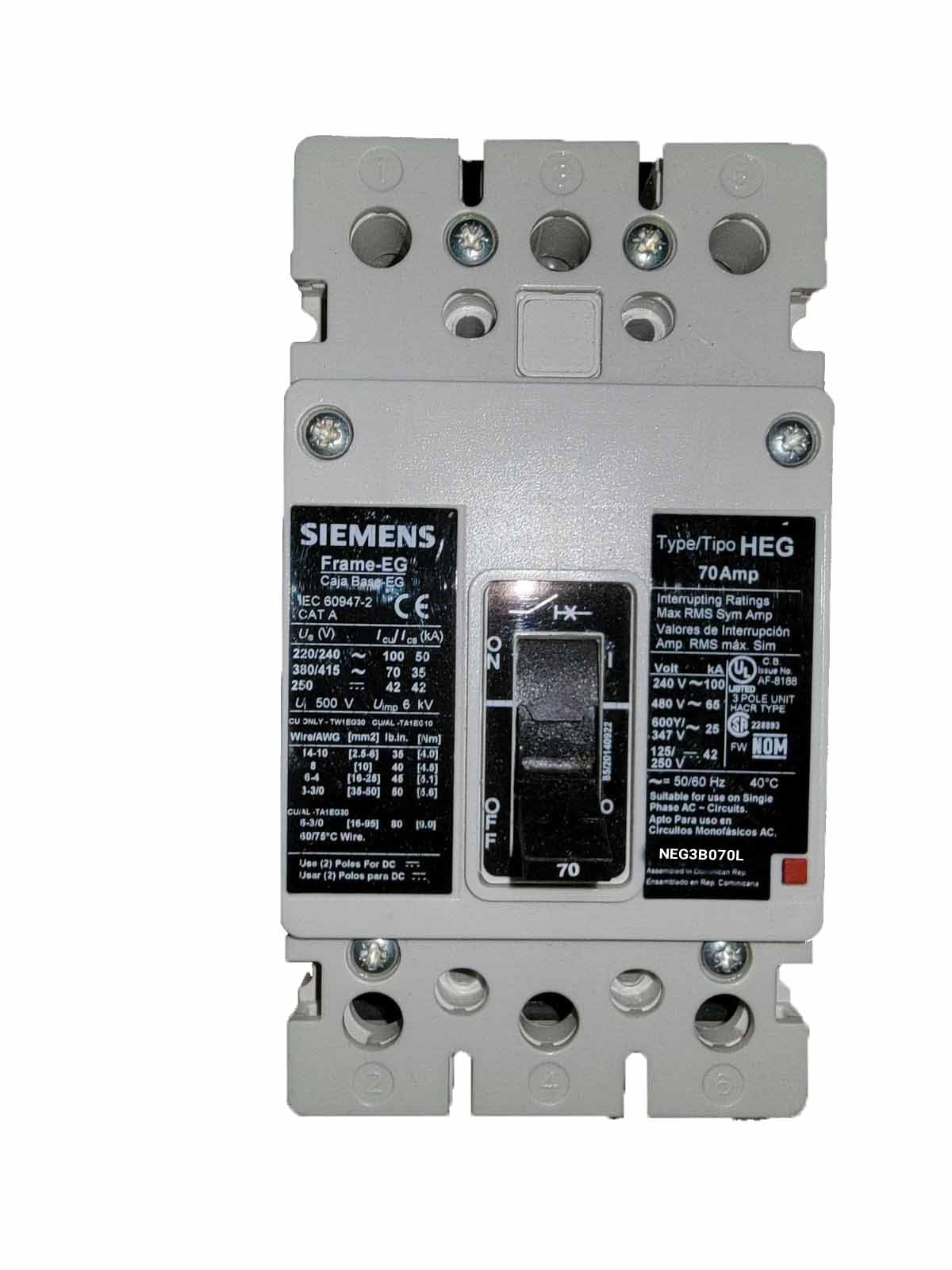

Product Description - NEG3B070L Siemens Molded Case
SIEMENS LOW VOLTAGE EG FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. UL LISTED NEG FRAME WITH STANDARD BREAKING CAPACITY. 70A 3-POLE (22KAIC AT 600Y/347V) (35KAIC AT 480V). SPECIAL FEATURES: LINE AND LOAD SIDE LUGS (TA1EG10) WIRE RANGE: 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN: 3 x 5.5 x 3.
