NGB2B030B - Siemens - Molded Case Circuit Breaker

Bolt On - 30 Amp - 2 Pole - 600 Volt

Siemens / ITE SKU: NGB2B030B
NGB2B030B - Siemens - Molded Case Circuit Breaker
NGB2B030B - Siemens - Molded Case Circuit Breaker
NGB2B030B - Siemens - Molded Case Circuit Breaker
NGB2B030B - Siemens - Molded Case Circuit Breaker

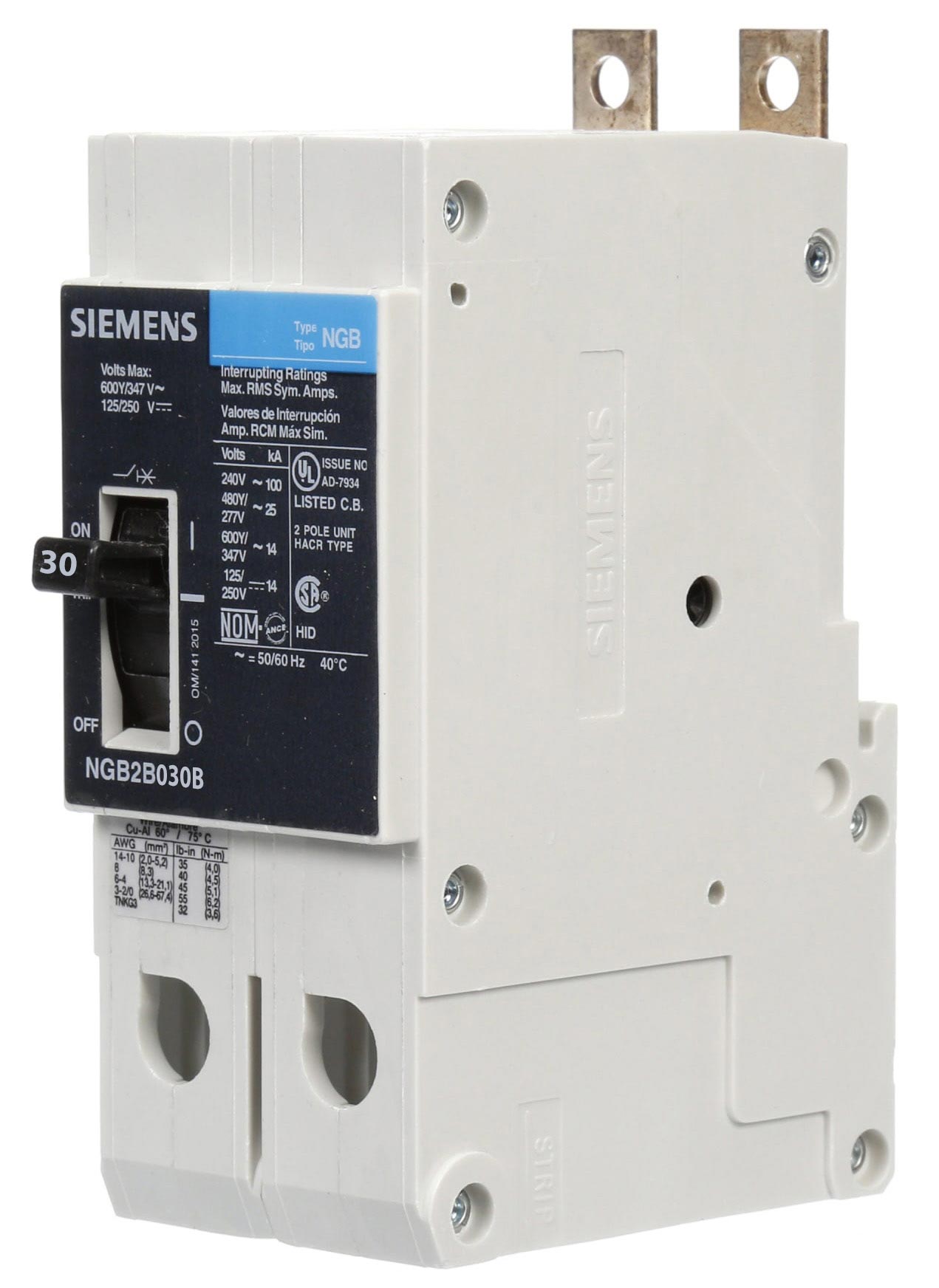

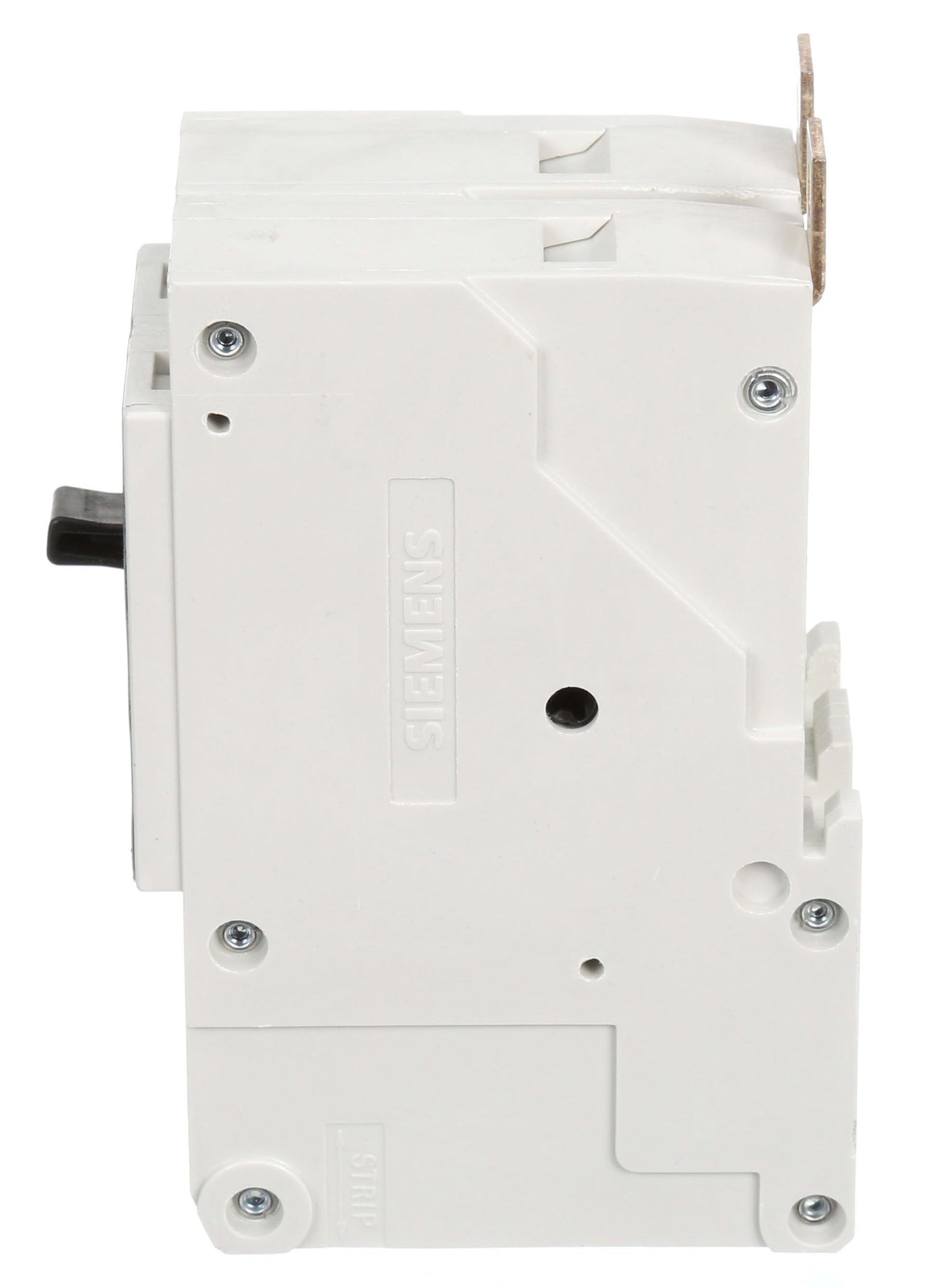

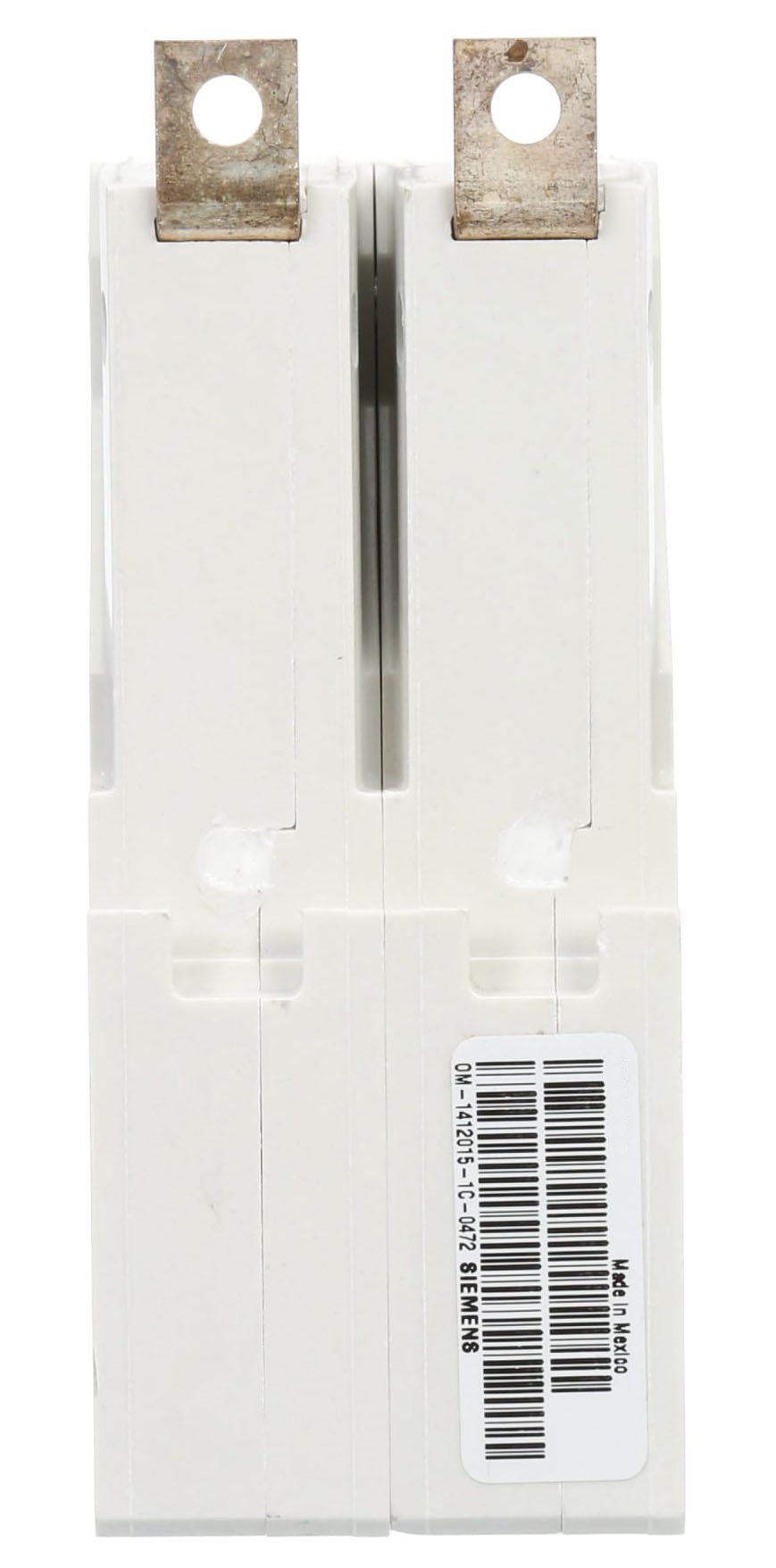

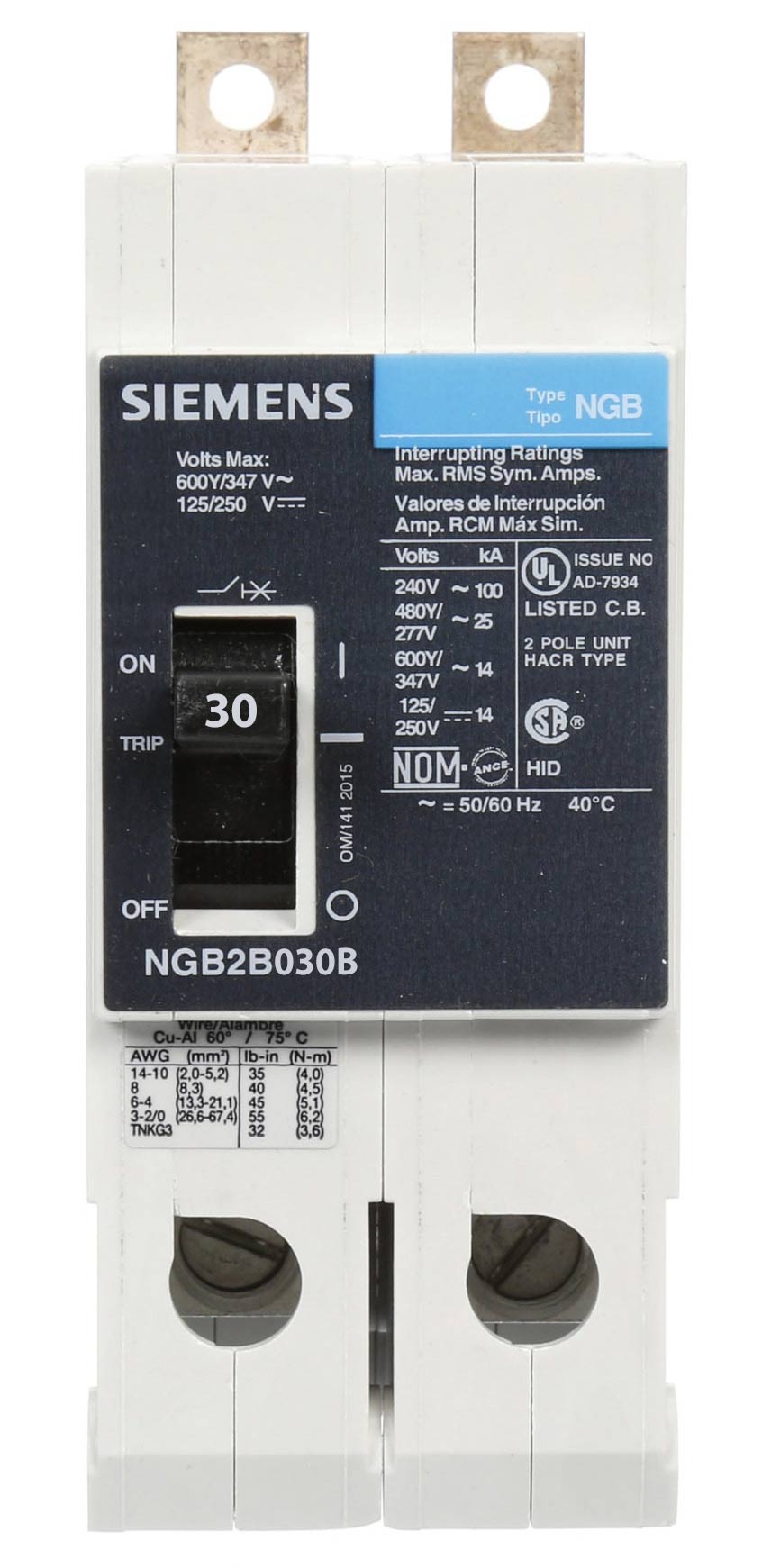

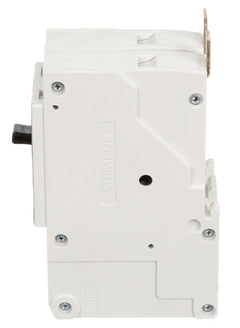

Images are for reference only

NGB2B030B - Siemens - Molded Case Circuit Breaker

Bolt On - 30 Amp - 2 Pole - 600 Volt

Siemens / ITE SKU: NGB2B030B
Regular price $385.99 CAD
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - NGB2B030B - Siemens - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - NGB2B030B - Siemens Molded Case Circuit Breaker

  • Part Number:

    NGB2B030B
  • Manufacturer:

  • Family:

    VL Series
  • Pole:

    2
  • Amp

    30
  • Volt:

    600
  • Phase:

    1
  • Category:

  • Connection:

    Bolt-On
  • Type:

    NGB
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Thermal Magnetic
  • AIC Ratings:

    25kA@480V

Dimensions

  • Dimensions (HxWxD):

    2" x 5.54" x 2.8"
  • Weight:

    1.85 lbs

Standards

CSA Approved logo

Product Description - NGB2B030B - Siemens Molded Case Circuit Breaker

Siemens, VL Series, type NGB, 2P, 1PH, 30A, 600V, 25kA@480V, standard interrupting capacity, panelboard mounting, suitable for reverse feed applications, bolt-on, complete with LI - Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic, molded case circuit breakers.


Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Data Sheet
