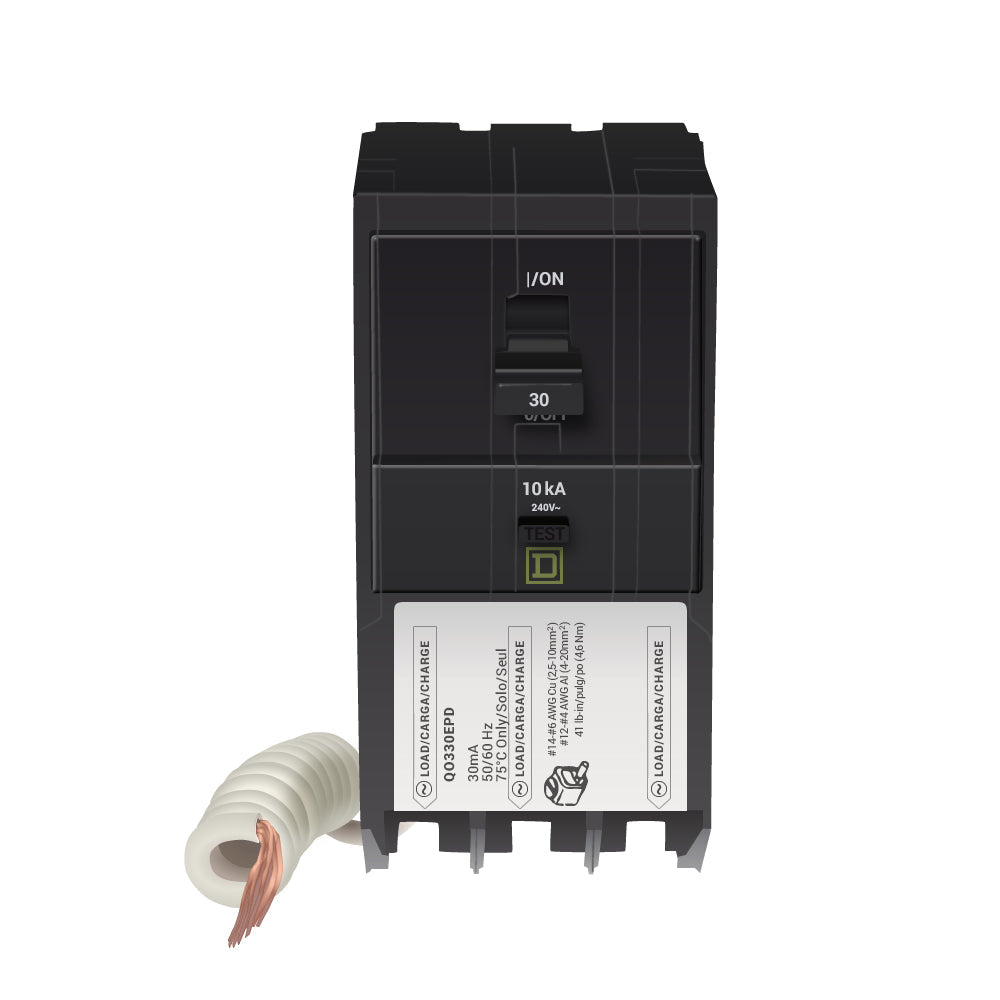

QO330EPD - Square D - Ground Fault Equipment Protection Breaker

Square D bolt-on circuit breaker has a voltage rating of 120/240 Volts current rating of 30 Amps and interrupting rating of 10 kilo-Amps. The 3-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 12 - 8 AWG.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 30 A
• System Voltage: 120 V AC, 120/240 V AC
• Mounting Type: Plug-in
• Number of Poles: 3P
• Circuit Breaker Type: Ground fault protecting class B 30 mA
• Ratings: Not rated
• Electrical Connection: Pressure plate
• Inturrupt Rating: 10 kA at: 120/240 V AC 50/60 Hz, 10 kA at: 120 V AC 50/60 Hz
• Number of Panel Spaces: 2
• Wire Size: AWG 14...AWG 8 (copper), AWG 12...AWG 8 (aluminium)
• Certifications: CSA, UL listed

• Ambient Rating: 104 Degree F (40 Degree C)
• Authentic Square D Product
• Dimensions (H x W x L): 4.12" x 2.24" x 2.91"

Alt model: q0330epd
