PDG23F0030TFFJ - Eaton - Molded Case Circuit Breaker

Feed Thru - 30 Amp - 3 Pole - 600 Volt

Eaton Cutler-Hammer SKU: PDG23F0030TFFJ
PDG23F0030TFFJ - Eaton - Molded Case Circuit Breaker
PDG23F0030TFFJ - Eaton - Molded Case Circuit Breaker
PDG23F0030TFFJ - Eaton - Molded Case Circuit Breaker
PDG23F0030TFFJ - Eaton - Molded Case Circuit Breaker
PDG23F0030TFFJ - Eaton - Molded Case Circuit Breaker

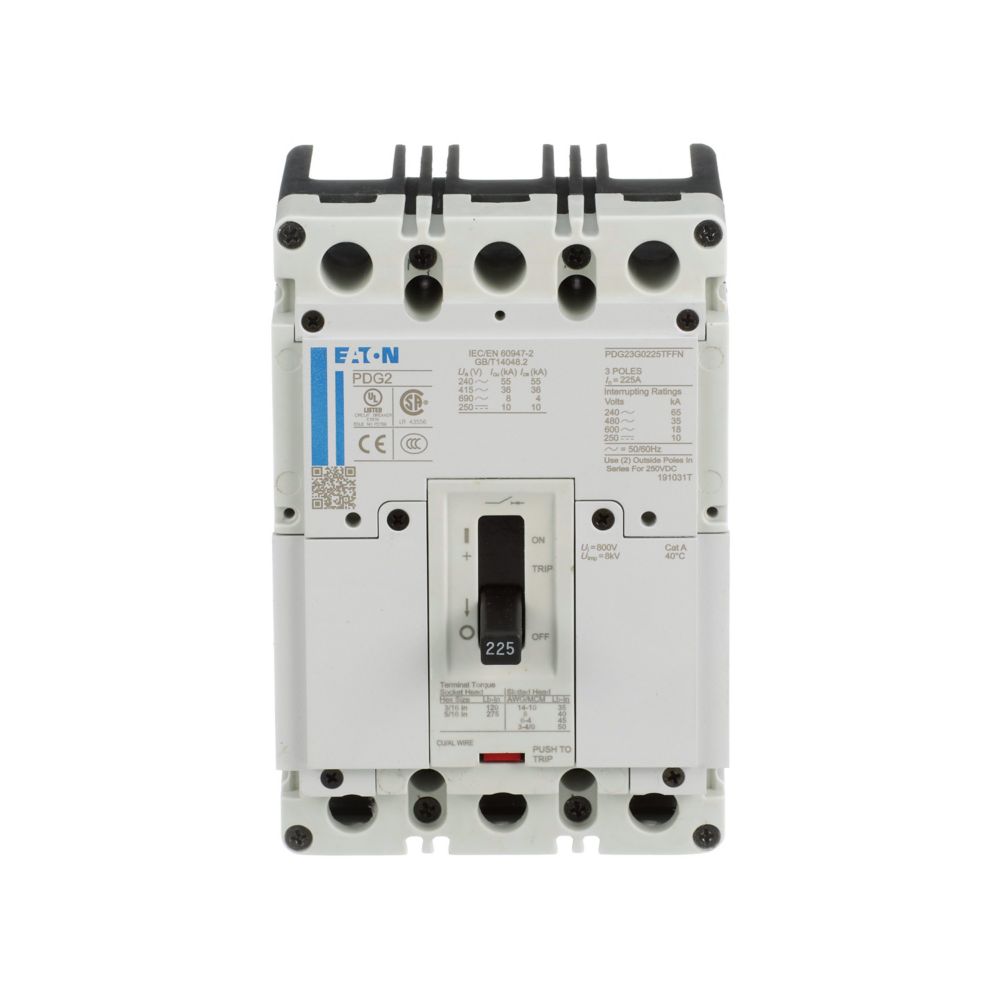

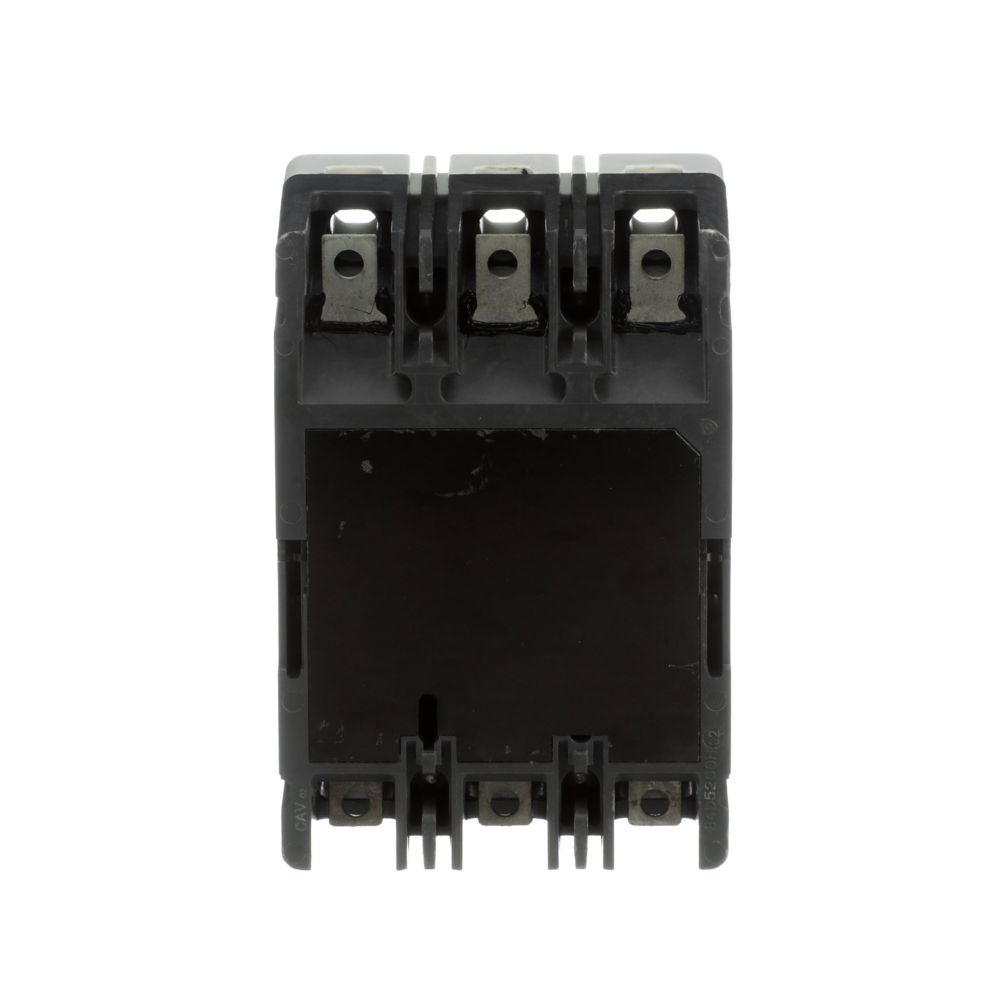

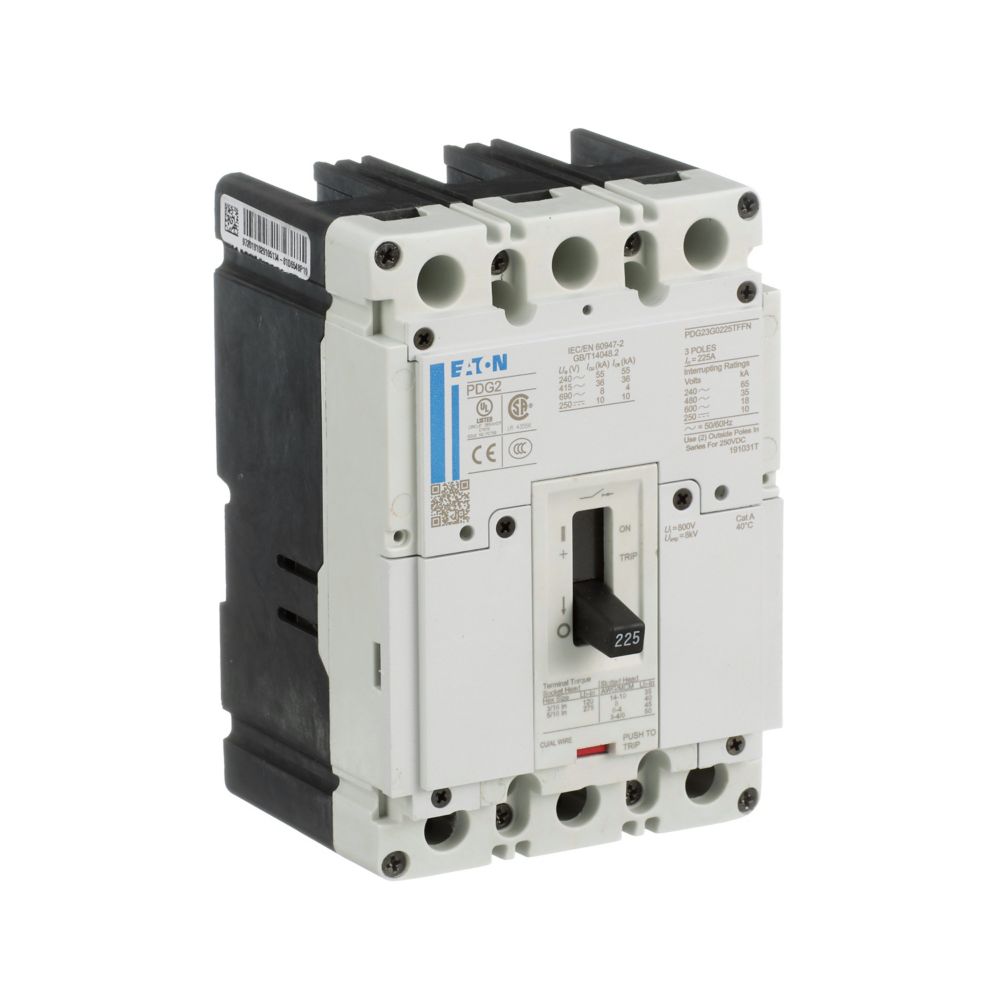

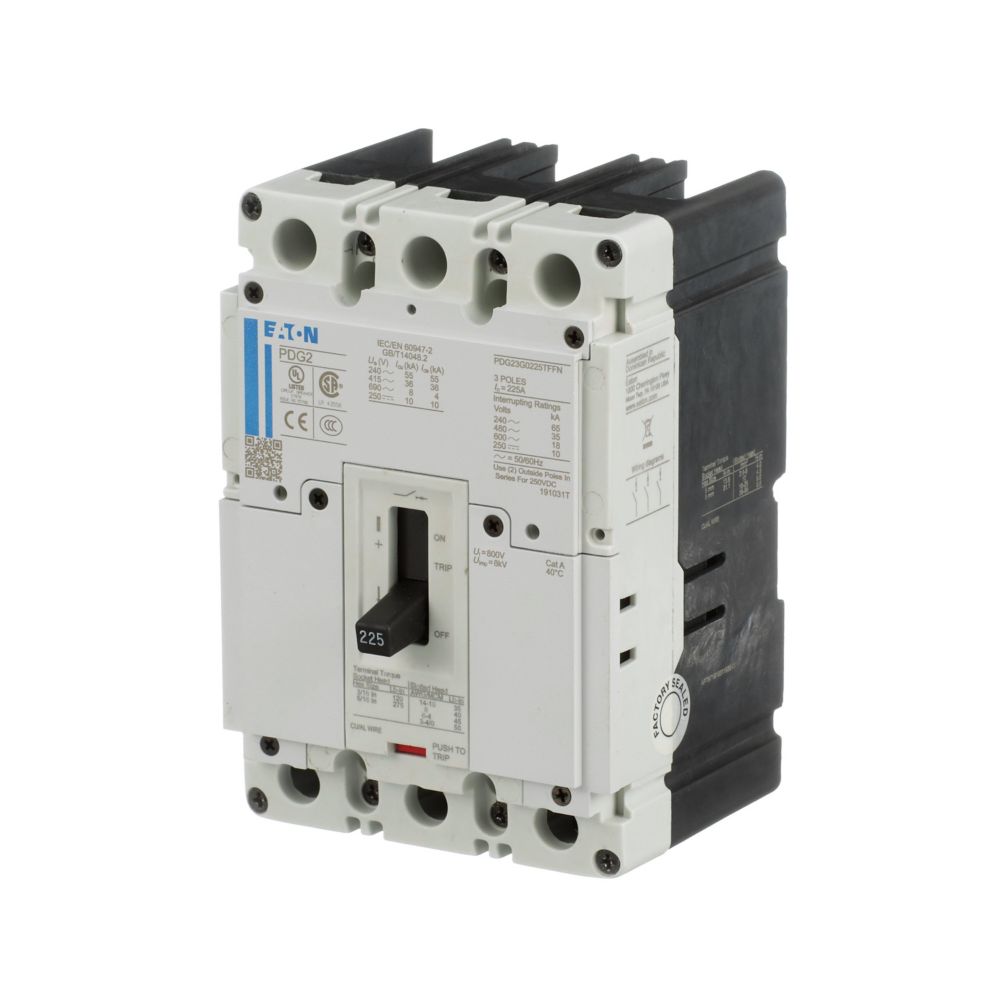

Images are for reference only

PDG23F0030TFFJ - Eaton - Molded Case Circuit Breaker

Feed Thru - 30 Amp - 3 Pole - 600 Volt

Eaton Cutler-Hammer SKU: PDG23F0030TFFJ
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - PDG23F0030TFFJ - Eaton - Molded Case Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

Overview

Product Specifications - PDG23F0030TFFJB - Eaton Molded Case Circuit Breaker

  • Part Number:

    PDG23F0030TFFJ

  • Manufacturer:

    Eaton Cutler-Hammer

  • Family:

    Power Defense

  • Pole:

    3

  • Amp

    40

  • Volt:

    600

  • Phase:

    3

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    PDG

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    25kA@480V

  • Frame Type:

    Frame 2

Dimensions

  • Dimensions (HxWxD):

    5.75" x 4.12" x 3.5"

  • Weight:

    4 lbs

Standards

CSA Approved logo

Product Description - PDG23F0030TFFJB - Eaton Molded Case Circuit Breaker

Eaton Power Defense Molded Case Circuit Breaker, Globally Rated, Frame 2, Three Pole, 30A, 25Ka/480V, T-M (Fxd-Fxd) Tu, Standard Line And Load (Pdg2X3T100)

Frame Size 2 covers a range of 15 A through 225 A with a complete offering of trip units, including PXR electronic trip units and fixed-fixed thermalmagnetic trip units.

Frame Size 2 can be used to meet a wide range of circuit protection and power distribution needs, including ground fault protection and current limiting options. PXR trip units in PD-2 provide all levels of protection, including energy metering with multiple communication schemes, breaker health indication, and zone selective interlocking with visual indication.

Frame Size 2 breakers are available in multiple ratings from 15 A through 225 A. They are configured with a trip unit from the factory. Accessories are modular in design to allow for field installation or factory configuration. PXR trip units are available with advanced features to provide customers unparalleled situational awareness of their electrical system.

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions
