CHMDL3800F - Eaton - Frame

Bolt-On - 800 Amp - 3 Pole - 600 Volt

Eaton Cutler-Hammer SKU: CHMDL3800F

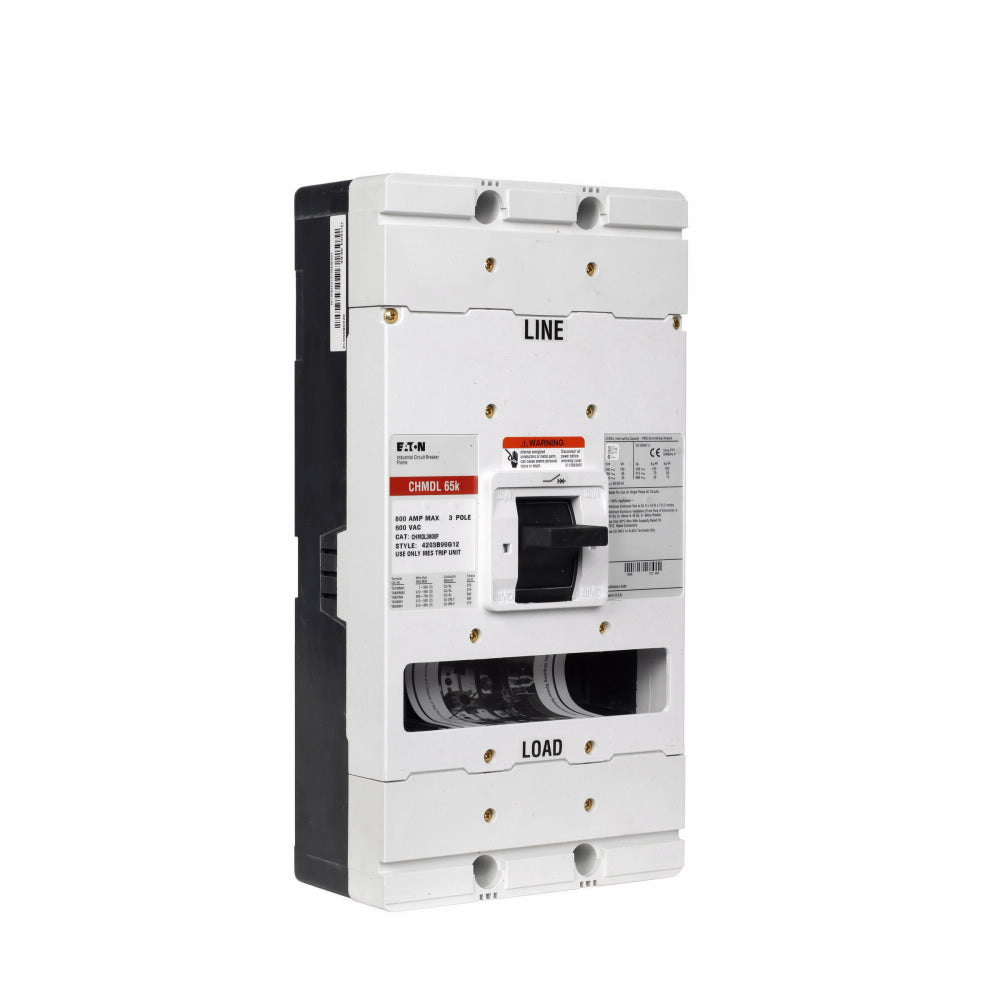

CHMDL3800F - Eaton - Molded Case Circuit Breaker
CHMDL3800F - Eaton - Frame

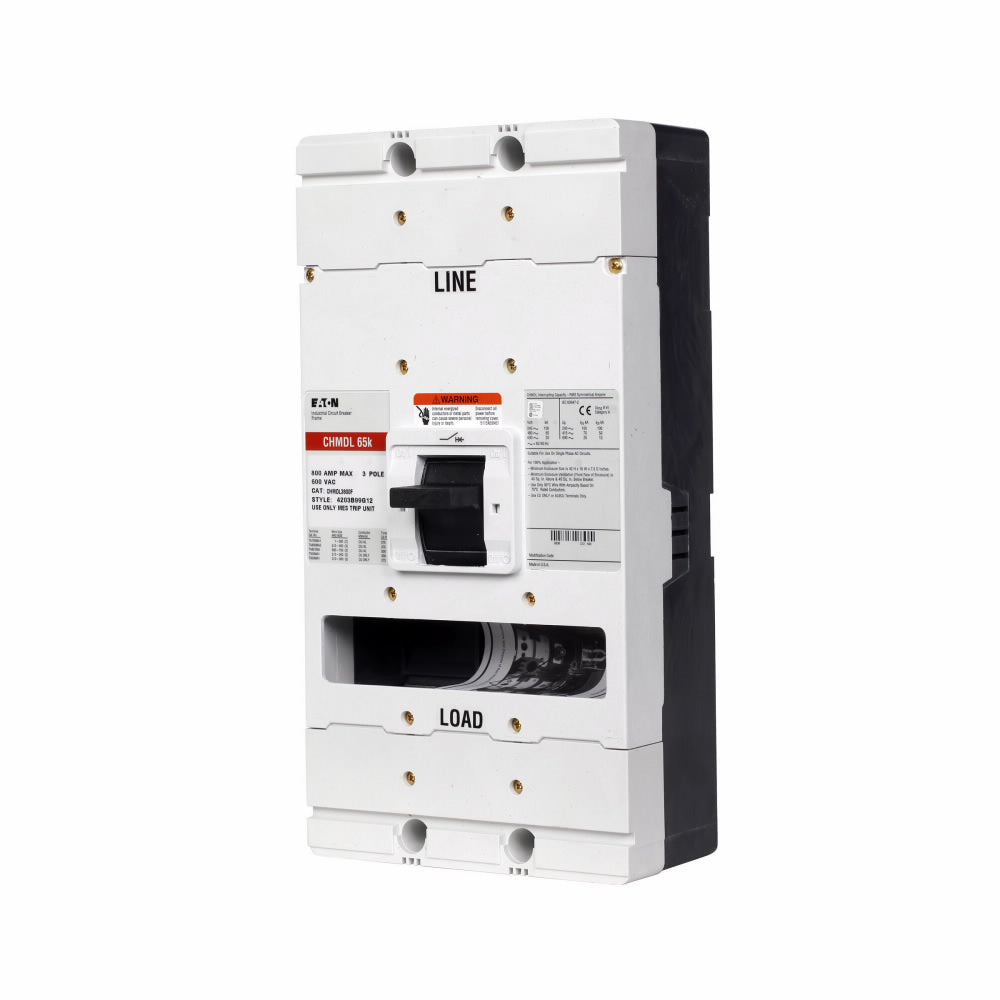

CHMDL3800F - Eaton - Molded Case Circuit Breaker

Images are for reference only

CHMDL3800F - Eaton - Frame

Bolt-On - 800 Amp - 3 Pole - 600 Volt

Eaton Cutler-Hammer SKU: CHMDL3800F
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - CHMDL3800F - Eaton - Frame

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

Overview

Product Specifications - CHMDL3800F - Eaton Molded Case Circuit Breaker

  • Part Number:

    CHMDL3800F

  • Manufacturer:

    Eaton Cutler-Hammer

  • Family:

    Series C

  • Pole:

    3

  • Amp

    800

  • Volt:

    600

  • Phase:

    3

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Bolt-On

  • Type:

    CHMDL

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    65kA@480V

  • Frame Type:

    M Frame

Dimensions

  • Dimensions (HxWxD):

    16" x 8.25" x 4.062"

  • Weight:

    1.1 lbs

Standards

CSA Approved logo

Product Description - CHMDL3800F - Eaton Molded Case Circuit Breaker

Cutler Hammer / Eaton / Westinghouse, Series C, type CHMDL, 100% rated, 3P, 3PH, 800A, 600V, 65kA@480V, high interrupting capacity, 40 degree C, bolt-on, frame only, thermal magnetic molded case circuit breakers.
