Product Warranty - XTCE050D00G - Eaton - Contactor
All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.
Overview

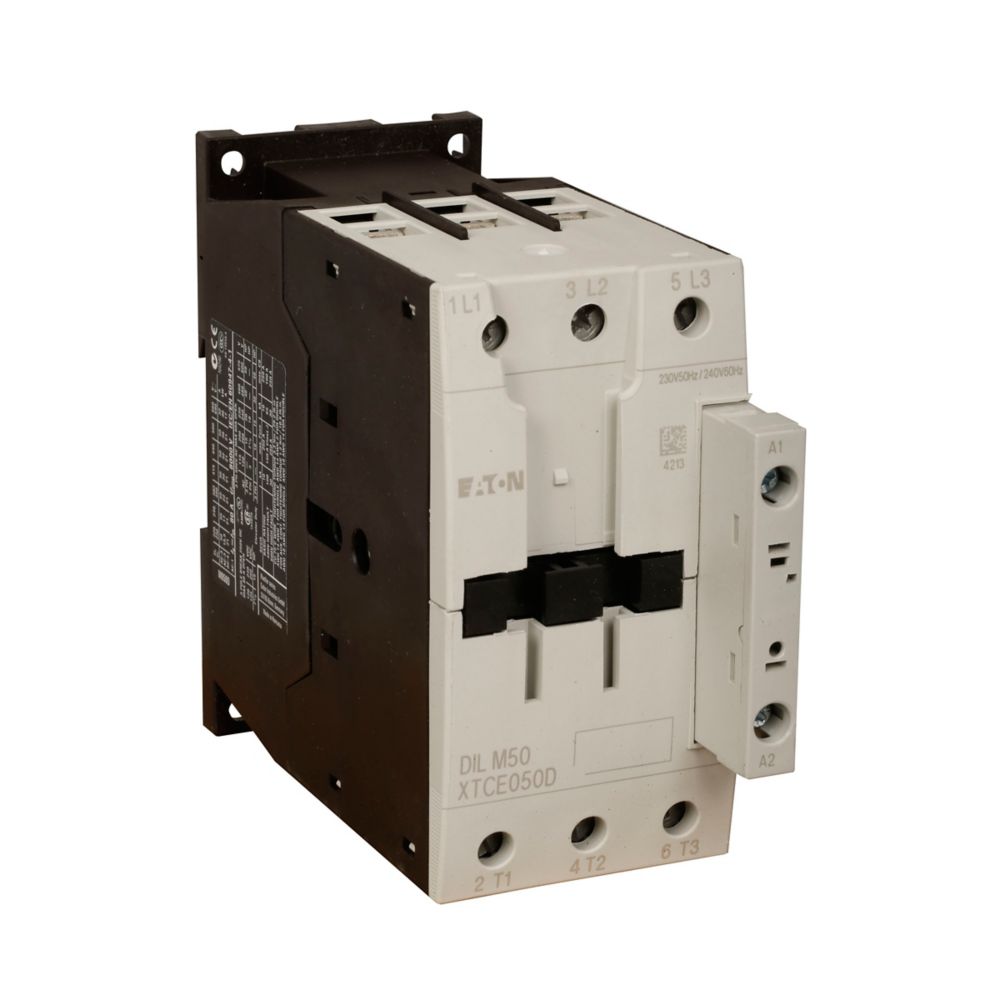

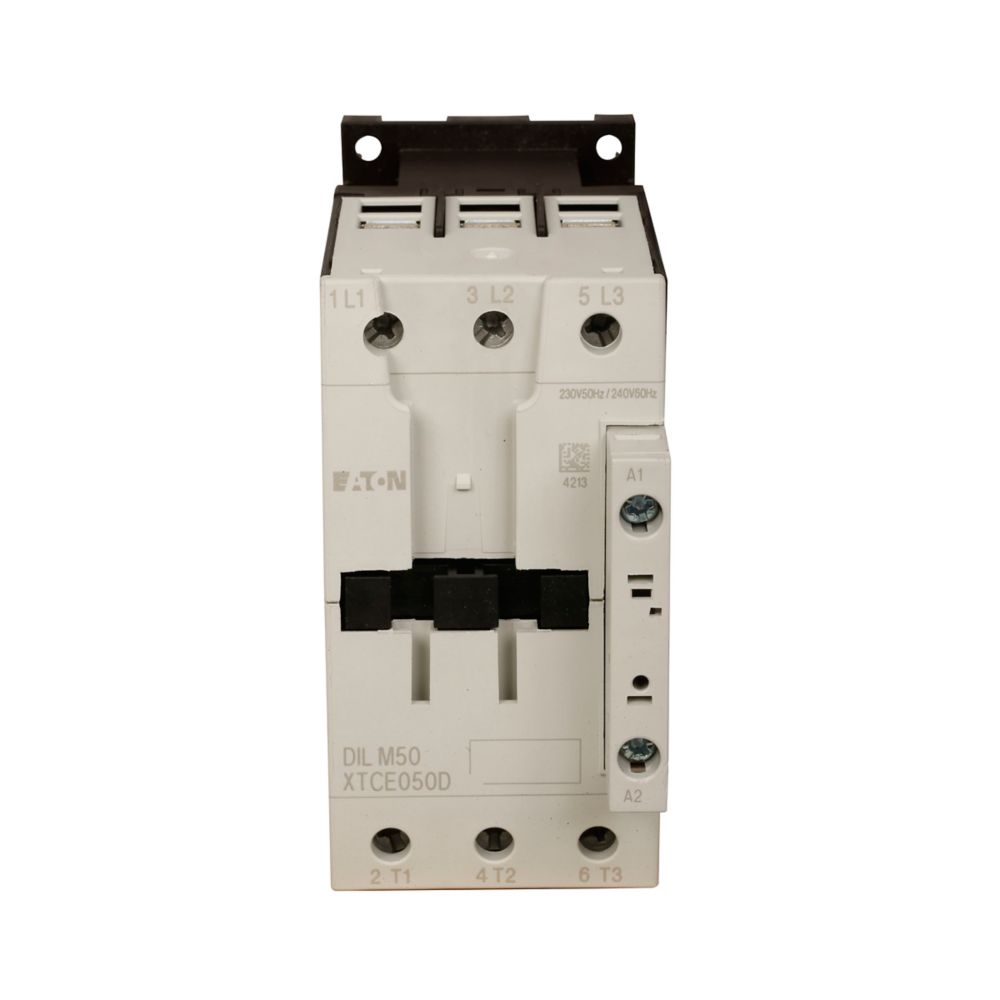

Product Specifications - XTCE050D00G - Eaton Cutler-Hammer Contactor
-
Part Number:
XTCE050D00G -
Manufacturer:
-
Family:
Series G -
Pole:
3 -
Amp:
50A -
Category:
-
Type:
Full voltage non-reversing contactor
-
HP Rating Max:
3, 7.5, 10/ 15, 20, 40, 50 hp (1/3PH @115,200,230/200,230,460,575 V) -
Frame Size:
55 mm -
Coil:
190-220 Vac 50/60 Hz -
Coil Voltage:
190-220 Vac 50/60 Hz -
Terminals:
Screw Terminal -
Frequency Rating:
50-60 Hz
Dimensions
-
Dimensions (HxWxD):
2.24 in x 5.95 in x 4.57 in -
Weight:
2.4 lb
Standards


Product Description - XTCE050D00G - Eaton Cutler-Hammer Contactor
Eaton XT IEC contactor, 50A, 190 Vac 50 Hz, 220 Vac 60 Hz, 0NO-0NC, 50A, Frame D, 55 mm, 50-60 Hz, 3, 7.5, 10/ 15, 20, 40, 50 hp (1/3PH @115, 200, 230/200, 230, 460, 575 V), Three-pole, Screw terminals, FVNR
