Product Warranty - XTCE015B10A - Eaton - Contactor
All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.
Overview
Product Specifications - XTCE015B10A - Eaton Cutler-Hammer Contactor
-
Part Number:
XTCE015B10A -
Manufacturer:
-
Family:
Series G -
Pole:
3 -
Amp:
15A -
Category:
-
Type:
Full voltage non-reversing contactor
-
HP Rating Max:
1, 2, 3/ 5, 5, 10, 10 hp (1/3PH @115,200,230/200,230,460,575 V) -
Frame Size:
45 mm -
Coil:
110-120 Vac, 50/60 Hz -
Coil Voltage:
110-120 Vac, 50/60 Hz -
Terminals:
screw terminals -
Frequency Rating:
50-60 Hz
Dimensions
-
Dimensions (HxWxD):
4.09 in x 5.48 in x 5.48 in -
Weight:
2.55 lb
Standards
Product Description - XTCE015B10A - Eaton Cutler-Hammer Contactor

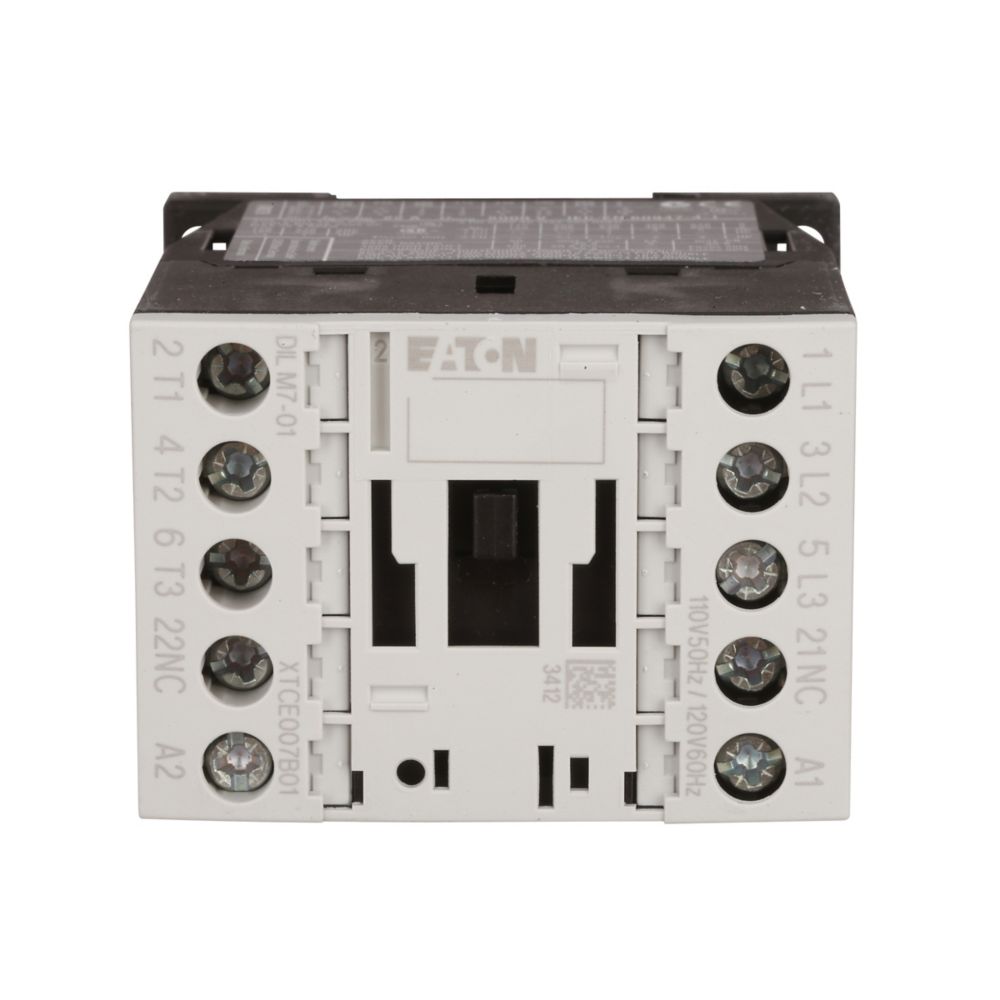

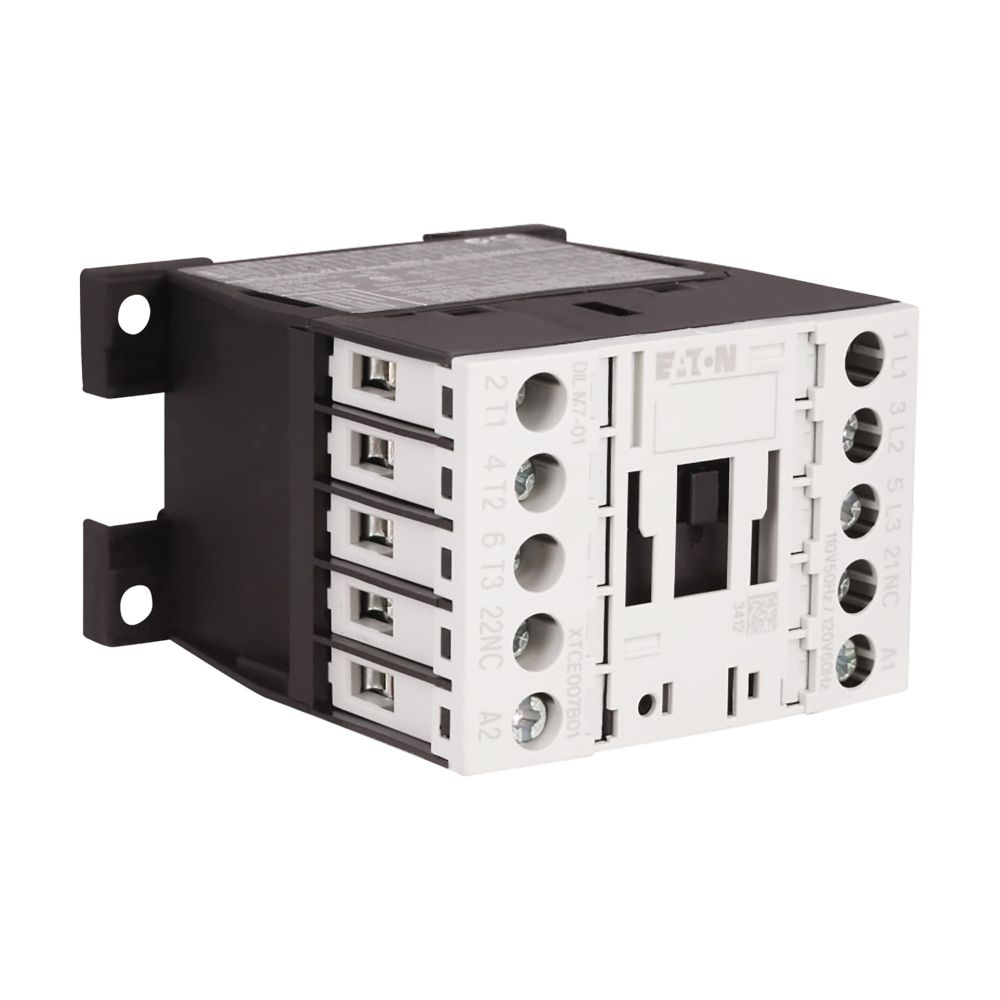

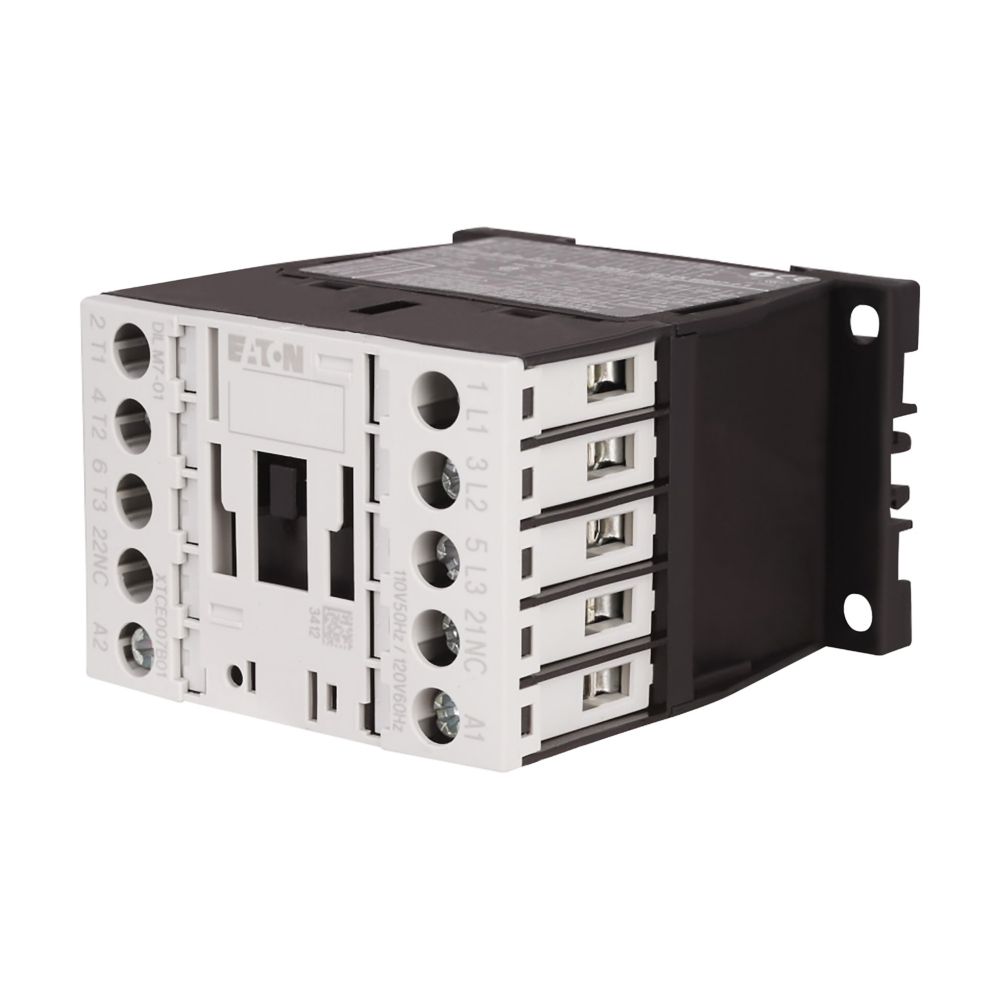

Eaton XT IEC contactor, 15A, 110 Vac 50 Hz, 120 Vac 60 Hz, 1NO, 15A, Frame B, 45 mm, 50-60 Hz, 1, 2, 3/ 5, 5, 10, 10 hp (1/3PH @115, 200, 230/200, 230, 460, 575 V), Three-pole, Non-reversing, Screw terminals, FVNR
