Product Warranty - DH366UGK - Eaton - Disconnect Switch
All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.
Overview
Product Specifications - DH366UGK - Eaton Disconnect Switch
-
Part Number:
eaton-600-amp-disconnect-switch-dh366ugk -
Manufacturer:
-
Family:
DH Series -
Pole:
3 -
Amp:
600 -
Volt:
600 -
Phase:
3
-
Category:
-
Type:
DH -
AIC Ratings:
100kA@480V
Dimensions
-
Dimensions (HxWxD):
14.07 in x 51.82 in x 25.01 in -
Weight:
140 lbs
Standards


Product Description - DH366UGK - Eaton Disconnect Switch

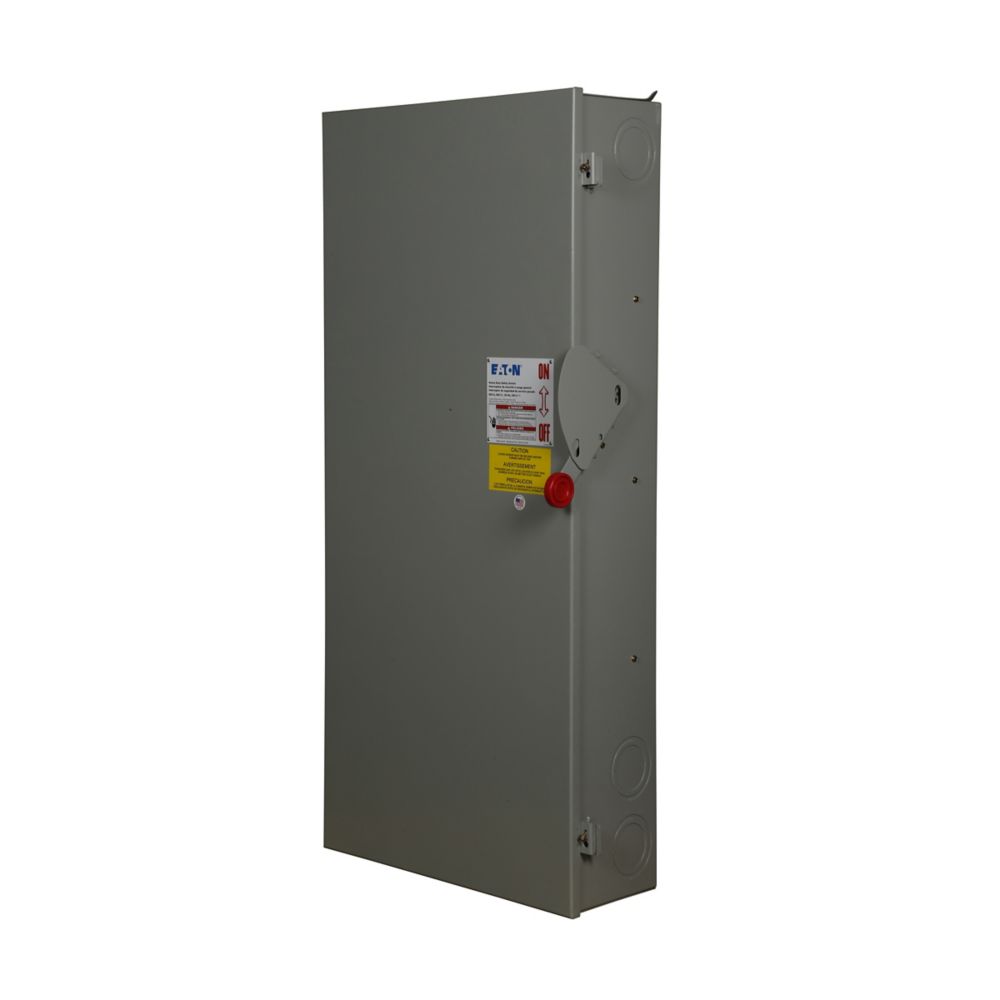

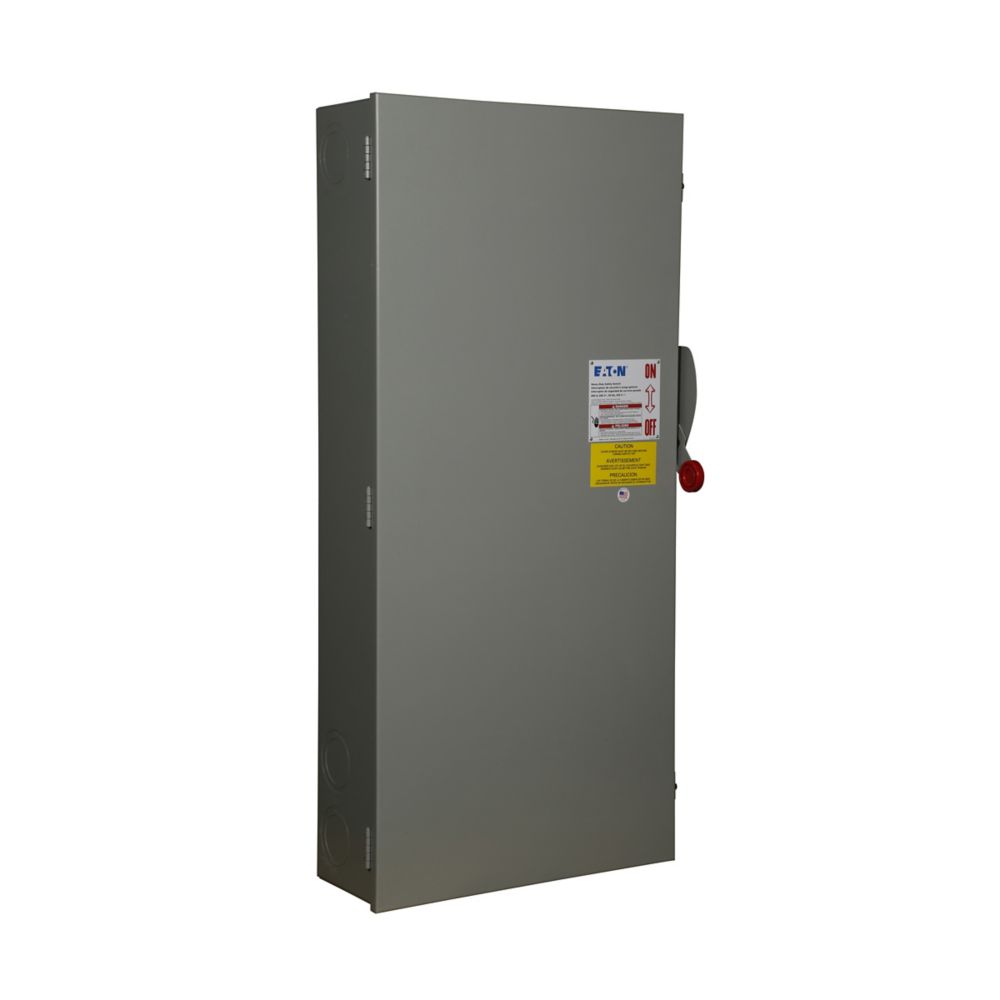

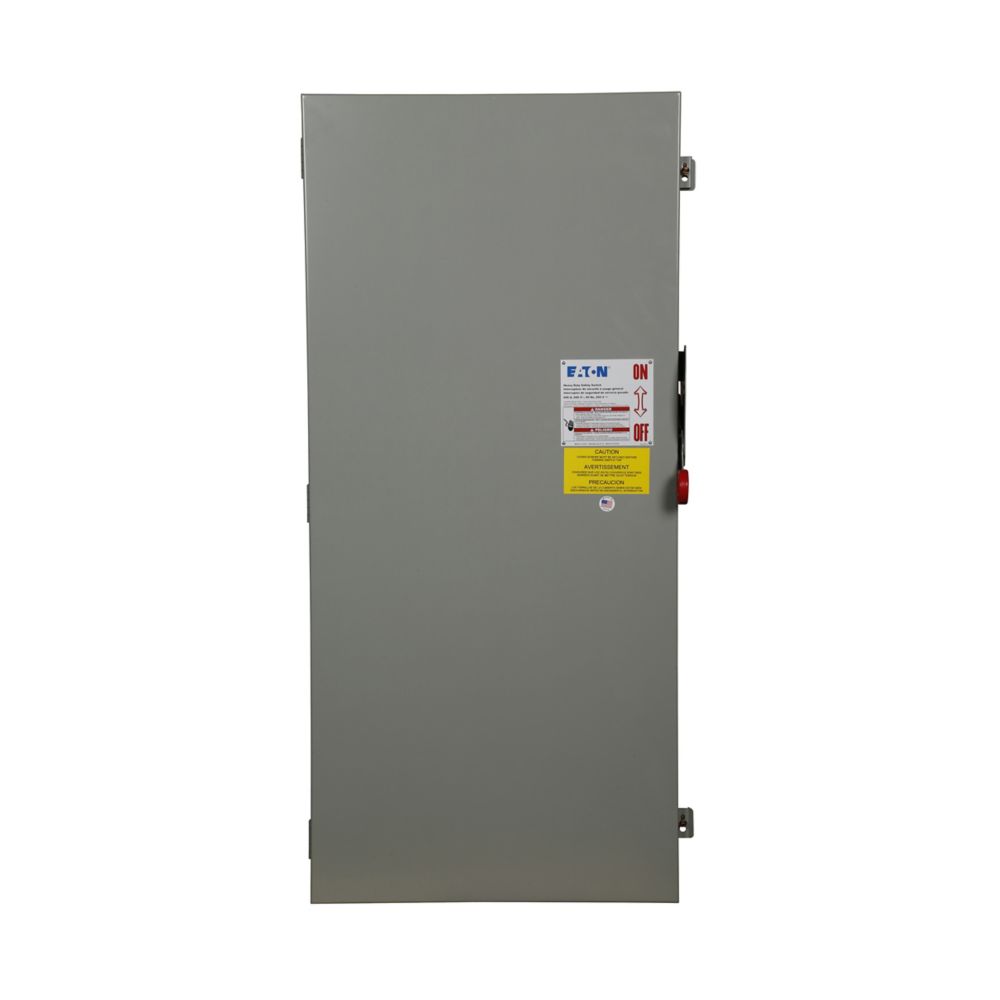

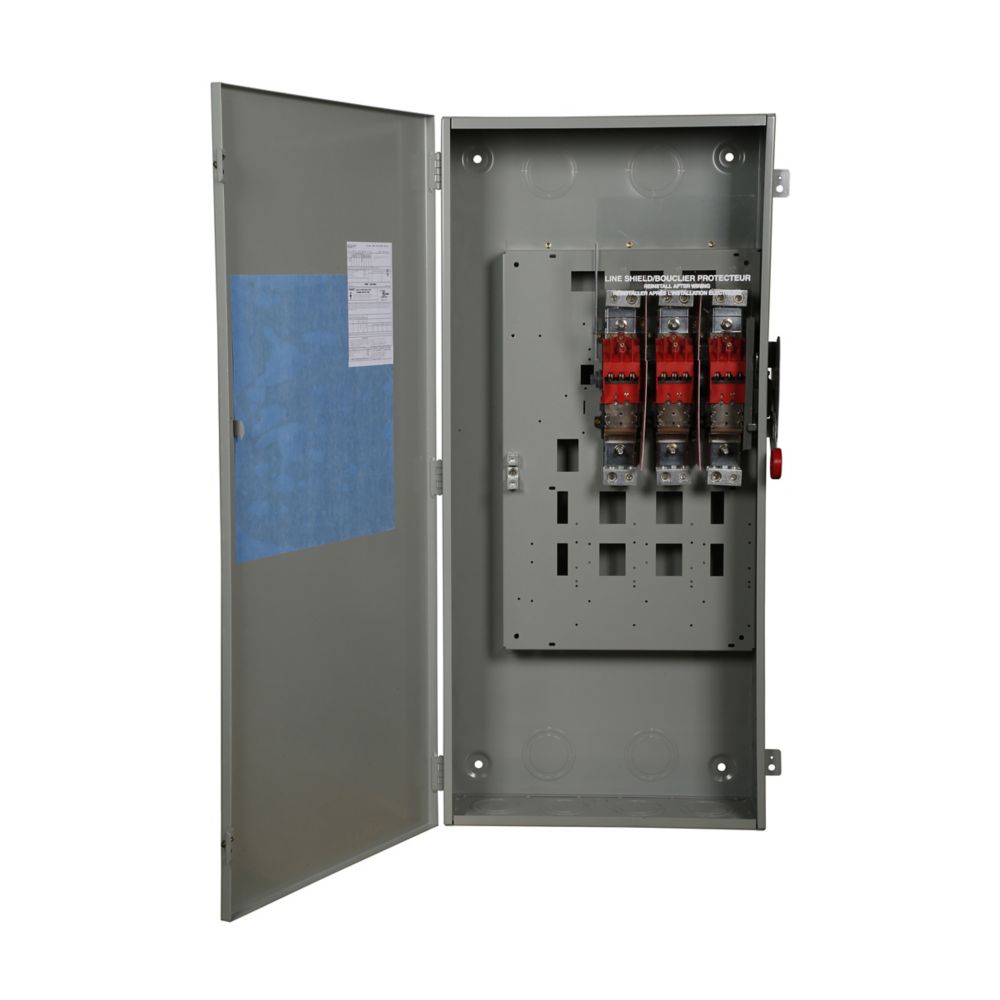

Eaton Heavy duty single-throw non-fused safety switch, Single-throw, 600 A, NEMA 1, Painted steel, Non-Fusible, Three-pole, Three-wire, 200 at 240 Vac TD 3 Ph, 400 at 480 Vac TD 3 Ph, 500 at 600 Vac TD 3 Ph
