Name: APL20467 - Crouse-Hinds - Plug
Brand: Crouse-Hinds
SKU: APL20467
Price: 2499.99 CAD
Availability: OutOfStock

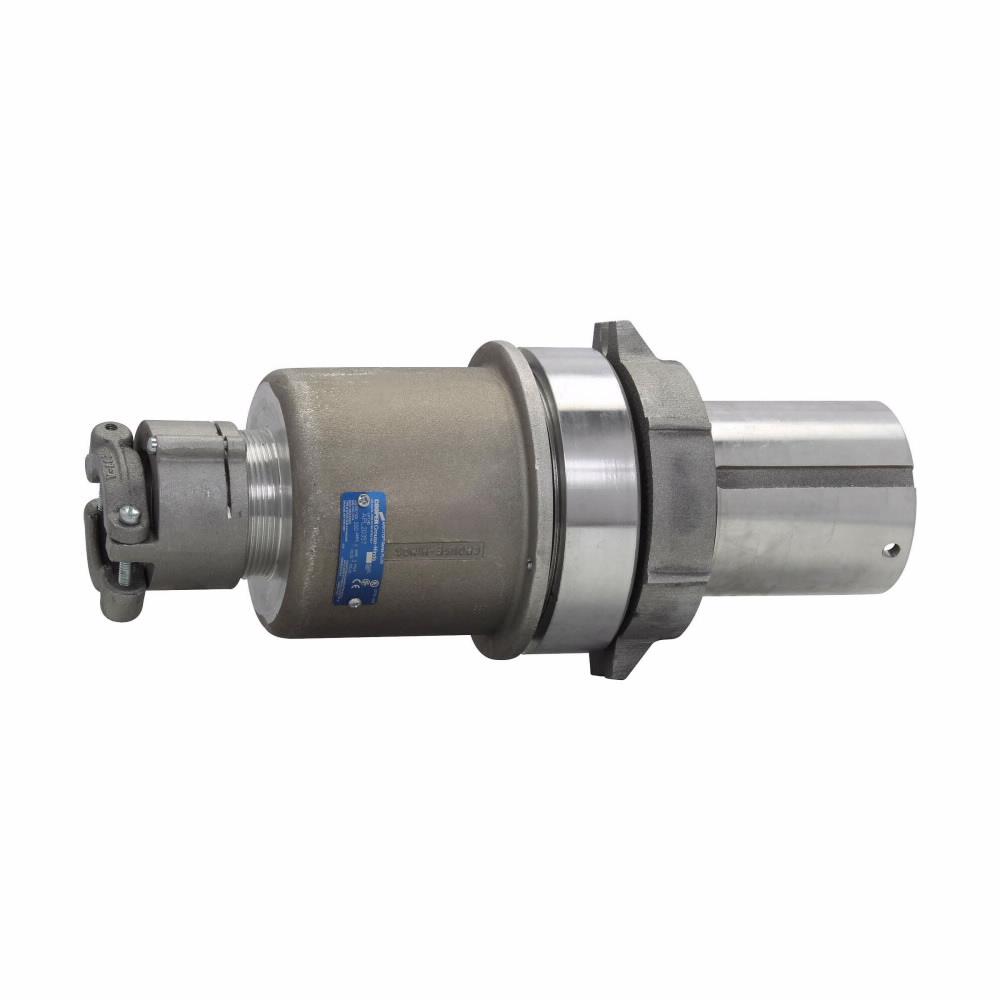

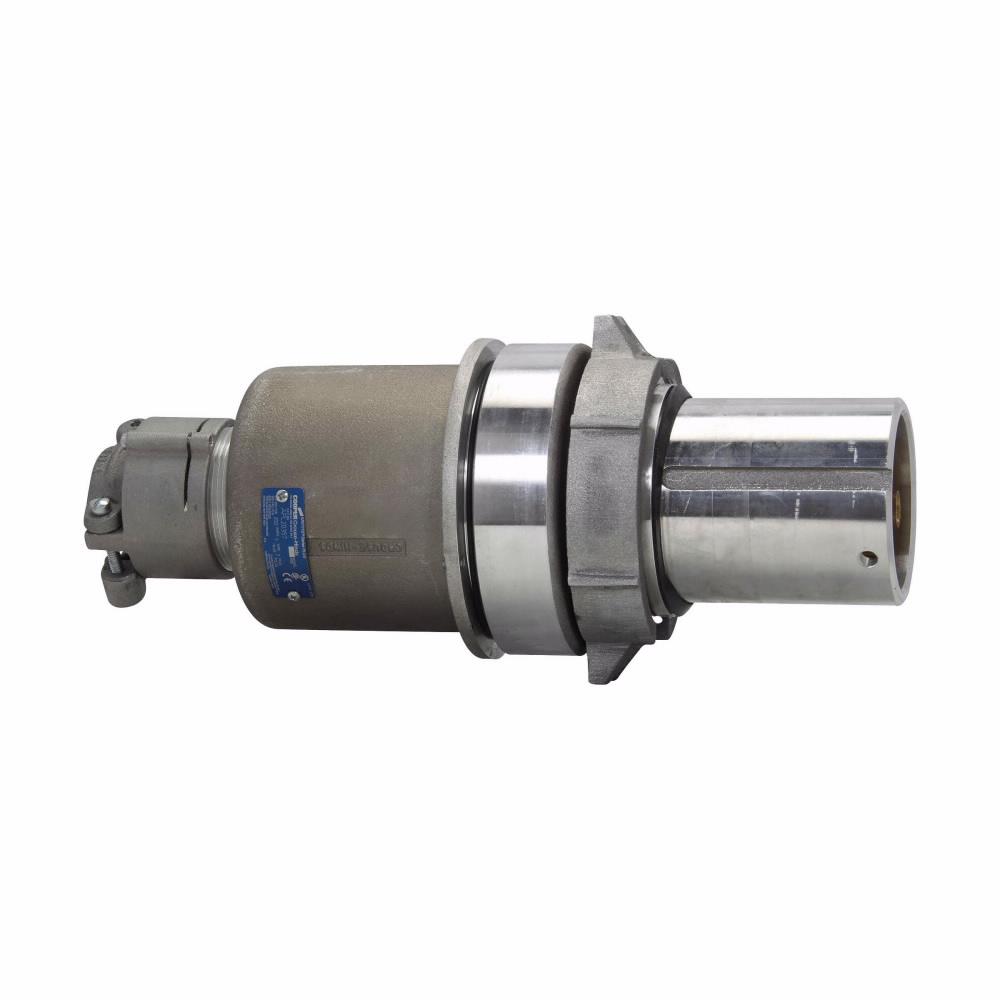

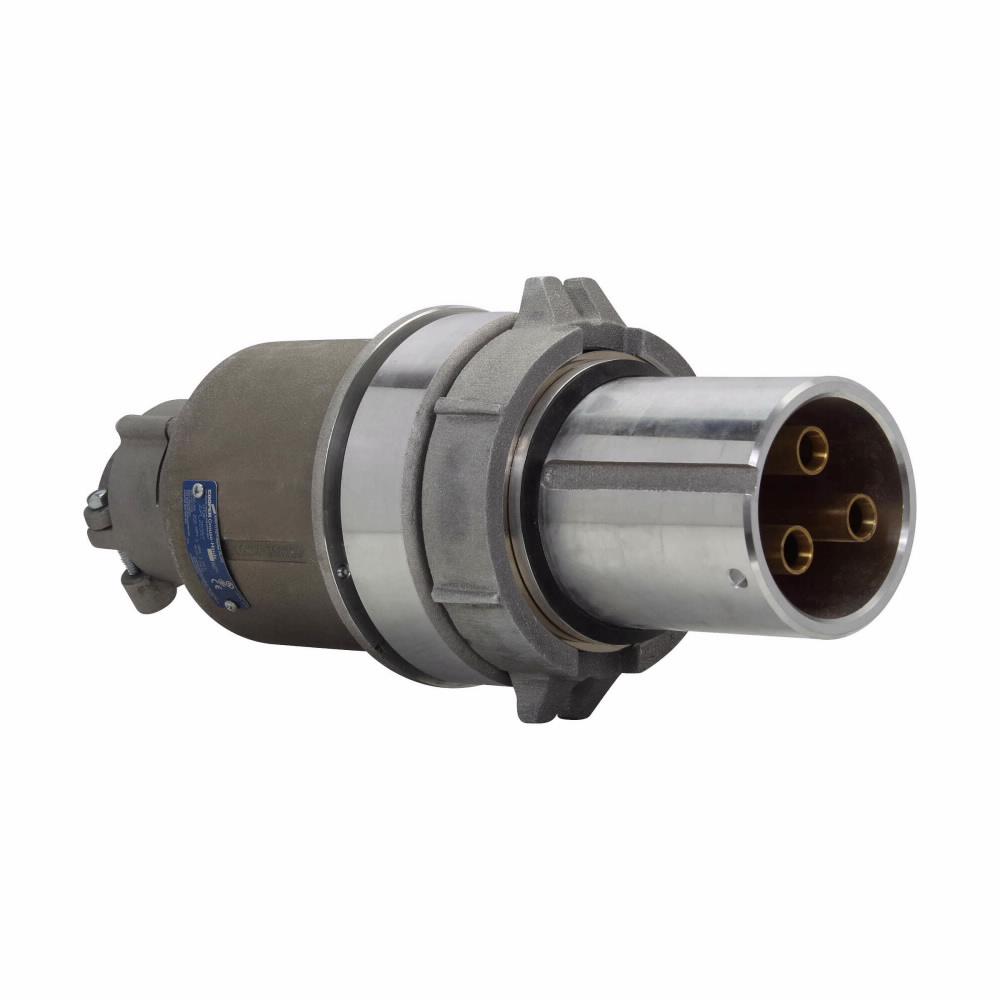

APL20467 - Crouse-Hinds 200 Amp 4 Pole 600 Volt Mechanical Lug Termination

Images are for reference only

Condition

New

Surplus (New with poor packaging)

Quantity

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":39618713387117,"title":"New","option1":"New","option2":null,"option3":null,"sku":"APL20467","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"APL20467 - Crouse-Hinds - Plug - New","public_title":"New","options":["New"],"price":249999,"weight":5897,"compare_at_price":null,"inventory_management":"shopify","barcode":"782274254067","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":39618713419885,"title":"Surplus (New with poor packaging)","option1":"Surplus (New with poor packaging)","option2":null,"option3":null,"sku":"APL20468","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"APL20467 - Crouse-Hinds - Plug - Surplus (New with poor packaging)","public_title":"Surplus (New with poor packaging)","options":["Surplus (New with poor packaging)"],"price":157499,"weight":5897,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - APL20467 - Crouse-Hinds - Plug

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

APL20467 - Crouse-Hinds Mechanical Lug Termination

Circuit breaking: plugs through 100 ampere rating may be disconnected under load; 150-400 ampere units are for service disconnect use only.Receptacles accept only plugs of the same amperage rating, style and number of poles, making it impossible to mismate, and provides for positive polarization.Extra wide electrical spacing allows for maximum safety.Insulator materials are the result of intensive testing. Selection has been made based on highest dielectric strength, maximum mechanical and impact resistance, lowest moisture absorption and highest arc tracking resistance.

A variety of installations is possible due to the availability of several types of back boxes.Designed to withstand rough usage and the effects of adverse environments.Reversible interiors, 30, 60 and 100 ampere (except 30 and 60 ampere, 5-pole) Arktite plug and receptacle interiors are interchangeable using a screwdriver. This makes it possible to feed a normally de-energized receptacle from an energized plug with usual Arktite safety; no energized contacts are exposed

Specifications:

Grounding Style: Style 2
Termination Style: Mechanical lug
Wire Well Size: 0.687"
Configuration: Three-wire, four-pole
Device Type: Plug
Material: Copper-free aluminum
Standards Type: NEC/CEC
Amperage Rating: 200A,
Cable Diameter: 1.375-1.875"
Nema Rating: 3R
Frequency Rating : 50-400 Hz
Area Clasification: Ordinary/Non-Hazardous Locations
Voltage Rating: 600 Vac, 250 Vdc:
Authentic Crouse-Hinds Product
